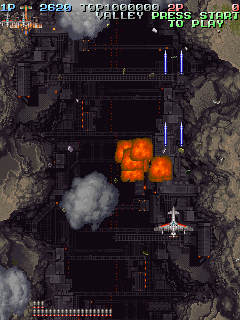

Battle Garegga (Zakk version, set 1) - mame (0.245.25) machine

MAME: 0.245.25 - Released: 1601-01-01T00:00:00 - Lists: 2 - Software: 266 - rom: 266 - disk: 0

machine

• XML • JSON • AO

name	sourcefile	cloneof	romof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	sampleof
bgaregga01	toaplan2.cpp	bgaregga	bgaregga	no	no	no	yes	Battle Garegga (Zakk version, set 1)	2008	Zack

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	240	59.637405	6750000	432	0	320	262	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
s01.prg0z	524288	6f4af466	fb77f3b86c0b25941ae0efe70ca779d06f66f02b	maincpu	0	good	no
s01.prg1z	524288	b4dc9a48	9310a8c1de2a64e5597206a9974f25351d7825c2	maincpu	1	good	no
snd.bin	131072	68632952	fb834db83157948e2b420b6051102a9c6ac3969b	audiocpu	0	good	no	snd.bin
rom4.bin	2097152	b333d81f	5481465f1304334fd55798be2f44324c57c2dbcb	gp9001_0	0	good	no	rom4.bin
rom3.bin	2097152	51b9ebfb	30e0c326f5175aa436df8dba08f6f4e08130b92f	gp9001_0	200000	good	no	rom3.bin
rom2.bin	2097152	b330e5e2	5d48e9d56f99d093b6390e0af1609fd796df2d35	gp9001_0	400000	good	no	rom2.bin
rom1.bin	2097152	7eafdd70	7c8da8e86c3f9491719b1d7d5d285568d7614f38	gp9001_0	600000	good	no	rom1.bin
text.u81	32768	e67fd534	987d0edffc2c243a13d4567319ea3d185eaadbf8	text	0	good	no	text.u81
rom5.bin	1048576	f6d49863	3a3c354852adad06e8a051511abfab7606bce382	oki1	40000	good	no	rom5.bin

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
cpu	audiocpu	Zilog Z80	4000000
audio	mono	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	oki1	OKI MSM6295 ADPCM	2000000

device_ref

name
m68000
z80
screen
gfxdecode
palette
gp9001vdp
buffered_spriteram16
speaker
generic_latch_8
ym2151
okim6295

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	ways	reverse	buttons	minimum	maximum	sensitivity	keydelta	ways2	reqbuttons
joy	1	8	no	3
joy	2	8	no	3

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:IN1
:IN2
:JMPR
:SYS

configuration

Region

name	tag	mask
Region	JMPR	3

setting

name	value	default
Europe (Tuning)	1	yes
USA (Fabtek)	2	no
Japan	0	no
Asia	3	no

dipswitch

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	1

location

name	number	inverted
SW1	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Credits to Start

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits to Start	DSWA	2

location

name	number	inverted
SW1	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
2	2	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSWA	28

location

name	number	inverted
SW1	3	yes
SW1	4	yes
SW1	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	24	no
3 Coins/1 Credit	20	no
2 Coins/1 Credit	16	no
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	4	no
1 Coin/3 Credits	8	no
1 Coin/4 Credits	12	no
Free Play	28	no

Joystick Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Joystick Mode	DSWA	32	DSWA	28	eq	28

location

name	number	inverted
SW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
90 degrees ACW	0	yes	DSWA	28	eq	28
Normal	32	no	DSWA	28	eq	28

Effect

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Effect	DSWA	64	DSWA	28	eq	28

location

name	number	inverted
SW1	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes	DSWA	28	eq	28
On	64	no	DSWA	28	eq	28

Music

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Music	DSWA	128	DSWA	28	eq	28

location

name	number	inverted
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes	DSWA	28	eq	28
On	128	no	DSWA	28	eq	28

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSWA	224	DSWA	28	ne	28

location

name	number	inverted
SW1	6	yes
SW1	7	yes
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	192	no	DSWA	28	ne	28
3 Coins/1 Credit	160	no	DSWA	28	ne	28
2 Coins/1 Credit	128	no	DSWA	28	ne	28
1 Coin/1 Credit	0	yes	DSWA	28	ne	28
1 Coin/2 Credits	32	no	DSWA	28	ne	28
1 Coin/3 Credits	64	no	DSWA	28	ne	28
1 Coin/4 Credits	96	no	DSWA	28	ne	28

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW2	1	yes
SW2	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	1	no
Normal	0	yes
Hard	2	no
Very Hard	3	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWB	4

location

name	number	inverted
SW2	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWB	8

location

name	number	inverted
SW2	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSWB	112

location

name	number	inverted
SW2	5	yes
SW2	6	yes
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	48	no
2	32	no
3	0	yes
4	16	no
5	64	no
6	80	no
Infinite	96	no
Invulnerability (Cheat)	112	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSWB	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
None	0	yes	JMPR	3	ne	0
Every 2000k	128	no	JMPR	3	ne	0
1000k and 2000k	128	no	JMPR	3	eq	0
Every 1000k	0	yes	JMPR	3	eq	0

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	JMPR	4

location

name	number	inverted
SW3	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes

Stage Edit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stage Edit	JMPR	8

location

name	number	inverted
SW3	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	SYS	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no
