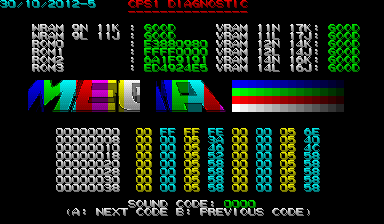

CPS1 Diagnostic (For megaman, 2012-10-30) - mame (0.245.25) machine

MAME: 0.245.25 - Released: 1601-01-01T00:00:00 - Lists: 2 - Software: 266 - rom: 266 - disk: 0

machine

• XML • JSON • AO

name	sourcefile	cloneof	romof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	sampleof
cps1testm	cps1mis.cpp	megaman	megaman	no	no	no	yes	CPS1 Diagnostic (For megaman, 2012-10-30)	2012	Cal2

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	224	59.637405	8000000	512	64	448	262	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
c35test.p1	524288	35a39adb	dcb93102108a02f1f169833cfd355bd492cd9065	maincpu	0	good	no
c35.p2	524288	708268c4	554e011cad285b95dd1b6aa19be61b2413662a3a	maincpu	80000	good	no	c35.p2
c35.p3	524288	4376ea95	7370ceffca513aa9f68a74f6869d561476589200	maincpu	100000	good	no	c35.p3
c35.c01	524288	6ecdf13f	2a8fe06bf5011e3f990f90d9224f91d8631ec0cc	gfx	0	good	no	c35.c01
c35.c02	524288	944d4f0f	665dc9a537e9c9b565f6136f939ff5c2861f875f	gfx	2	good	no	c35.c02
c35.c03	524288	36f3073c	457d68e63599d06a136e152a9ad60adac1c91edd	gfx	4	good	no	c35.c03
c35.c04	524288	54e622ff	36f6297e3d410f041be5e582919478b0d52520ca	gfx	6	good	no	c35.c04
c35.c05	524288	5dd131fd	1a7fc8cf38901245d40901996e946e7ad9c0e0c5	gfx	200000	good	no	c35.c05
c35.c06	524288	f0faf813	adff01c2ecc4c8ce6f8a50cbd07d8f8bb9f48168	gfx	200002	good	no	c35.c06
c35.c07	524288	826de013	47f36b1d92a487c43c8dadc8293b8e6f40649286	gfx	200004	good	no	c35.c07
c35.c08	524288	fbff64cf	f0cb531ef195dc1dcd224a208906a62fb5d199a1	gfx	200006	good	no	c35.c08
c35.c09	524288	4dc8ada9	776c2b3ef24c2b8f390c05a9c6728b14ceec696e	gfx	400000	good	no	c35.c09
c35.c10	524288	f2b9ee06	db315b00d1caed1a8c0f6e0ae726e8fa05b011fa	gfx	400002	good	no	c35.c10
c35.c11	524288	fed5f203	23db14490519b5e2d0bb92ffe6e14540d1999e4b	gfx	400004	good	no	c35.c11
c35.c12	524288	5069d4a9	b832b98be94371af52bd4bb911e18ec57430a7db	gfx	400006	good	no	c35.c12
c35.c13	524288	303be3bd	1e5c3fd71966ea9f457840c40582795b501c323e	gfx	600000	good	no	c35.c13
c35.c14	524288	4f2d372f	db6a94d1f92c1b96e404b38ebcb1eedbec3ae6cc	gfx	600002	good	no	c35.c14
c35.c15	524288	93d97fde	e4be5216f98ad08a9118d629d398be2bd54e2e2a	gfx	600004	good	no	c35.c15
c35.c16	524288	92371042	c55833cbaddcc986edd23c009a3e3c7ff09c2708	gfx	600006	good	no	c35.c16
c35.m1	65536	22ac8f5f	d1441d880f98034645cb4fcecd7bb746bde638af	audiocpu	0	good	no	c35.m1
c35.v1	131072	80f1f8aa	4a5b7b2a6941ad68da7472c63362c7bcd353fa54	oki	0	good	no	c35.v1
c35.v2	131072	f257dbe1	967def6b6f93039dbc46373caabeb3301577be75	oki	20000	good	no	c35.v2
megaman.key	128	9c89eb62	e67a3ed58f82875cff4861c14bd701b54dcc111f	control	0	good	no	megaman.key

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12000000
cpu	audiocpu	Zilog Z80	3579545
audio	mono	Speaker
audio	2151	YM2151 OPM	3579545
audio	oki	OKI MSM6295 ADPCM	1000000

device_ref

name
m68000
z80
screen
gfxdecode
palette
speaker
generic_latch_8
generic_latch_8
ym2151
okim6295

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	ways	reverse	buttons	minimum	maximum	sensitivity	keydelta	ways2	reqbuttons
joy	1	8	no	3
joy	2	8	no	3

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:DSWC
:IN0
:IN1

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSWA	31

location

name	number	inverted
SW(A)	1	no
SW(A)	2	no
SW(A)	3	no
SW(A)	4	no
SW(A)	5	no

value

name	value	default
9 Coins/1 Credit	15	no
8 Coins/1 Credit	16	no
7 Coins/1 Credit	17	no
6 Coins/1 Credit	18	no
5 Coins/1 Credit	19	no
4 Coins/1 Credit	20	no
3 Coins/1 Credit	21	no
2 Coins/1 Credit	22	no
2 Coins to Start, 1 to Continue	14	no
1 Coin/1 Credit	31	yes
1 Coin/2 Credits	30	no
1 Coin/3 Credits	29	no
1 Coin/4 Credits	28	no
1 Coin/5 Credits	27	no
1 Coin/6 Credits	26	no
1 Coin/7 Credits	25	no
1 Coin/8 Credits	24	no
1 Coin/9 Credits	23	no
Free Play	13	no

Coin slots

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin slots	DSWA	96

location

name	number	inverted
SW(A)	6	no
SW(A)	7	no

value

name	value	default
1, Common	32	no
2, Common	96	yes
2, Individual	64	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWA	128

location

name	number	inverted
SW(A)	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW(B)	1	no
SW(B)	2	no

value

name	value	default
Easy	3	no
Normal	2	yes
Hard	1	no
Hardest	0	no

Time

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time	DSWB	12

location

name	number	inverted
SW(B)	3	no
SW(B)	4	no

value

name	value	default
100	12	yes
90	8	no
70	4	no
60	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWB	16

location

name	number	inverted
SW(B)	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWB	32

location

name	number	inverted
SW(B)	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Voice

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Voice	DSWB	64

location

name	number	inverted
SW(B)	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWB	128

location

name	number	inverted
SW(B)	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWC	1

location

name	number	inverted
SW(C)	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWC	2

location

name	number	inverted
SW(C)	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSWC	4

location

name	number	inverted
SW(C)	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	4	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWC	8

location

name	number	inverted
SW(C)	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWC	16

location

name	number	inverted
SW(C)	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWC	32

location

name	number	inverted
SW(C)	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWC	64

location

name	number	inverted
SW(C)	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Game Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Mode	DSWC	128

location

name	number	inverted
SW(C)	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Game	128	yes
Test	0	no
