hbmame (0.289.2) • machine umk3tm20210809 • Ultimate Mortal Kombat 3 (Team Edition, 2021-08-09)

machine

• XML • JSON • RUN

name	sourcefile	cloneof	romof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	sampleof
umk3tm20210809	hbmame/drivers/midwunit.cpp	umk3	umk3	no	no	no	yes	Ultimate Mortal Kombat 3 (Team Edition, 2021-08-09)	2021	TEAM UMK 3

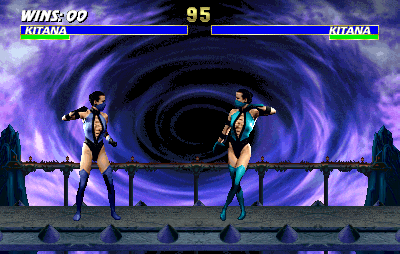

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
umk3tm20210809	55481	14/03/2026 21:56:33	400	254	96	96	0	Format24bppRgb	305:HBMAME 0.245.31 (2026-03-01)	a853a9ec9f2b0780231f425aa280fdd3e06ba427

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	400	254	54.706840	8000000	506	101	501	289	20	274	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
463_mk3_ultimate.u64	4105	4f425218	7f26045ed2c9ca94fadcb673ce10f28208aa720e	serial_security:pic	0	good	no	463_mk3_ultimate.u64
l1_mortal_kombat_3_u126_game_rom.u126	1048576	e7c32cf4	94ea7b2eed7dae66f5dd676c20d6b360140e3e0e	video	400003	good	no	l1_mortal_kombat_3_u126_game_rom.u126
l1_mortal_kombat_3_u127_game_rom.u127	1048576	bd985be7	f5183abea2e5eb2c2c8cefa72c9ed321679f5128	video	400002	good	no	l1_mortal_kombat_3_u127_game_rom.u127
l1_mortal_kombat_3_u128_game_rom.u128	1048576	b410d72f	ac5c1c6f744186540f4ab100d9bd4ce6007e600b	video	400001	good	no	l1_mortal_kombat_3_u128_game_rom.u128
l1_mortal_kombat_3_u129_game_rom.u129	1048576	a8b41803	9697e35e8bb51d6d36b1d7ae47377b446e57682f	video	400000	good	no	l1_mortal_kombat_3_u129_game_rom.u129
l1_mortal_kombat_3_u3_music_spch.u3	1048576	856fe411	6165ebecfce7500e948d84492ffa19eed7f47091	dcs	200000	good	no	l1_mortal_kombat_3_u3_music_spch.u3
l1_mortal_kombat_3_u4_music_spch.u4	1048576	428a406f	e70ec83cd054de0da1e178720ed0035b8887f797	dcs	400000	good	no	l1_mortal_kombat_3_u4_music_spch.u4
l1_mortal_kombat_3_u5_music_spch.u5	1048576	3b98a09f	edf1d02a56dcf3349e6b4bb4097acfe7592305f4	dcs	600000	good	no	l1_mortal_kombat_3_u5_music_spch.u5
l2.0_mortal_kombat_3_u2_ultimate.u2	1048576	3838cfe5	e3d2901f3bae1362742fc6ee0aa31c9f63b4dfa3	dcs	0	good	no	l2.0_mortal_kombat_3_u2_ultimate.u2
tm20190417.u110	1048576	271e2922	9ce72cb7ee1095481f359b7dd85c0dc65f9ec79d	video	1400003	good	no
tm20190417.u111	1048576	7c7fd457	9acb7a668f1ee9e6b56cc2812e51a3cc277c46ce	video	1400002	good	no
tm20190417.u112	1048576	a1470fe9	8c109723416513d220031a600ba8191d6532dd93	video	1400001	good	no
tm20190417.u113	1048576	2a3ed57e	6ceca87b31448c539acd48921f7b61c13dc9c279	video	1400000	good	no
tm20190417.u118	1048576	03319743	dd085aef96daf250a42fb0d69fe38d431e22fb15	video	c00003	good	no
tm20190417.u119	1048576	3bb9cc20	168847bf52b73c1e595c05cc9308a6605b937ea8	video	c00002	good	no
tm20190417.u120	1048576	46e54f10	95437f6a49cdf40fb3212b2ff81a956bc644592a	video	c00001	good	no
tm20190417.u121	1048576	e70dcbc4	072ecfbd0feb3de506159baab8b132814b343566	video	c00000	good	no
tm20190417.u122	1048576	629bf47c	d0a5e3ec3e4063f1318068f3bf76651738f8e96d	video	800003	good	no
tm20190417.u123	1048576	71e7773e	52d1d802e09d365d6c6e6f78a95d4eef32d653ec	video	800002	good	no
tm20190417.u124	1048576	3169adfb	4020d432541a0eb098120e0de856da11c6198d60	video	800001	good	no
tm20190417.u125	1048576	352d8d92	18781a76a0d558f96e65ab0950cf78a0358d672c	video	800000	good	no
tm20210809.u114	1048576	8e3461c1	5637320b534ba603b4b44365056ad1adb10e2468	video	1000003	good	no
tm20210809.u115	1048576	910ba00c	62619f28563a41e74d1e37a1df39037ba709924a	video	1000002	good	no
tm20210809.u116	1048576	55ec2afd	925f58522ea4747cd2025b0eb92c0c64c3a7cdcc	video	1000001	good	no
tm20210809.u117	1048576	1f173349	59dc244a306b30545995872cf21fcf3c4655149f	video	1000000	good	no
tm20210809.u54	524288	bb440df4	b4eaaecebbec5ce097dbf945aaf261ad7811a545	maincpu	0	good	no
tm20210809.u63	524288	cad75d26	61f326042024d98e8efbac93bbdb17562a07425e	maincpu	1	good	no
uc20181023.u130	1048576	ecf63628	3efeda0a59f110e6ab17247b1fed7965291ec885	video	3	good	no
uc20181023.u131	1048576	483cbc7b	39d03642ea62f8623b76ecf084a390db7c366dcd	video	2	good	no
uc20181023.u132	1048576	87d977dc	3bd6ded7c212621c3f45e29fa90a19b1c7abaac6	video	1	good	no
uc20181023.u133	1048576	62c6f8ab	cfe77e21cb25b4513411658051b849e3c0dd728c	video	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS34010	50000000
cpu	dcs:dcs	Analog Devices ADSP-2105	10000000
cpu	serial_security:pic	Microchip PIC16C57	4000000
audio	mono	Speaker
audio	dcs	DCS Audio 8K
audio	dcs:dac	DMA-driven DAC

device_ref

tag	name
:video	wunitvid
:maincpu	tms34010
:nvram	nvram
:palette	palette
:screen	screen
:mono	speaker
:dcs	dcs_audio_8k
:dcs:dcs	adsp2105
:dcs:dcs_reg_timer	timer
:dcs:dcs_int_timer	timer
:dcs:dac	dmadac
:serial_security	midway_serial_pic_emu
:serial_security:pic	pic16c57

sound

channels
1

input

players	coins	service	tilt
2	4	yes	yes

control

type	player	ways	reverse	buttons	minimum	maximum	sensitivity	keydelta	ways2
joy	1	8	no	6
joy	2	8	no	6

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2

dipswitch

Test Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test Switch	DSW	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Counters

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Counters	DSW	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
One	2	no
Two	0	yes

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	124

value

name	value	default
USA-1	124	yes
USA-2	60	no
USA-3	92	no
USA-4	28	no
USA-ECA	108	no
USA-Free Play	12	no
German-1	116	no
German-2	52	no
German-3	84	no
German-4	20	no
German-5	100	no
German-ECA	36	no
German-Free Play	4	no
French-1	120	no
French-2	56	no
French-3	88	no
French-4	24	no
French-ECA	104	no
French-Free Play	8	no

Coinage Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage Source	DSW	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Dipswitch	128	no
CMOS	0	yes

Powerup Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Powerup Test	DSW	512

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	512	no

Bill Validator

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bill Validator	DSW	1024

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

Attract Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Attract Sound	DSW	4096

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4096	yes

Blood

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Blood	DSW	16384

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16384	yes

Violence

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Violence	DSW	32768

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32768	yes
