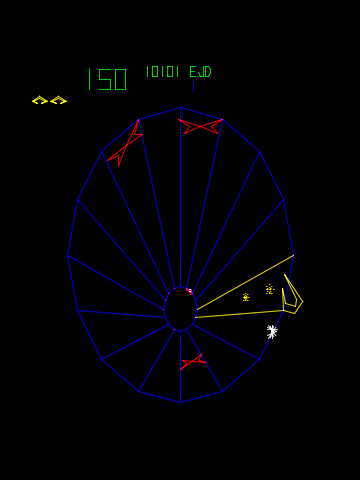

Tempest (rev 3, Revised Hardware) - mame (0.245.25) machine

MAME: 0.245.25 - Released: 1601-01-01T00:00:00 - Lists: 2 - Software: 266 - rom: 266 - disk: 0

machine

• XML • JSON • AO

name	sourcefile	cloneof	romof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	sampleof
tempest	tempest.cpp			no	no	no	yes	Tempest (rev 3, Revised Hardware)	1980	Atari

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	vector	270			60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
136002-133.d1	4096	1d0cc503	7bef95db9b1102d6b1166bda0ccb276ef4cc3764	maincpu	9000	good	no
136002-134.f1	4096	c88e3524	89144baf1efc703b2336774793ce345b37829ee7	maincpu	a000	good	no
136002-235.j1	4096	a4b2ce3f	a5f5fb630a48c5d25346f90d4c13aaa98f60b228	maincpu	b000	good	no
136002-136.lm1	4096	65a9a9f9	73aa7d6f4e7093ccb2d97f6344f354872bcfd72a	maincpu	c000	good	no
136002-237.p1	4096	de4e9e34	04be074e45bf5cd95a852af97cd04e35b7f27fc4	maincpu	d000	good	no
136002-138.np3	4096	9995256d	2b725ee1a57d423c7d7377a1744f48412e0f2f69	vectorrom	0	good	no
136002-125.d7	256	5903af03	24bc0366f394ad0ec486919212e38be0f08d0239	avg:prom	0	good	no
136002-126.a1	32	8b04f921	317b3397482f13b2d1bc21f296d3b3f9a118787b	user2	0	good	no
136002-132.l1	256	2af82e87	3816835a9ccf99a76d246adf204989d9261bb065	user3	0	good	no
136002-131.k1	256	b31f6e24	ce5f8ca34d06a5cfa0076b47400e61e0130ffe74	user3	0	good	no
136002-130.j1	256	8119b847	c4fbaedd4ce1ad6a4128cbe902b297743edb606a	user3	1	good	no
136002-129.h1	256	09f5a4d5	d6f2ac07ca9ee385c08831098b0dcaf56808993b	user3	1	good	no
136002-128.f1	256	823b61ae	d99a839874b45f64e14dae92a036e47a53705d16	user3	2	good	no
136002-127.e1	256	276eadd5	55718cd8ec4bcf75076d5ef0ee1ed2551e19d9ba	user3	2	good	no

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	1512000
cpu	pokey1	Atari C012294 POKEY	1512000
cpu	pokey2	Atari C012294 POKEY	1512000
audio	mono	Speaker
audio	pokey1	Atari C012294 POKEY	1512000
audio	pokey2	Atari C012294 POKEY	1512000

device_ref

name
m6502
watchdog
er2055
vector_device
screen
avg_tempest
mathbox
speaker
pokey
pokey

sound

channels
1

input

players	coins	service	tilt
2	3	no	yes

control

type	player	ways	reverse	buttons	minimum	maximum	sensitivity	keydelta	ways2	reqbuttons
dial	1		no	2	0	240	100	20
dial	2		no	2	0	15	100	20

port, analog

port_tag	analog_masks
:BUTTONSP1
:BUTTONSP2
:DSW1
:DSW2
:IN0
:IN1_DSW0
:IN2
:KNOBP1	15
:KNOBP2	15

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	3

location

name	number	inverted
N13	8	no
N13	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	1	no
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	3	no
Free Play	2	no

Right Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Right Coin	DSW1	12

location

name	number	inverted
N13	6	no
N13	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
*1	0	yes
*4	4	no
*5	8	no
*6	12	no

Left Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Left Coin	DSW1	16

location

name	number	inverted
N13	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
*1	0	yes
*2	16	no

Bonus Coins

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Coins	DSW1	224

location

name	number	inverted
N13	3	no
N13	2	no
N13	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
None	0	yes
1 each 5	128	no
1 each 4 (+Demo)	64	no
1 each 3	160	no
2 each 4 (+Demo)	96	no
1 each 2	32	no
Freeze Mode	192	no
Freeze Mode	224	no

Minimum

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum	DSW2	1

location

name	number	inverted
L12	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Credit	0	yes
2 Credit	1	no

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DSW2	6

location

name	number	inverted
L12	7	no
L12	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	0	yes
French	2	no
German	4	no
Spanish	6	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	56

location

name	number	inverted
L12	5	no
L12	4	no
L12	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10000	8	no
20000	0	yes
30000	16	no
40000	24	no
50000	32	no
60000	40	no
70000	48	no
None	56	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	192

location

name	number	inverted
L12	2	no
L12	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	192	no
3	0	yes
4	64	no
5	128	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN0	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	IN1_DSW0	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	16	yes
Cocktail	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	IN2	3

location

name	number	inverted
DE2	4	no
DE2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	2	no
Medium1	3	yes
Medium2	0	no
Hard	1	no

Rating

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Rating	IN2	4

location

name	number	inverted
DE2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1, 3, 5, 7, 9	4	yes
tied to high score	0	no
