280-ZZZAP (set 2) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
280zzzapa	midw8080/mw8080bw.cpp		no	no	no	yes	280-ZZZAP (set 2)	1976	Dave Nutting Associates / Midway	280zzzap	280zzzap

snap

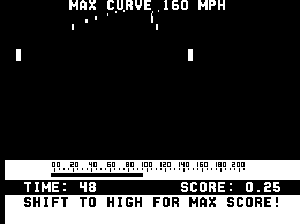

280-ZZZAP (set 2) png snap

280-ZZZAP (set 2) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
280zzzapa	2145	29/12/2025 11:31:14	300	224	96	96	0	Format24bppRgb	305:MAMEUI 0.281.0 (2025-09-26)	0a538b1478c5c6bd1ab83ac23ae6dc191d7bc633

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	260	224	59.541985	4992000	320	0	260	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
h	2048	cb56e0f8	4e490bff71b9c3ba6c84b7f9879acfcfa336d0f8	maincpu	0	good	no
g	2048	f30dd025	2ddacc7912487f36d88e7b924477816702460881	maincpu	800	good	no
f	2048	8d51ec2d	37c744c5bf4a330e26f85377871c637a478dd278	maincpu	1000	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8080	1996800
audio	soundboard:mono	Speaker
audio	soundboard:sound_nl	Netlist Sound Device

device_ref

tag	name
:maincpu	i8080
:screen	screen
:watchdog	watchdog
:mb14241	mb14241
:soundboard	zzzap_audio
:soundboard:mono	speaker
:soundboard:sound_nl	netlist_sound
:soundboard:sound_nl:pedal_bit0	nl_logic_in
:soundboard:sound_nl:pedal_bit1	nl_logic_in
:soundboard:sound_nl:pedal_bit2	nl_logic_in
:soundboard:sound_nl:pedal_bit3	nl_logic_in
:soundboard:sound_nl:hi_shift	nl_logic_in
:soundboard:sound_nl:lo_shift	nl_logic_in
:soundboard:sound_nl:boom	nl_logic_in
:soundboard:sound_nl:engine_sound_off	nl_logic_in
:soundboard:sound_nl:noise_cr_1	nl_logic_in
:soundboard:sound_nl:noise_cr_2	nl_logic_in
:soundboard:sound_nl:cout0	nl_stream_out
:soundboard:sound_nl:pot_master_vol	nl_analog_in

adjuster

name	default
Pot: Master Volume	50

sound

channels
1

input

players	coins	service	tilt
1	1	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
paddle				yes	1	254	100	10
pedal		1		no	0	15	100	64

port, analog

port_tag	analog_masks
:IN0	15
:IN1	255
:IN2
:soundboard:POT_MASTER_VOL

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	IN2	3	IN2	12	ne	4

location

name	number	inverted
E3	1	no
E3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	2	no
1 Coin/1 Credit	0	yes
3 Coins/4 Credits	3	no
1 Coin/2 Credits	1	no

Game Time

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Time	IN2	12

location

name	number	inverted
E3	3	no
E3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
60 seconds + 30 extended	12	no	IN2	48	ne	32
80 seconds + 40 extended	0	yes	IN2	48	ne	32
99 seconds + 50 extended	8	no	IN2	48	ne	32
60 seconds	12	no	IN2	48	eq	32
80 seconds	0	yes	IN2	48	eq	32
99 seconds	8	no	IN2	48	eq	32
Test Mode	4	no

Extended Time At

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extended Time At	IN2	48	IN2	12	ne	4

location

name	number	inverted
E3	5	no
E3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2.00	16	no
2.50	0	yes
None	32	no

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	IN2	192	IN2	12	ne	4

location

name	number	inverted
E3	7	no
E3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	0	yes
German	64	no
French	128	no
Spanish	192	no
