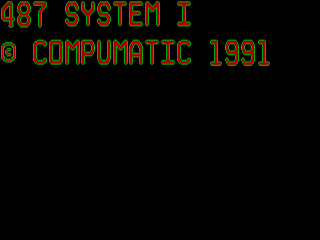

Cuatro en Linea (rev. A-06) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
4enlineb	misc/4enlinea.cpp		no	no	no	yes	Cuatro en Linea (rev. A-06)	1991	Compumatic / CIC Play	4enlinea	4enlinea

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
isa1:4enlinea:screen	raster	0	640	200	59.922748	14318181	912	0	640	262	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
cuatro_en_linea_2_a06.ic6	32768	f8f14bf8	e48fbedbd1b9be6fb56a0f65db80eddbedb487c7	maincpu	0	good	no	cuatro_en_linea_27c256__cicplay-2.ic6
cuatro_en_linea_1_a06.ic19	32768	993d0581	d6e366dd827543508037d2071c4b6e638c2cf87b	audiocpu	0	good	no
cuatro_en_linea_24c16.ic17	2048	56722dd4	f818d882b3070f9b1fac486987a044ab1d418985	eeprom	0	good	no
cuatro_en_linea_gal16v8a.ic04	279	1edaf06c	51e44c2e6b54991330d6ef945e98fa2c8a49408d	plds	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	8000000
cpu	audiocpu	Zilog Z80	4000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	2000000

device_ref

name
z80
z80
24c16
isa8
isa8_slot
4enlinea_cga
screen
palette
mc6845
speaker
ay8910

sound

channels
1

feature

type	status	overall
graphics		imperfect

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	2	8	no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:IN-P1
:IN-P2
:isa1:4enlinea:cga_config
:pcvideo_cga_config

configuration

CGA character set

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CGA character set	isa1:4enlinea:cga_config	3

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	0	yes
Alternative	1	no

CGA monitor type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CGA monitor type	isa1:4enlinea:cga_config	28

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Colour RGB	0	yes
Mono RGB	4	no
Colour composite	8	no
Television	12	no
LCD	16	no

CGA chipset

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CGA chipset	isa1:4enlinea:cga_config	224

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
IBM	0	yes
Amstrad PC1512	32	no
Amstrad PPC512	64	no
ATI	96	no
Paradise	128	no
