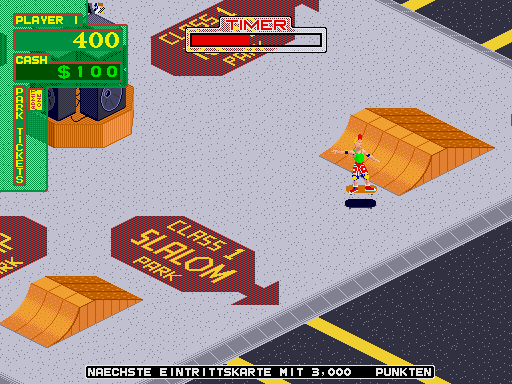

720 Degrees (German, rev 2) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
720g	atari/atarisy2.cpp		no	no	no	yes	720 Degrees (German, rev 2)	1986	Atari Games	720	720

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	384	60.096154	16000000	640	0	512	416	0	384	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
136047-3226.7lm	16384	472be9aa	4635df889d4e5b798074950ebb433c3f101a414d	maincpu	8000	good	no
136047-2227.7mn	16384	c628fcc9	ed8194e10a6d66216b4977be77a197f7f9918899	maincpu	8001	good	no
136047-3228.6fh	65536	10bbbce7	cc23c606151ae7a49eef051c8e0649230902e705	maincpu	10000	good	no
136047-4231.6mn	65536	c29188b0	8f9098719fb007298571ff6430bda4b757368f1c	maincpu	10001	good	no
136047-1129.6hj	65536	eabf0b01	aaf5ab31b63c6ba414f0d4c95bbbebcceedd1ae4	maincpu	30000	good	no	136047-1129.6hj
136047-1132.6p	65536	a24f333e	e4bfa4c670bfb375118d5774f1dbe848e39e6460	maincpu	30001	good	no	136047-1132.6p
136047-1130.6k	65536	93fba845	4de5867272af63be696855f2a4dff99476b213ad	maincpu	50000	good	no	136047-1130.6k
136047-1133.6r	65536	53c177be	a60c81899944e0dda9886e6697edc4d9309ca8f4	maincpu	50001	good	no	136047-1133.6r
136047-2134.2a	16384	0db4ca28	71c2e0eee0eee418bdd2f806bd6ce5ae1c72bf69	audiocpu	4000	good	no	136047-2134.2a
136047-1135.2b	16384	b1f157d0	26355324d49baa02acb777940d7f49d074a75fe5	audiocpu	8000	good	no	136047-1135.2b
136047-2136.2cd	16384	00b06bec	cd771eea329e0f6ab5bff1035f931800cc5da545	audiocpu	c000	good	no	136047-2136.2cd
136047-1121.6a	32768	7adb5f9a	8b4dba6c7ecd9d1c03c5d87326b5971ad1cb8863	tiles	0	good	no	136047-1121.6a
136047-1122.6b	32768	41b60141	a426a0a5f6d4b500571731b3ce5ce8acb5e1db92	tiles	8000	good	no	136047-1122.6b
136047-1123.7a	32768	501881d5	f38b13774c45eb5b48c87c4410afe4bd311cf3c7	tiles	10000	good	no	136047-1123.7a
136047-1124.7b	32768	096f2574	6b59ff9a89a93c39c18011a0ac7043457617f336	tiles	18000	good	no	136047-1124.7b
136047-1117.6c	32768	5a55f149	9dbee28a0bc8ec0d3936d61b7359cb63f4860fff	tiles	20000	good	no	136047-1117.6c
136047-1118.6d	32768	9bb2429e	80655839e5f53aea19115d83bf395b4f70997edc	tiles	28000	good	no	136047-1118.6d
136047-1119.7d	32768	8f7b20e5	9f0928a442f63c66350e66b35b1503fe4f9d8e33	tiles	30000	good	no	136047-1119.7d
136047-1120.7c	32768	46af6d35	c3c2b131245f1231839b3649c117bf5bbace0641	tiles	38000	good	no	136047-1120.7c
136047-1109.6t	65536	0a46b693	77a743816663a8b8fe6bd9aa2dd0a4e570071068	sprites	20000	good	no	136047-1109.6t
136047-1110.6sr	65536	457d7e38	9ac8e5b49e8f61cb8ce4d739462d17049c966a5d	sprites	28000	good	no	136047-1110.6sr
136047-1111.6p	65536	ffad0a5b	127502a256e31c3fca92323544129ec8fcabacb8	sprites	30000	good	no	136047-1111.6p
136047-1112.6n	65536	06664580	2173536af27d9af5b506997a5bbcfd5a40e2023a	sprites	38000	good	no	136047-1112.6n
136047-1113.6m	65536	7445dc0f	cfaa535a4a81a00d0cf47ca3e89625e12abde0f5	sprites	60000	good	no	136047-1113.6m
136047-1114.6l	65536	23eaceb0	8206da45d09b03c51d5c41fdbe964fec0e399837	sprites	68000	good	no	136047-1114.6l
136047-1115.6kj	65536	0cc8de53	656fc4011e6ea362f706048a36e99ff31ecbf7cc	sprites	70000	good	no	136047-1115.6kj
136047-1116.6jh	65536	2d8f1369	d35fc5f6733c83d59b0029eb6ee3945e22f0d13b	sprites	78000	good	no	136047-1116.6jh
136047-1101.5t	65536	2ac77b80	cae6de4ef8a3cf5fb370c0178f734332369e17da	sprites	a0000	good	no	136047-1101.5t
136047-1102.5sr	65536	f19c3b06	12e2194e5cc9604f02bad03dd6f62bba7f459e73	sprites	a8000	good	no	136047-1102.5sr
136047-1103.5p	65536	78f9ab90	c531e264edaacf61abfbdc8f15b1b47e85a4cdf0	sprites	b0000	good	no	136047-1103.5p
136047-1104.5n	65536	77ce4a7f	5c4a6fb01bd744f17cbacc3087c4bdb5e3bfe475	sprites	b8000	good	no	136047-1104.5n
136047-1105.5m	65536	bef5a025	5cfe82f1ef2dd95cc5fa317bd59f69c4cd69fdd2	sprites	e0000	good	no	136047-1105.5m
136047-1106.5l	65536	92a159c8	bc4f06eb666967ac726b7f85719d2fcd74e3b573	sprites	e8000	good	no	136047-1106.5l
136047-1107.5kj	65536	0a94a3ef	7dec8c768d0673ab3c8211f19b17674531dda308	sprites	f0000	good	no	136047-1107.5kj
136047-1108.5jh	65536	9815eda6	89a80c67f4b3426e7516cd1179d5712779ef5db7	sprites	f8000	good	no	136047-1108.5jh
136047-1225.4t	16384	264eda88	f0f5fe87741e0e17117085cf45f700090a02cb94	chars	0	good	no
720-eeprom.bin	512	cfe1c24e	5f7623b0a2ff0d99ffa8e6420a5bc03e0c55250d	eeprom	0	good	no	720-eeprom.bin

chip

type	tag	name	clock
cpu	maincpu	DEC T11	10000000
cpu	audiocpu	MOS Technology 6502	1789772
cpu	pokey1	Atari C012294 POKEY	1789772
cpu	pokey2	Atari C012294 POKEY	1789772
audio	lspeaker	Speaker
audio	rspeaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	pokey1	Atari C012294 POKEY	1789772
audio	pokey2	Atari C012294 POKEY	1789772
audio	tms	TMS5220C	625000

device_ref

name
t11
m6502
adc0809
2804
timer
watchdog
gfxdecode
palette
tilemap
tilemap
atarimo
screen
speaker
speaker
generic_latch_8
generic_latch_8
ym2151
pokey
pokey
tms5220c
slapstic

sound

channels
2

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
stick		2		yes	0	255	100	10
dial				no	0	255	50	10

port, analog

port_tag	analog_masks
:ADC0
:ADC1
:ADC2
:ADC3
:DSW0
:DSW1
:FAKE_JOY_X	255
:FAKE_JOY_Y	255
:FAKE_SPINNER	65535
:IN0
:IN1
:LETA0	255
:LETA1	255
:LETA2
:LETA3
:SELECT

configuration

Controller Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Controller Type	SELECT	3

setting

name	value	default
Real	0	no
Joystick	1	no
Spinner	2	yes

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW0	3

location

name	number	inverted
6/7A	8	yes
6/7A	7	yes

value

name	value	default
4 Coins/1 Credit	3	no
3 Coins/1 Credit	2	no
2 Coins/1 Credit	1	no
1 Coin/1 Credit	0	yes

Right Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Right Coin	DSW0	12

location

name	number	inverted
6/7A	6	yes
6/7A	5	yes

value

name	value	default
*1	0	yes
*4	4	no
*5	8	no
*6	12	no

Left Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Left Coin	DSW0	16

location

name	number	inverted
6/7A	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
*1	0	yes
*2	16	no

Bonus Coins

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Coins	DSW0	224

location

name	number	inverted
6/7A	3	yes
6/7A	2	yes
6/7A	1	yes

value

name	value	default
None	0	yes
1 Each 5	128	no
1 Each 4	64	no
1 Each 3	160	no
2 Each 4	96	no
1 Each 2	32	no
1 Each ?	192	no
Free Play	224	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW1	3

location

name	number	inverted
5/6A	8	yes
5/6A	7	yes

value

name	value	default
3000	1	yes
5000	0	no
8000	2	no
12000	3	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW1	12

location

name	number	inverted
5/6A	6	yes
5/6A	5	yes

value

name	value	default
Easy	4	yes
Medium	0	no
Hard	8	no
Hardest	12	no

Maximum Add. A. Coins

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Add. A. Coins	DSW1	48

location

name	number	inverted
5/6A	4	yes
5/6A	3	yes

value

name	value	default
0	16	yes
1	32	no
2	0	no
3	48	no

Coins Required

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coins Required	DSW1	192

location

name	number	inverted
5/6A	2	yes
5/6A	1	yes

value

name	value	default
3 To Start, 2 To Continue	128	no
3 To Start, 1 To Continue	192	no
2 To Start, 1 To Continue	0	no
1 To Start, 1 To Continue	64	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN0	32768

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
