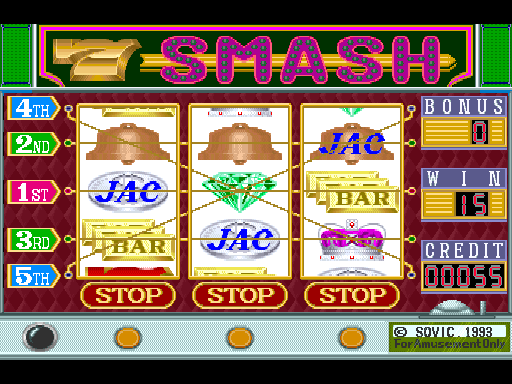

7 Smash (set 2) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
7smasha	wing/luckgrln.cpp		no	no	no	yes	7 Smash (set 2)	1993	Sovic	7smash	7smash

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	256	60.096154	12000000	768	0	512	260	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
eagle_9.u1	131072	cfca7e22	74b1c83aea6478a49a6b33950e389a4e2e19c16f	maincpu	0	good	no
eagle_3.1f	131072	d75b3b2f	1d90bc17f9e645966126fa19c42a7c4d54098776	reels	40000	good	no	eagle.3
eagle_2.1e	131072	211b5acb	e35ae6c93a1daa9d3aa46970c5c3d39788f948bb	reels	20000	good	no	eagle.2
eagle_1.1c	131072	21317c37	7706045b85f86f6e58cc67c2d7dee01d80df3422	reels	0	good	no	eagle.1
eagle_6.1r	131072	2c4416d4	25d04d4d08ab491a9684b8e6f21e57479711ee87	gfx2	40000	good	no	eagle.6
eagle_5.1n	131072	cd8bc456	cefe211492158f445ceaaa9015e1143ea9afddbb	gfx2	20000	good	no	eagle.5
eagle_4.1l	131072	dcf92dca	87c7d88dc35981ad636376b53264cee87ccdaa71	gfx2	0	good	no	eagle.4

chip

type	tag	name	clock
cpu	maincpu	Hitachi HD647180X MCU	12000000
audio	mono	Speaker

device_ref

name
hd647180x
z180asci_channel_0
z180asci_channel_1
z180csio
hd6845s
screen
gfxdecode
palette
speaker

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		7		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2
:IN3

dipswitch

Reel Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reel Speed	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	1	yes
Low	0	no

Renchan Pattern

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Renchan Pattern	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Hard	2	yes
Normal	0	no

Key In Value

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Value	DSW1	12

location

name	number	inverted
DSW1	3	no
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
200	0	no
100	4	no
50	8	no
10	12	yes

Percentage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage	DSW1	112

location

name	number	inverted
DSW1	5	no
DSW1	6	no
DSW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
-- (Invalid 1)	0	no
-- (Invalid 2)	16	no
-- (Invalid 3)	32	no
80%	48	no
85%	64	no
90%	80	no
95%	96	yes
105%	112	no

Reset Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reset Mode	DSW1	128

location

name	number	inverted
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Auto	128	yes
Manual	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW2	3

location

name	number	inverted
DSW2	1	no
DSW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	0	no
1	1	no
2	2	no
3	3	yes

Coin Sw Active

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Sw Active	DSW2	4

location

name	number	inverted
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	4	yes
High	0	no

Hopper Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Limit	DSW2	24

location

name	number	inverted
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unlimited	0	yes
1000	8	no
500	16	no
300	24	no

Panel Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Panel Type	DSW2	96

location

name	number	inverted
DSW2	6	no
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
D	0	no
C	32	no
B	64	no
A	96	yes

Alt. Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Alt. Test	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW3	3

location

name	number	inverted
DSW3	1	no
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	3	yes
1 Coin/2 Credits	2	no
1 Coin/5 Credits	1	no
1 Coin/10 Credits	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW3	12

location

name	number	inverted
DSW3	3	no
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10 Coins/1 Credit	12	yes
5 Coins/1 Credit	8	no
2 Coins/1 Credit	4	no
1 Coin/1 Credit	0	no

Coin C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C	DSW3	240

location

name	number	inverted
DSW3	5	no
DSW3	6	no
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/200 Credits	0	yes
1 Coin/100 Credits	16	no
1 Coin/50 Credits	32	no
1 Coin/25 Credits	48	no
1 Coin/20 Credits	64	no
1 Coin/10 Credits	80	no
1 Coin/5 Credits	96	no
1 Coin/4 Credits	112	no
1 Coin/2 Credits	128	no
1 Coin/1 Credit	144	no
2 Coins/1 Credit	160	no
4 Coins/1 Credit	176	no
3 Coins/1 Credit	192	no
5 Coins/2 Credits	208	no
5 Coins/1 Credit	224	no
10 Coins/1 Credit	240	no
