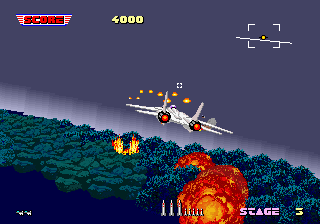

After Burner - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
aburner	sega/segaxbd.cpp		no	no	no	yes	After Burner	1987	Sega

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
mainpcb:screen	raster	0	320	224	59.637405	6250000	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
epr-10940.58	131072	4d132c4e	007af52167c369177b86fc0f8b007ebceba2a30c	mainpcb:maincpu	0	good	no
epr-10941.63	131072	136ea264	606ac67db53a6002ed1bd71287aed2e3e720cdf4	mainpcb:maincpu	1	good	no
epr-10927.20	131072	66d36757	c7f6d653fb6bfd629bb62057010d41f3ccfccc4d	mainpcb:subcpu	0	good	no
epr-10928.29	131072	7c01d40b	d95b4702a9c813db8bc24c8cd7e0933cbe54a573	mainpcb:subcpu	1	good	no
epr-10926.154	65536	ed8bd632	d5bbd5e257ebef8cfb3baf5fa530b189d9cddb57	mainpcb:gfx1	0	good	no
epr-10925.153	65536	4ef048cc	3b386b3bfa600f114dbc19796bb6864a88ff4562	mainpcb:gfx1	10000	good	no
epr-10924.152	65536	50c15a6d	fc202cc583fc6804647abc884fdf332e72ea3100	mainpcb:gfx1	20000	good	no
mpr-10932.90	131072	cc0821d6	22e84419a585209bbda1466d2180504c316a9b7f	mainpcb:sprites	0	good	no
mpr-10934.94	131072	4a51b1fa	2eed018a5a1e935bb72b6f440a794466a1397dc5	mainpcb:sprites	1	good	no
mpr-10936.98	131072	ada70d64	ba6203b0fdb4c4998b7be5b446eb8354751d553a	mainpcb:sprites	2	good	no
mpr-10938.102	131072	e7675baf	aa979319a44c0b18c462afb5ca9cdeed2292c76a	mainpcb:sprites	3	good	no
mpr-10933.91	131072	c8efb2c3	ba31da93f929f2c457e60b2099d5a1ba6b5a9f48	mainpcb:sprites	80000	good	no
mpr-10935.95	131072	c1e23521	5e95f3b6ff9f4caca676eaa6c84f1200315218ea	mainpcb:sprites	80001	good	no
mpr-10937.99	131072	f0199658	cd67504fef53f637a3b1c723c4a04148f88028d2	mainpcb:sprites	80002	good	no
mpr-10939.103	131072	a0d49480	6c4234456bc09ae771beec284d7aa21ebe474f6f	mainpcb:sprites	80003	good	no
epr-10942.92	131072	5ce10b8c	c6c189143762b0ef473d5d31d66226820c5cf080	mainpcb:sprites	100000	good	no
epr-10943.96	131072	b98294dc	a4161af23f9a67b4ed81308c73e72e1797cce894	mainpcb:sprites	100001	good	no
epr-10944.100	131072	17be8f67	371f0dd1914a98695cb86f921fe8e82b49e69a4a	mainpcb:sprites	100002	good	no
epr-10945.104	131072	df4d4c4f	24075a6709869d9acf9082b6b4ad96bc6f8b1932	mainpcb:sprites	100003	good	no
epr-10946.93	131072	d7d485f4	d843aefb4d99e0dff8d62ee6bd0c3aa6aa6c941b	mainpcb:sprites	180000	good	no
epr-10947.97	131072	08838392	84f7ff3bff31c0738dead7bc00219ede834eb0e0	mainpcb:sprites	180001	good	no
epr-10948.101	131072	64284761	9594c671900f7f49d8fb965bc17b4380ce2c68d5	mainpcb:sprites	180002	good	no
epr-10949.105	131072	d8437d92	480291358c3d197645d7bd149bdfe5d41071d52d	mainpcb:sprites	180003	good	no
epr-10922.40	65536	b49183d4	71d87bfbce858049ccde9597ab15575b3cdba892	mainpcb:segaic16road	0	good	no
epr-10923.17	65536	6888eb8f	8f8fffb214842a5d356e33f5a97099bc6407384f	mainpcb:soundcpu	0	good	no
mpr-10931.11	131072	9209068f	01f3dda1c066d00080c55f2c86c506b6b2407f98	mainpcb:pcm	0	good	no
mpr-10930.12	131072	6493368b	328aff19ff1d1344e9115f519d3962390c4e5ba4	mainpcb:pcm	20000	good	no
epr-10929.13	131072	6c07c78d	3868b1824f43e4f2b4fbcd9274bfb3000c889d12	mainpcb:pcm	40000	good	no

chip

type	tag	name	clock
cpu	mainpcb:maincpu	Motorola MC68000	12500000
cpu	mainpcb:subcpu	Motorola MC68000	12500000
cpu	mainpcb:soundcpu	Zilog Z80	4000000
audio	mainpcb:lspeaker	Speaker
audio	mainpcb:rspeaker	Speaker
audio	mainpcb:ymsnd	YM2151 OPM	4000000
audio	mainpcb:pcm	Sega PCM	4000000

device_ref

name
segaxbd_pcb_aburner2
m68000
m68000
z80
nvram
nvram
mb3773
sega_315_5248
sega_315_5248
sega_315_5249
sega_315_5249
sega_315_5250
sega_315_5250
cxd1095
cxd1095
adc0804
gfxdecode
palette
screen
sega_xboard_sprite
segaic16_video
segaic16_road
speaker
speaker
ym2151
segapcm

sound

channels
2

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
stick		2		yes	64	255	100	79

port, analog

port_tag	analog_masks
:mainpcb:ADC0	255
:mainpcb:ADC1	255
:mainpcb:ADC2	255
:mainpcb:ADC3
:mainpcb:ADC4
:mainpcb:IO0PORTA
:mainpcb:IO0PORTB
:mainpcb:IO1PORTA
:mainpcb:IO1PORTB
:mainpcb:IO1PORTC
:mainpcb:IO1PORTD

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	mainpcb:IO1PORTC	15

location

name	number	inverted
SWA	1	no
SWA	2	no
SWA	3	no
SWA	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	mainpcb:IO1PORTC	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet Type	mainpcb:IO1PORTD	3

location

name	number	inverted
SWB	1	no
SWB	2	no

value

name	value	default
Moving Deluxe	3	no
Moving Standard	2	no
Upright	1	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	mainpcb:IO1PORTD	4

location

name	number	inverted
SWB	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	mainpcb:IO1PORTD	8

location

name	number	inverted
SWB	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	mainpcb:IO1PORTD	16

location

name	number	inverted
SWB	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	16	no
3x Credits	0	yes

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	mainpcb:IO1PORTD	32

location

name	number	inverted
SWB	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	32	no
Yes	0	yes

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	mainpcb:IO1PORTD	192

location

name	number	inverted
SWB	7	no
SWB	8	no

value

name	value	default
Easy	128	no
Normal	192	yes
Hard	64	no
Hardest	0	no
