Mephisto Academy (German, 27-08-88)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
academygb	hegenerglaser/academy.cpp		no	no	no	yes	Mephisto Academy (German, 27-08-88)	1989	Hegener + Glaser	academy	academy

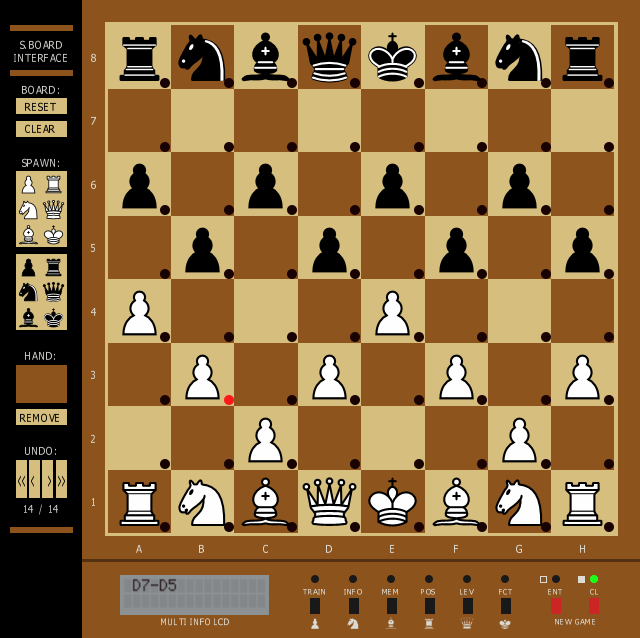

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
academygb	54342	29/12/2025 11:31:15	640	638	96	96	0	Format24bppRgb	305:MAME 0.262.0 (Jan 31 2024)	2c6a697ce5cfb5bcea397e0f116d05c30d1f1dcb

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
display:screen	lcd	0	97	19	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
academy_16k_27.8.88	32768	9530def8	376a6263477dd2c36723871acefa2939643747a5	maincpu	0	good	no
academy_32k_27.8.88	32768	bb9e3dc8	98cd9bf830de1eeef339a3e1a8604d40e0ac2334	maincpu	8000	good	no

chip

type	tag	name	clock
cpu	maincpu	WDC W65C02	4915200
audio	display:speaker	Speaker
audio	display:dac	2-Bit Ones Complement DAC

device_ref

tag	name
:maincpu	w65c02
:nvram	nvram
:outlatch	hc259
:board	msboard
:board:board	sensorboard
:board:led_pwm	pwm_display
:display	mdisplay2
:display:screen	screen
:display:palette	palette
:display:hd44780	hd44780
:display:speaker	speaker
:display:dac	dac_2bit_oc
:led_pwm	pwm_display

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		8		no

port, analog

port_tag	analog_masks
:KEY
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.11
:board:board:RANK.12
:board:board:RANK.13
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
