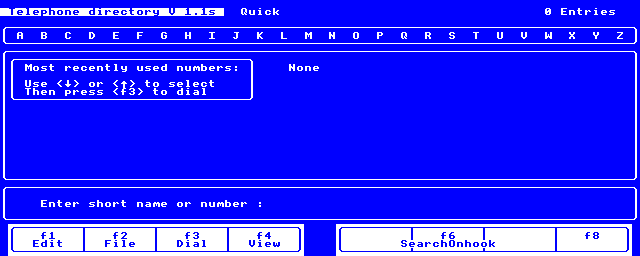

Acorn Communicator (prototype) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
accommp	acorn/accomm.cpp		no	no	no	yes	Acorn Communicator (prototype)	1985	Acorn Computers	accomm	accomm

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	256	50.080128	16000000	1024	0	640	312	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
004-a.rom	32768	d0d4d5e3	67710e349235ed5c71380b5a7d4b570ce355b10e	maincpu	0	good	no	011-1985
004-b.rom	65536	e2fcef94	fd065bcdb6c48bee39db9f71b8d193ee228557f7	maincpu	20000	good	no	011-1985
004-c.rom	32768	348c0018	9681b6b9eefa9ba294fac6a41dec12ba203e5142	maincpu	40000	good	no	011-1985
004-d.rom	65536	1379eb9f	8d57bc7e279c5f17c6f0e4d1d5fa7f784aadd549	maincpu	60000	good	no	011-1985
094-a.rom	32768	d0d4d5e3	67710e349235ed5c71380b5a7d4b570ce355b10e	maincpu	8000	good	no	011-1986
094-b.rom	32768	8d793909	392028386f831dfae3353e0b7b51a608798e89c6	maincpu	20000	good	no	011-1986
094-c.rom	32768	e544e849	31cd2dcd2a50880a97b12d61ef144f7d7f112345	maincpu	40000	good	no	011-1986
094-d-view+castoff.rom	65536	8027df77	51751bfdcf68683c092b6442fb22f11cb565898c	maincpu	60000	good	no	011-1986

chip

type	tag	name	clock
cpu	maincpu	WDC W65C816	2000000
audio	mono	Speaker
audio	ula	Acorn Electron ULA	16000000
audio	dtmf	PCD3311	3578640

device_ref

name
w65c816
ipt_merge_any_hi
screen
ram
nvram
speaker
electron_ula
pcf8573
saa5240a
mos6522
scn2641
rs232
acia6850
rs232
null_modem
bitbanger
clock
pcd3311
mc6854
econet
econet_slot
centronics
centronics_printer
printer_image
output_latch

biosset

name	description	default
011-1985	CMOS v0.11 1985	yes
011-1986	CMOS v0.11 1986	no

sound

channels
1

feature

type	status	overall
graphics		imperfect

ramoption

name	default
1M
512K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
bitbanger	modem:null_modem:stream				bitbanger	bitb
printout	centronics:printer:printer				printout	prin

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
bitbanger	modem:null_modem:stream
printout	centronics:printer:printer				prn

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		90		no

port, analog

port_tag	analog_masks
:LINE1.0
:LINE1.1
:LINE1.10
:LINE1.11
:LINE1.12
:LINE1.2
:LINE1.3
:LINE1.4
:LINE1.5
:LINE1.6
:LINE1.7
:LINE1.8
:LINE1.9
:LINE2.0
:LINE2.1
:LINE2.10
:LINE2.11
:LINE2.12
:LINE2.2
:LINE2.3
:LINE2.4
:LINE2.5
:LINE2.6
:LINE2.7
:LINE2.8
:LINE2.9
:STOP
:modem:null_modem:FLOW_CONTROL
:modem:null_modem:RS232_DATABITS
:modem:null_modem:RS232_PARITY
:modem:null_modem:RS232_RXBAUD
:modem:null_modem:RS232_STOPBITS
:modem:null_modem:RS232_TXBAUD

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs423	terminal	serial_terminal	no
rs423	sunkbd	sunkbd_adaptor	no
rs423	dec_loopback	dec_rs232_loopback	no
rs423	ie15	ie15_terminal	no
rs423	null_modem	null_modem	no
rs423	keyboard	serial_keyboard	no
rs423	patch	rs232_patch_box	no
rs423	swtpc8212	swtpc8212_terminal	no
rs423	printer	serial_printer	no
rs423	scorpion	scorpion_ic	no
rs423	loopback	rs232_loopback	no
rs423	mockingboard	mockingboardd	no
rs423	msystems_mouse	rs232_mouse_hle_msystems	no
rs423	nss_tvi	nss_tvinterface	no
rs423	rs232_sync_io	rs232_sync_io	no
rs423	pty	pseudo_terminal	no
rs423	rs_printer	rs_serial_printer	no
modem	terminal	serial_terminal	no
modem	sunkbd	sunkbd_adaptor	no
modem	dec_loopback	dec_rs232_loopback	no
modem	ie15	ie15_terminal	no
modem	null_modem	null_modem	yes
modem	keyboard	serial_keyboard	no
modem	patch	rs232_patch_box	no
modem	swtpc8212	swtpc8212_terminal	no
modem	printer	serial_printer	no
modem	scorpion	scorpion_ic	no
modem	loopback	rs232_loopback	no
modem	mockingboard	mockingboardd	no
modem	msystems_mouse	rs232_mouse_hle_msystems	no
modem	nss_tvi	nss_tvinterface	no
modem	rs232_sync_io	rs232_sync_io	no
modem	pty	pseudo_terminal	no
modem	rs_printer	rs_serial_printer	no
econet254	e01s	econet_e01s	no
econet254	e01	econet_e01	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes

configuration

Flow Control

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flow Control	modem:null_modem:FLOW_CONTROL	7

setting

name	value	default
Off	0	yes
RTS	1	no
DTR	2	no
XON/XOFF	4	no

Data Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Data Bits	modem:null_modem:RS232_DATABITS	255

setting

name	value	default
5	0	no
6	1	no
7	2	no
8	3	yes

Parity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parity	modem:null_modem:RS232_PARITY	255

setting

name	value	default
None	0	yes
Odd	1	no
Even	2	no
Mark	3	no
Space	4	no

RX Baud

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RX Baud	modem:null_modem:RS232_RXBAUD	255

setting

name	value	default
50	14	no
75	15	no
110	0	no
134.5	16	no
150	1	no
200	17	no
300	2	no
600	3	no
1200	4	no
1800	18	no
2000	19	no
2400	5	no
3600	20	no
4800	6	no
7200	21	no
9600	7	yes
14400	8	no
19200	9	no
28800	10	no
38400	11	no
57600	12	no
111900	22	no
115200	13	no

Stop Bits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop Bits	modem:null_modem:RS232_STOPBITS	255

setting

name	value	default
0	0	no
1	1	yes
1.5	2	no
2	3	no

TX Baud

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
TX Baud	modem:null_modem:RS232_TXBAUD	255

setting

name	value	default
50	14	no
75	15	no
110	0	no
134.5	16	no
150	1	no
200	17	no
300	2	no
600	3	no
1200	4	no
1800	18	no
2000	19	no
2400	5	no
3600	20	no
4800	6	no
7200	21	no
9600	7	yes
14400	8	no
19200	9	no
28800	10	no
38400	11	no
57600	12	no
111900	22	no
115200	13	no
