Acorn System 3 (6502 CPU) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
acrnsys3	acorn/acrnsys.cpp		no	no	no	yes	Acorn System 3 (6502 CPU)	1980	Acorn Computers

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx

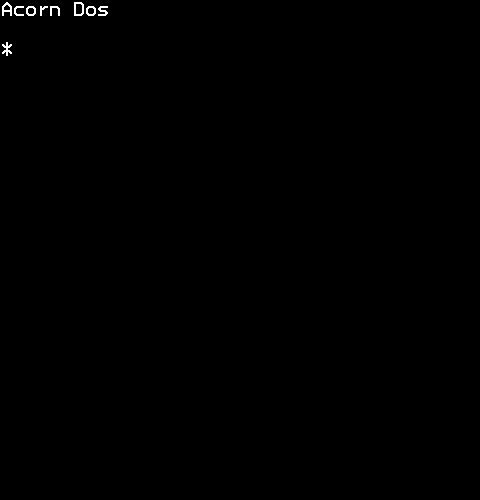

bus3:vdu40:screen	raster	0	480	250	50.241158	12000000	768	132	612	311	20	270	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
tosdos-s3.ic7	4096	9b1fbec4	4cb322dadcfba9c452797d6cc2096f0c92e8792c	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	2000000
audio	bus4:fdc:i8271:0:525qd:flopsndout	Speaker
audio	bus4:fdc:i8271:0:525qd:floppysound	Floppy sound	44100
audio	bus4:fdc:i8271:1:525qd:flopsndout	Speaker
audio	bus4:fdc:i8271:1:525qd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
flop_list	acrnsys_flop	original
rom_list	acrnsys_rom	original

device_ref

name
m6502
ipt_merge_any_hi
ins8154
generic_keyboard
acorn_bus
acorn_bus_slot
acorn_8k
generic_socket
generic_socket
acorn_bus_slot
acorn_8k
generic_socket
generic_socket
acorn_bus_slot
acorn_vdu40
screen
palette
hd6845s
saa5050
acorn_bus_slot
acorn_fdc
i8271
floppy_connector
floppy_525_qd
speaker
flopsnd
floppy_connector
floppy_525_qd
speaker
flopsnd
acorn_bus_slot
acorn_bus_slot
acorn_bus_slot
software_list
software_list

sound

channels
2

device, instance

type	tag	interface	name	briefname
romimage	bus1:8k:rom0	acrnsys_rom	romimage1	rom1
romimage	bus1:8k:rom1	acrnsys_rom	romimage2	rom2
romimage	bus2:8k:rom0	acrnsys_rom	romimage3	rom3
romimage	bus2:8k:rom1	acrnsys_rom	romimage4	rom4
floppydisk	bus4:fdc:i8271:0:525qd	floppy_5_25	floppydisk1	flop1
floppydisk	bus4:fdc:i8271:1:525qd	floppy_5_25	floppydisk2	flop2

device, extension

type	tag	interface	extension_names
romimage	bus1:8k:rom0	acrnsys_rom	bin, rom
romimage	bus1:8k:rom1	acrnsys_rom	bin, rom
romimage	bus2:8k:rom0	acrnsys_rom	bin, rom
romimage	bus2:8k:rom1	acrnsys_rom	bin, rom
floppydisk	bus4:fdc:i8271:0:525qd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ssd, bbc, img
floppydisk	bus4:fdc:i8271:1:525qd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ssd, bbc, img

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		73		no

port, analog

port_tag	analog_masks
:BRK
:bus1:8k:LINKS
:bus2:8k:LINKS
:keyboard:GENKBD_CFG
:keyboard:GENKBD_MOD
:keyboard:GENKBD_ROW0
:keyboard:GENKBD_ROW1
:keyboard:GENKBD_ROW2
:keyboard:GENKBD_ROW3

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
bus1	vib	acorn_vib	no
bus1	vdu80	acorn_vdu80	no
bus1	vdu40	acorn_vdu40	no
bus1	fdc	acorn_fdc	no
bus1	econet	acorn_econet	no
bus1	cass	acorn_cass	no
bus1	8k	acorn_8k	yes
bus1	32k	acorn_32k	no
bus1:8k:rom0
bus1:8k:rom1
bus2	vib	acorn_vib	no
bus2	vdu80	acorn_vdu80	no
bus2	vdu40	acorn_vdu40	no
bus2	fdc	acorn_fdc	no
bus2	econet	acorn_econet	no
bus2	cass	acorn_cass	no
bus2	8k	acorn_8k	yes
bus2	32k	acorn_32k	no
bus2:8k:rom0
bus2:8k:rom1
bus3	vib	acorn_vib	no
bus3	vdu80	acorn_vdu80	no
bus3	vdu40	acorn_vdu40	yes
bus3	fdc	acorn_fdc	no
bus3	econet	acorn_econet	no
bus3	cass	acorn_cass	no
bus3	8k	acorn_8k	no
bus3	32k	acorn_32k	no
bus4	vib	acorn_vib	no
bus4	vdu80	acorn_vdu80	no
bus4	vdu40	acorn_vdu40	no
bus4	fdc	acorn_fdc	yes
bus4	econet	acorn_econet	no
bus4	cass	acorn_cass	no
bus4	8k	acorn_8k	no
bus4	32k	acorn_32k	no
bus4:fdc:i8271:0	525qd	floppy_525_qd	yes
bus4:fdc:i8271:0	525sd	floppy_525_sd	no
bus4:fdc:i8271:0	525sssd	floppy_525_sssd	no
bus4:fdc:i8271:1	525qd	floppy_525_qd	yes
bus4:fdc:i8271:1	525sd	floppy_525_sd	no
bus4:fdc:i8271:1	525sssd	floppy_525_sssd	no
bus5	vib	acorn_vib	no
bus5	vdu80	acorn_vdu80	no
bus5	vdu40	acorn_vdu40	no
bus5	fdc	acorn_fdc	no
bus5	econet	acorn_econet	no
bus5	cass	acorn_cass	no
bus5	8k	acorn_8k	no
bus5	32k	acorn_32k	no
bus6	vib	acorn_vib	no
bus6	vdu80	acorn_vdu80	no
bus6	vdu40	acorn_vdu40	no
bus6	fdc	acorn_fdc	no
bus6	econet	acorn_econet	no
bus6	cass	acorn_cass	no
bus6	8k	acorn_8k	no
bus6	32k	acorn_32k	no
bus7	vib	acorn_vib	no
bus7	vdu80	acorn_vdu80	no
bus7	vdu40	acorn_vdu40	no
bus7	fdc	acorn_fdc	no
bus7	econet	acorn_econet	no
bus7	cass	acorn_cass	no
bus7	8k	acorn_8k	no
bus7	32k	acorn_32k	no

configuration

Address Selection (RAM)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Address Selection (RAM)	bus1:8k:LINKS	7

setting

name	value	default
&0000-&1FFF	0	no
&2000-&3FFF	1	yes
&4000-&5FFF	2	no
&6000-&7FFF	3	no
&8000-&9FFF	4	no
&A000-&BFFF	5	no
&C000-&DFFF	6	no
&E000-&FFFF	7	no

Address Selection (ROM)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Address Selection (ROM)	bus1:8k:LINKS	112

setting

name	value	default
&0000-&1FFF	0	no
&2000-&3FFF	16	no
&4000-&5FFF	32	no
&6000-&7FFF	48	no
&8000-&9FFF	64	no
&A000-&BFFF	80	yes
&C000-&DFFF	96	no
&E000-&FFFF	112	no

Address Selection (RAM)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Address Selection (RAM)	bus2:8k:LINKS	7

setting

name	value	default
&0000-&1FFF	0	no
&2000-&3FFF	1	no
&4000-&5FFF	2	no
&6000-&7FFF	3	no
&8000-&9FFF	4	no
&A000-&BFFF	5	no
&C000-&DFFF	6	yes
&E000-&FFFF	7	no

Address Selection (ROM)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Address Selection (ROM)	bus2:8k:LINKS	112

setting

name	value	default
&0000-&1FFF	0	no
&2000-&3FFF	16	no
&4000-&5FFF	32	no
&6000-&7FFF	48	no
&8000-&9FFF	64	no
&A000-&BFFF	80	yes
&C000-&DFFF	96	no
&E000-&FFFF	112	no

Layout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Layout	keyboard:GENKBD_CFG	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
ANSI	0	yes
JIS	1	no

Typematic Delay

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Typematic Delay	keyboard:GENKBD_CFG	6

setting

name	value	default
0.25s	0	no
0.5s	2	no
0.75s	4	yes
1.0s	6	no

Typematic Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Typematic Rate	keyboard:GENKBD_CFG	248

setting

name	value	default
2.0cps	0	no
2.1cps	8	no
2.5cps	16	no
2.7cps	24	no
2.0cps	32	no
2.1cps	40	no
2.5cps	48	no
2.7cps	56	no
3.3cps	64	no
3.8cps	72	no
4.0cps	80	no
4.3cps	88	no
4.6cps	96	no
5.0cps	104	no
5.5cps	112	no
6.0cps	120	no
8.0cps	128	no
8.6cps	136	no
9.2cps	144	no
10.0cps	152	yes
10.9cps	160	no
12.0cps	168	no
13.3cps	176	no
15.0cps	184	no
16.0cps	192	no
17.1cps	200	no
18.5cps	208	no
20.0cps	216	no
21.8cps	224	no
24.0cps	232	no
26.7cps	240	no
30.0cps	248	no
