Addams Family Values (Coin Dropper L-4) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
afv_l4	pinball/wpc_dcs.cpp		no	no	yes	yes	Addams Family Values (Coin Dropper L-4)	1993	Williams

snap

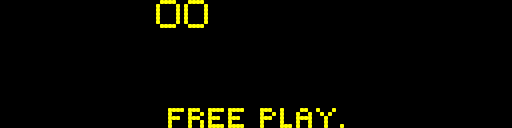

Addams Family Values (Coin Dropper L-4) png snap

Addams Family Values (Coin Dropper L-4) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
afv_l4	769	29/12/2025 11:31:15	512	128	96	96	0	Format24bppRgb	305:MAME 0.193 (Dec 27 2017)	1f4d3a2fe3ee16f48a1a20318cbcd6f095a2b1b9

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
dmd:screen	lcd	0	512	128	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
afv_u6.l4	524288	37369339	e44a91faca80ffa00d6db78e2df7aa9bf14e957c	maincpu	0	good	no
afv_su2.l1	524288	1aa878fc	59a89071001b5da6ab56d691721a015773f5f0b5	dcs	0	good	no

chip

type	tag	name	clock
cpu	maincpu	MC6809 (legacy)	2000000
cpu	dcs:dcs	Analog Devices ADSP-2105	10000000
audio	mono	Speaker
audio	dcs	DCS Audio 8K
audio	dcs:dac	DMA-driven DAC

device_ref

tag	name
:maincpu	m6809
:zero_crossing	timer
:lamp	wpc_lamp
:out	wpc_out
:shift	wpc_shift
:dmd	wpc_dmd
:dmd:screen	screen
:dmd:scanline	timer
:nvram	nvram
:mono	speaker
:dcs	dcs_audio_8k
:dcs:dcs	adsp2105
:dcs:dcs_reg_timer	timer
:dcs:dcs_int_timer	timer
:dcs:dac	dmadac

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		73		no

port, analog

port_tag	analog_masks
:DOOR
:DSW
:FLIPPERS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 1	DSW	1

location

name	number	inverted
SWA	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Switch 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch 2	DSW	2

location

name	number	inverted
SWA	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

W20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W20	DSW	4

location

name	number	inverted
SWA	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

W19

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
W19	DSW	8

location

name	number	inverted
SWA	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Country

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Country	DSW	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
USA 1	0	yes
France 1	16	no
Germany	32	no
France 2	48	no
Unknown 1	64	no
Unknown 2	80	no
Unknown 3	96	no
Unknown 4	112	no
Export 1	128	no
France 3	144	no
Export 2	160	no
France 4	176	no
UK	192	no
Europe	208	no
Spain	224	no
USA 2	240	no
