Allied System - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
allied	pinball/allied.cpp	genpin	yes	no	no	yes	Allied System	1977	Allied Leisure

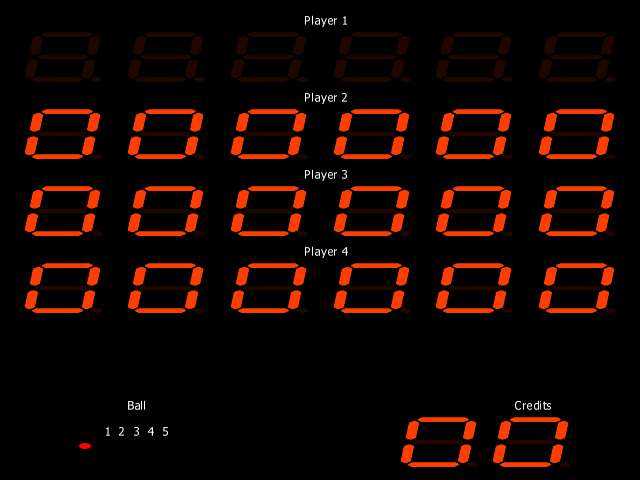

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
allied	12867	26/02/2026 20:15:25	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	15eb08e2cbaa83b2ec6740ce0ed7c0c9398626c8

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional
6530-009.u5	1024	e4fb64fb	a3d9de7cbfb42180a860e0bbbeaeba96d8bd1e20	ic5	good	no
6530-010.u6	1024	dca980dd	3817d75413854d889fc1ce4fd6a51d820d1e0534	ic6	good	no
6530-011.u3	1024	13f42789	baa0f73fda08a3c5d6f1423fb329e4febb07ef97	ic3	good	no

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6504	894886
audio	mechvol	Speaker
audio	samples	Samples

device_ref

tag	name
:maincpu	m6504
:main_irqs	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:ic1	pia6821
:ic2	pia6821
:ic4	pia6821
:ic7	pia6821
:ic8	pia6821
:ic3	mos6530
:ic5	mos6530
:ic6	mos6530
:timer_a	timer

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
1

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		23		no

port, analog

port_tag	analog_masks
:A
:B
:CM1
:CM2
:CR
:CS1
:CS2
:CS3
:N
:R11
:R12
:R13
:R21
:R22
:R23
:R31
:R32
:R33
:TEST
:X1A
:X2A
:X4A
:X6A
:X7A

configuration

Award

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Award	A	4

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Replay	4	yes
Extra Ball	0	no

Line Up Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Line Up Inhibit	A	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	8	yes
Yes	0	no

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	B	7

setting

name	value	default
1	1	no
2	2	no
3	3	yes
4	4	no
5	5	no

Credits Max 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Max 1	CM1	15

setting

name	value	default
0	0	no
1	1	no
2	2	no
3	3	no
4	4	no
5	5	yes
6	6	no
7	7	no
8	8	no
9	9	no

Credits Max 10

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Max 10	CM2	15

setting

name	value	default
0	0	no
1	1	yes
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

Credits Option

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Option	CR	15

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	1	yes
2	2	no

Coin Slot 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 1	CS1	15

setting

name	value	default
0	0	no
1	1	yes
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

Coin Slot 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 2	CS2	15

setting

name	value	default
0	0	no
1	1	yes
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

Coin Slot 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 3	CS3	15

setting

name	value	default
0	0	no
1	1	yes
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

Number of Players

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Number of Players	N	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	0	no
4	1	yes

1st Replay 1000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
1st Replay 1000	R11	15

setting

name	value	default
0	0	yes
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

1st Replay 10000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
1st Replay 10000	R12	15

setting

name	value	default
0	0	no
1	1	no
2	2	no
3	3	no
4	4	no
5	5	yes
6	6	no
7	7	no
8	8	no
9	9	no

1st Replay 100000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
1st Replay 100000	R13	15

setting

name	value	default
0	0	yes
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

2nd Replay 1000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
2nd Replay 1000	R21	15

setting

name	value	default
0	0	yes
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

2nd Replay 10000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
2nd Replay 10000	R22	15

setting

name	value	default
0	0	yes
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

2nd Replay 100000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
2nd Replay 100000	R23	15

setting

name	value	default
0	0	no
1	1	yes
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

3rd Replay 1000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
3rd Replay 1000	R31	15

setting

name	value	default
0	0	yes
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no

3rd Replay 10000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
3rd Replay 10000	R32	15

setting

name	value	default
0	0	no
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	yes
7	7	no
8	8	no
9	9	no

3rd Replay 100000

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
3rd Replay 100000	R33	15

setting

name	value	default
0	0	no
1	1	yes
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	no
8	8	no
9	9	no
