alphatronic PC-16 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
alphatpc16	ta/alphatpc16.cpp		no	no	no	yes	alphatronic PC-16	1985	Triumph-Adler

snap

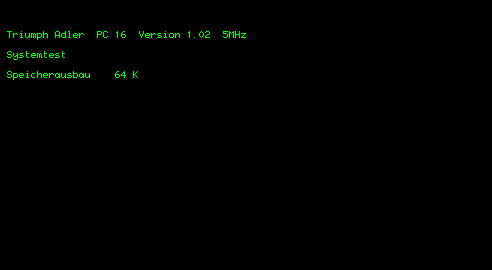

alphatronic PC-16 png snap

alphatronic PC-16 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
alphatpc16	1215	29/12/2025 11:31:15	492	270	96	96	0	Format24bppRgb	305:MAME 0.219 (Feb 27 2020)	22d6c5a2f2689c4d4d2dbc89e438a97db0c0c557

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	492	270	50.000000	6642000	492	0	492	270	0	270	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
cdae03_04_16.bin	32768	0ff5b549	f5612e7864c06da586087645fed97c78e84a5d04	bios	0	good	no
cdae02_07_15.bin	32768	22fd3acb	ddab380dd15326ca699d6b4b7f4bf7c1a9d498ea	bios	8000	good	no
d8741ad.bin	1024	e71d5d9f	deda490491d3ee08f47bd23bb29dc92b3806d3f2	i8741	0	good	no
cdae04_03_21.bin	16384	11bc6551	28c1f02fdc040035aba249c4ad21de9b5ec95298	flop	0	good	no
charset.rom	8192	b2f49eb3	d0ef530be33bfc296314e7152302d95fdf9520fc	ef9345	0	baddump	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8088	5000000
cpu	z80	Zilog Z80	4000000
cpu	i8741	Intel 8741A	4608000
audio	wdfdc:0:525dd:flopsndout	Speaker
audio	wdfdc:0:525dd:floppysound	Floppy sound	44100
audio	wdfdc:1:525dd:flopsndout	Speaker
audio	wdfdc:1:525dd:floppysound	Floppy sound	44100
audio	wdfdc:2:525dd:flopsndout	Speaker
audio	wdfdc:2:525dd:floppysound	Floppy sound	44100
audio	wdfdc:3:525dd:flopsndout	Speaker
audio	wdfdc:3:525dd:floppysound	Floppy sound	44100
audio	mono	Speaker
audio	beeper	Beep	1000

device_ref

tag	name
:maincpu	i8088
:pic8259	pic8259
:z80dart	z80dart
:z80dart:cha	z80dart_channel
:z80dart:chb	z80dart_channel
:z80	z80
:wdfdc	wd1770
:wdfdc:0	floppy_connector
:wdfdc:0:525dd	floppy_525_dd
:wdfdc:0:525dd:flopsndout	speaker
:wdfdc:0:525dd:floppysound	flopsnd
:wdfdc:1	floppy_connector
:wdfdc:1:525dd	floppy_525_dd
:wdfdc:1:525dd:flopsndout	speaker
:wdfdc:1:525dd:floppysound	flopsnd
:wdfdc:2	floppy_connector
:wdfdc:2:525dd	floppy_525_dd
:wdfdc:2:525dd:flopsndout	speaker
:wdfdc:2:525dd:floppysound	flopsnd
:wdfdc:3	floppy_connector
:wdfdc:3:525dd	floppy_525_dd
:wdfdc:3:525dd:flopsndout	speaker
:wdfdc:3:525dd:floppysound	flopsnd
:i8741	i8741a
:mono	speaker
:beeper	beep
:screen	screen
:palette	palette
:ef9345	ef9345
:scanline	timer
:ram	ram

sound

channels
5

ramoption

name	default
128K
192K
256K
384K
448K
512K
64K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	wdfdc:0:525dd	floppy_5_25			floppydisk1	flop1
floppydisk	wdfdc:1:525dd	floppy_5_25			floppydisk2	flop2
floppydisk	wdfdc:2:525dd	floppy_5_25			floppydisk3	flop3
floppydisk	wdfdc:3:525dd	floppy_5_25			floppydisk4	flop4

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	wdfdc:0:525dd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	wdfdc:1:525dd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	wdfdc:2:525dd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	wdfdc:3:525dd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		91		no

port, analog

port_tag	analog_masks
:KEYS.0
:KEYS.1
:KEYS.2
:KEYS.3
:KEYS.4
:KEYS.5
:KEYS.6
:KEYS.7

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
wdfdc:1	525dd	floppy_525_dd	yes
wdfdc:2	525dd	floppy_525_dd	yes
wdfdc:3	525dd	floppy_525_dd	yes
