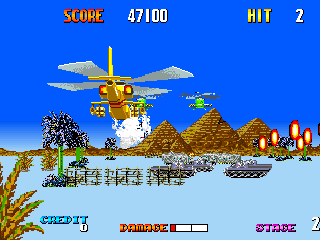

Apache 3 (rev F) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
apache3	tatsumi/apache3.cpp		no	no	no	yes	Apache 3 (rev F)	1988	Tatsumi

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	240	57.444853	6250000	400	0	320	272	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
ap-25f.125	65536	3c7530f4	9f7b58a3abddbdc3081ba9dfc1732406eb8c1752	master_rom	20001	good	no
ap-26f.133	65536	2955997f	86e37def923d9cf4eb33e7979118ec6f1ef62678	master_rom	20000	good	no
ap-23f.110	65536	d7077149	b08f5a9ee03641c20bdd5e5c9671a22c740150c6	master_rom	60001	good	no
ap-24f.118	65536	0bdef11b	ed687600962ed2ca3a8e67cbd84fa5486778eade	master_rom	60000	good	no
ap-19c.80	65536	0908e468	a2d725993bd4cd5425468736154fd3dd9dd7b060	slave_rom	1	good	no
ap-21c.97	65536	38a056fb	67c8ae58670cebde0771854e1fb5fc2eb2543ecc	slave_rom	0	good	no
ap-20a.89	131072	92d24b5e	1ea270d46a607e47b7e0961b532316aa05dc8f4e	slave_rom	40001	good	no
ap-22a.105	131072	a8458a92	43674731c2e9962c2bfbb73a85484cf03d6be223	slave_rom	40000	good	no
ap-27d.151	65536	294b4d79	2b03418a12a2aaf3919b98161d8d0ce6ae29a2bb	sound_rom	0	good	no
ap-00c.15	131072	ad1ddc2b	81f64663c4892ab5fb0e2dc99513dbfee73f15b8	sprites:sprites_l	0	good	no
ap-01c.22	131072	6286ff00	920da4a3a441dbf54ad86c0f4fb6f47a867e9cda	sprites:sprites_l	1	good	no
ap-04c.58	131072	dc6d55e4	9f48f8d6aa1a329a71913139a8d5a50d95a9b9e5	sprites:sprites_l	2	good	no
ap-05c.65	131072	2e6e495f	af610f265da53735b20ddc6df1bda47fc54ee0c3	sprites:sprites_l	3	good	no
ap-02c.34	131072	af4ee7cb	4fe2361b7431971b07671f145abf1ea5861d01db	sprites:sprites_l	80000	good	no
ap-03c.46	131072	60ab495c	18340d4fba550495b1e52f8023a0a2ec6349dfeb	sprites:sprites_l	80001	good	no
ap-06c.71	131072	0ea90e55	b16d6b8be4853797507d3e5c933a9dd1d451308e	sprites:sprites_l	80002	good	no
ap-07c.75	131072	ba685543	140a2b708d4e4de4d207fc2c4a96a5cab8639988	sprites:sprites_l	80003	good	no
ap-08c.14	131072	6437b580	2b2ba42add18bbec04fbcf53645a8d44b972e26a	sprites:sprites_h	0	good	no
ap-09c.21	131072	54d18ef9	40ebc6ea49b2a501fe843d60bec8c32d07f2d25d	sprites:sprites_h	1	good	no
ap-12c.57	131072	f95cf5cf	ce373c648cbf3e4863bbc3a1175efe065c75eb13	sprites:sprites_h	2	good	no
ap-13c.64	131072	67a248c3	cc945f7cfecaaab5075c1a3d202369b070d4c656	sprites:sprites_h	3	good	no
ap-10c.33	131072	74418df4	cc1206b10afc2de919b2fb9899486122d27290a4	sprites:sprites_h	80000	good	no
ap-11c.45	131072	195bf78e	c3c472f3c4244545b89491b6ebec4f838a6bbb73	sprites:sprites_h	80001	good	no
ap-14c.70	131072	58f7fe16	a5b87b42b85808c226df0d2a7b7cdde12d474a41	sprites:sprites_h	80002	good	no
ap-15c.74	131072	1ffd5496	25efb568957fc9441a40a7d64cc6afe1a14b392b	sprites:sprites_h	80003	good	no
ap-18d.73	32768	55e664bf	505bec8b5ff3f9fa2c5fb1213d54683347905be1	text	0	good	no
ap-17d.68	32768	6199afe4	ad8c0ed6c33d984bb29c89f2e7fc7e5a923cefe3	text	8000	good	no
ap-16d.63	32768	f115656d	61798858dc0172192d89e666696b2c7642756899	text	10000	good	no
ap-28c.171	131072	b349f0c2	cb1ff1c0e784f669c87ab1eccd3b358950761b74	oki	0	good	no
ap-29c.176	65536	b38fced3	72f61a719f393957bcccf14687bfbb2e7a5f7aee	oki	20000	good	no
am27s29.ic41	512	c981f1e0	7d8492d9f4033ab3734c09ee23016a0b210648b5	proms	0	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	sub	Motorola MC68000	12500000
cpu	audiocpu	NEC V20	8000000
cpu	sub2	Zilog Z80	6250000
audio	lspeaker	Speaker
audio	rspeaker	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	oki	OKI MSM6295 ADPCM	2000000

device_ref

name
v30
m68000
v20
z80
nvram
m58990
i8255
screen
tzb215_sprites
palette
gfxdecode
palette
speaker
speaker
ym2151
okim6295

adjuster

name	default
VR1	100

sound

channels
2

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
stick		3		no	0	255	25	79

port, analog

port_tag	analog_masks
:DSW
:IN0
:STICK_X	255
:STICK_Y	255
:THROTTLE	255
:VR1

dipswitch

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default
3	0	yes
4	1	no
5	2	no
6	3	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default
Easy	4	no
Normal	0	yes
Hard	8	no
Hardest	12	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	no
On	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	1792

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no

value

name	value	default
3 Coins/1 Credit	512	no
2 Coins/1 Credit	256	no
3 Coins/2 Credits	1792	no
1 Coin/1 Credit	0	yes
2 Coins/3 Credits	1536	no
1 Coin/2 Credits	768	no
1 Coin/5 Credits	1024	no
1 Coin/6 Credits	1280	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	2048

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2048	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	4096

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4096	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	8192

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8192	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	16384

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16384	no

Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Test	DSW	32768

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
