Attack Pla Rail (Japan, AP1/VER.A)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
aplarail	namco/namcos12.cpp		no	no	no	yes	Attack Pla Rail (Japan, AP1/VER.A)	1998	Namco / Tomy

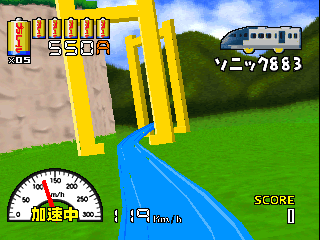

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
aplarail	30068	29/12/2025 11:31:15	320	240	96	96	0	Format24bppRgb	305:MAME 0.167 (Oct 28 2015)	b2fdd5962513e27568ce07ed53efd26eb90a9122

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	480	60.000000								no
jvs:namco_cyberlead:rs232:namco_cyberlead_led:led	raster	180	768	128	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
ap1vera.2e	2097152	386ffe26	27b4bb0f0b178b4236e18d7ef9d810d1afc99798	maincpu:rom	0	good	no
ap1vera.2j	2097152	cab954e1	3d3b8cfbb8160bb0c421af88137b9de7f8ea22bf	maincpu:rom	1	good	no
ap1rom0.ic9	8388608	c8042aad	48d4205535fd20ffc99a0caab6c5f9c66b7f64ed	bankedroms	0	good	no
ap1rom1.ic10	8388608	0f3210ec	d3e0782f01e952a27d4fbe2470159e92ba57a57a	bankedroms	800000	good	no
ap1rom2.ic11	8388608	9ef8382d	bb1e56a4911bfc9c4f763f35885da74a1c1e96c5	bankedroms	1000000	good	no
ap1fl3l.ic7	2097152	b52c2df6	9d07b546395486e7cae86d24c8a352d9e48d00d4	bankedroms	1800000	good	no
ap1fl3h.ic8	2097152	050af45d	4cd93222b9a2fbfad5c93b60cdb7ccd4d58678d5	bankedroms	1800001	good	no
ap1fl4l.ic5	2097152	9a4109e5	ba59caac5f5a80fc52c507d8a47f322a380aa9a1	bankedroms	1c00000	good	no
ap1fl4h.ic6	2097152	9a4109e5	ba59caac5f5a80fc52c507d8a47f322a380aa9a1	bankedroms	1c00001	good	no
ap1vera.11s	524288	126aaebc	3f5a709c38ca38753d7a93d81e59a7ed48515b92	sub	0	good	no
ap1wave0.ic2	8388608	003abebb	edd70a0cc2f8648d3cbd3457ee36aa3772f97d2e	c352	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Sony CXD8661R	100000000
cpu	sub	Hitachi H8/3002	16934400
cpu	jvs:namco_cyberlead:iocpu	Namco C77	14745600
cpu	jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu	Namco C77	14745600
audio	speaker	Speaker
audio	c352	Namco C352	25401600

device_ref

tag	name
:maincpu	cxd8661r
:maincpu:irq	psxirq
:maincpu:dma	psxdma
:maincpu:mdec	psxmdec
:maincpu:rcnt	psxrcnt
:maincpu:sio0	psxsio0
:maincpu:sio1	psxsio1
:maincpu:ram	ram
:gpu	cxd8654q
:screen	screen
:sub	h83002
:sub:intc	h8h_intc
:sub:adc	h8_adc_3337
:sub:dma	h8h_dma
:sub:dma:0	h8h_dma_channel
:sub:dma:1	h8h_dma_channel
:sub:port4	h8_digital_port
:sub:port6	h8_digital_port
:sub:port7	h8_digital_port
:sub:port8	h8_digital_port
:sub:port9	h8_digital_port
:sub:porta	h8_digital_port
:sub:portb	h8_digital_port
:sub:timer16	h8_timer16
:sub:timer16:0	h8h_timer16_channel
:sub:timer16:1	h8h_timer16_channel
:sub:timer16:2	h8h_timer16_channel
:sub:timer16:3	h8h_timer16_channel
:sub:timer16:4	h8h_timer16_channel
:sub:sci0	h8_sci
:sub:sci1	h8_sci
:sub:watchdog	h8_watchdog
:jvs	jvs_port
:jvs:namco_cyberlead	namco_cyberlead
:jvs:namco_cyberlead:iocpu	namco_c77
:jvs:namco_cyberlead:iocpu:intc	h8_intc
:jvs:namco_cyberlead:iocpu:port1	h8_digital_port
:jvs:namco_cyberlead:iocpu:port2	h8_digital_port
:jvs:namco_cyberlead:iocpu:port3	h8_digital_port
:jvs:namco_cyberlead:iocpu:port4	h8_digital_port
:jvs:namco_cyberlead:iocpu:port5	h8_digital_port
:jvs:namco_cyberlead:iocpu:port6	h8_digital_port
:jvs:namco_cyberlead:iocpu:port7	h8_digital_port
:jvs:namco_cyberlead:iocpu:port8	h8_digital_port
:jvs:namco_cyberlead:iocpu:port9	h8_digital_port
:jvs:namco_cyberlead:iocpu:timer8_0	h8_timer8_channel
:jvs:namco_cyberlead:iocpu:sci0	h8_sci
:jvs:namco_cyberlead:iocpu:sci1	h8_sci
:jvs:namco_cyberlead:rs232	rs232
:jvs:namco_cyberlead:rs232:namco_cyberlead_led	namco_cyberlead_led
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu	namco_c77
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:intc	h8_intc
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:port1	h8_digital_port
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:port2	h8_digital_port
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:port3	h8_digital_port
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:port4	h8_digital_port
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:port5	h8_digital_port
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:port6	h8_digital_port
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:port7	h8_digital_port
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:port8	h8_digital_port
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:port9	h8_digital_port
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:timer8_0	h8_timer8_channel
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:sci0	h8_sci
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:ledcpu:sci1	h8_sci
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:flash	atmel_29c020
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:led	screen
:jvs:namco_cyberlead:jvs	jvs_port
:namco_settings	namco_settings
:rtc	rtc4543
:at28c16	at28c16
:speaker	speaker
:c352	c352

sound

channels
1

feature

type	status	overall
graphics		imperfect

input

players	coins	service	tilt
2	1	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
stick	1	2		yes	139	919	100	10
keypad	2	2		no

port, analog

port_tag	analog_masks
:ADC_0	1023
:ADC_1
:ADC_2
:ADC_3
:DSW
:JVS_COIN1
:JVS_COIN2
:JVS_PLAYER1
:JVS_PLAYER2
:JVS_SYSTEM
:jvs:namco_cyberlead:DSW
:jvs:namco_cyberlead:PORT7
:jvs:namco_cyberlead:rs232:namco_cyberlead_led:DSW

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
jvs	namco_xmiu1	namco_xmiu1	no
jvs	namco_tssio	namco_tssio	no
jvs	namco_amc	namco_amc	no
jvs	namco_asca1	namco_asca1	no
jvs	namco_csz1	namco_csz1	no
jvs	namco_asca3	namco_asca3	no
jvs	namco_cyberleada	namco_cyberleada	no
jvs	namco_emio102	namco_emio102	no
jvs	namco_asca5	namco_asca5	no
jvs	namco_empri101	namco_empri101	no
jvs	namco_asca3a	namco_asca3a	no
jvs	namco_fca10	namco_fca10	no
jvs	namco_fca11	namco_fca11	no
jvs	namco_cyberlead	namco_cyberlead	yes
jvs	namco_fcb	namco_fcb	no
jvs:namco_cyberlead:rs232	namco_cyberlead_led	namco_cyberlead_led	yes
jvs:namco_cyberlead:jvs	namco_xmiu1	namco_xmiu1	no
jvs:namco_cyberlead:jvs	namco_tssio	namco_tssio	no
jvs:namco_cyberlead:jvs	namco_amc	namco_amc	no
jvs:namco_cyberlead:jvs	namco_asca1	namco_asca1	no
jvs:namco_cyberlead:jvs	namco_csz1	namco_csz1	no
jvs:namco_cyberlead:jvs	namco_asca3	namco_asca3	no
jvs:namco_cyberlead:jvs	namco_cyberleada	namco_cyberleada	no
jvs:namco_cyberlead:jvs	namco_emio102	namco_emio102	no
jvs:namco_cyberlead:jvs	namco_asca5	namco_asca5	no
jvs:namco_cyberlead:jvs	namco_empri101	namco_empri101	no
jvs:namco_cyberlead:jvs	namco_asca3a	namco_asca3a	no
jvs:namco_cyberlead:jvs	namco_fca10	namco_fca10	no
jvs:namco_cyberlead:jvs	namco_fca11	namco_fca11	no
jvs:namco_cyberlead:jvs	namco_cyberlead	namco_cyberlead	no
jvs:namco_cyberlead:jvs	namco_fcb	namco_fcb	no

dipswitch

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	64

location

name	number	inverted
DIP SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	128

location

name	number	inverted
DIP SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	jvs:namco_cyberlead:DSW	1

location

name	number	inverted
SW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	jvs:namco_cyberlead:DSW	2

location

name	number	inverted
SW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	jvs:namco_cyberlead:DSW	4

location

name	number	inverted
SW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	jvs:namco_cyberlead:DSW	8

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	jvs:namco_cyberlead:rs232:namco_cyberlead_led:DSW	1

location

name	number	inverted
SW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	jvs:namco_cyberlead:rs232:namco_cyberlead_led:DSW	2

location

name	number	inverted
SW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Disable Epilepsy Filter

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Disable Epilepsy Filter	jvs:namco_cyberlead:rs232:namco_cyberlead_led:DSW	4

location

name	number	inverted
SW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Display Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Test	jvs:namco_cyberlead:rs232:namco_cyberlead_led:DSW	8

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Time	8	yes
4 Times	0	no
