Apricot PC/Xi - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
apricot	act/apricot.cpp		no	no	no	yes	Apricot PC/Xi	1983	ACT

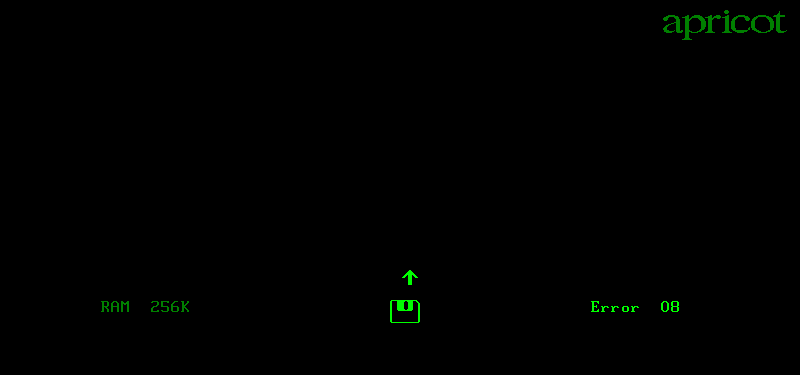

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
apricot	1860	29/12/2025 11:31:16	800	375	96	96	0	Format24bppRgb	305:MAME 0.196 (Mar 28 2018)	4ce0c0acf7f25e0597736aefbe9b32a2293aaddf

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	800	400	37.064492	15000000	950	0	800	426	0	400	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
lo_ve007.u11	8192	e74e14d1	569133b0266ce3563b21ae36fa5727308797deee	bootstrap	0	good	no	ve007
hi_ve007.u9	8192	b04fb83e	cc2b2392f1b4c04bb6ec8ee26f8122242c02e572	bootstrap	1	good	no	ve007
lo_ve009.u11	8192	0c217cc2	0d7a2b61e17966462b555115f962a175fadcf72a	bootstrap	0	good	no	ve009
hi_ve009.u9	8192	7c27f36c	c801bbf904815f76ec6463e948f57e0118a26292	bootstrap	1	good	no	ve009
lo_aug.u11	16384	65ad8f9d	6e94feb115db4e57290462da952649cd1e7a2c49	bootstrap	0	good	no	aug
hi_aug.u9	16384	0b1513c3	1708a0ca40e7c602863d5d3a8e97608883771f80	bootstrap	1	good	no	aug

chip

type	tag	name	clock
cpu	ic91	Intel 8086	5000000
cpu	ic71	Intel 8089 I/O Processor	5000000
audio	mono	Speaker
audio	ic7	SN76489	2000000
audio	ic68:0:d32w:flopsndout	Speaker
audio	ic68:0:d32w:floppysound	Floppy sound	44100
audio	ic68:1:d32w:flopsndout	Speaker
audio	ic68:1:d32w:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
flop_list	apricot_flop	original

device_ref

tag	name
:ic91	i8086
:ic71	i8089
:ic71:1	i8089_channel
:ic71:2	i8089_channel
:ram	ram
:screen	screen
:palette	palette
:ic30	hd6845s
:mono	speaker
:ic7	sn76489
:ic17	i8255
:ic31	pic8259
:ic16	pit8253
:ic16:counter0	pit_counter
:ic16:counter1	pit_counter
:ic16:counter2	pit_counter
:ic14	ttl153
:ic15_rxtxcb	clock
:ic15	z80sio
:ic15:cha	z80sio_channel
:ic15:chb	z80sio_channel
:rs232	rs232
:kbd	apricot_kbd
:kbd:hle	apricotkb_hle
:kbd:hle:rtc	msm5832
:kbd:hle:timer	timer
:centronics	centronics
:centronics:printer	centronics_printer
:centronics:printer:printer	printer_image
:cent_data_in	input_buffer
:cent_data_out	output_latch
:ic68	wd2797
:ic68:0	floppy_connector
:ic68:0:d32w	sony_oa_d32w
:ic68:0:d32w:flopsndout	speaker
:ic68:0:d32w:floppysound	flopsnd
:ic68:1	floppy_connector
:ic68:1:d32w	sony_oa_d32w
:ic68:1:d32w:flopsndout	speaker
:ic68:1:d32w:floppysound	flopsnd
:flop_list	software_list
:exp	apricot_exp_bus
:exp:1	apricot_exp_slot
:exp:2	apricot_exp_slot

biosset

name	description	default
ve007	Ve007 03.04.84	no
ve009	Ve009 18.10.84	yes
aug	Apricot User Group V30	no

sound

channels
3

ramoption

name	default
256K	yes

device, instance

type	tag	interface	name	briefname
printout	centronics:printer:printer		printout	prin
floppydisk	ic68:0:d32w	floppy_3_5	floppydisk1	flop1
floppydisk	ic68:1:d32w	floppy_3_5	floppydisk2	flop2

device, extension

type	tag	interface	extension_names
printout	centronics:printer:printer		prn
floppydisk	ic68:0:d32w	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	ic68:1:d32w	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		2		no	0	255	50	5
keyboard		95		no

port, analog

port_tag	analog_masks
:kbd:hle:mouse_b
:kbd:hle:mouse_x	255
:kbd:hle:mouse_y	255
:kbd:hle:row_0
:kbd:hle:row_1
:kbd:hle:row_2
:kbd:hle:row_3
:kbd:hle:row_4
:kbd:hle:row_5
:kbd:hle:row_6
:kbd:hle:row_7
:kbd:hle:row_8
:kbd:hle:row_9
:kbd:hle:row_a
:kbd:hle:row_b
:kbd:hle:row_c

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
kbd	hle	apricotkb_hle	yes
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	mz1p16	mz1p16	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
ic68:0	d32w	sony_oa_d32w	yes
ic68:0	d31v	sony_oa_d31v	no
ic68:1	d32w	sony_oa_d32w	yes
ic68:1	d31v	sony_oa_d31v	no
exp:1	winchester	apricot_winchester	no
exp:1	512k	apricot_512k_ram	no
exp:1	256k	apricot_256k_ram	no
exp:1	128k	apricot_128k_ram	no
exp:2	winchester	apricot_winchester	no
exp:2	512k	apricot_512k_ram	no
exp:2	256k	apricot_256k_ram	no
exp:2	128k	apricot_128k_ram	no
