mame (0289) • machine apxen • Apricot XEN

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
apxen	act/apxen.cpp		no	no	no	yes	Apricot XEN	1985	ACT

snap

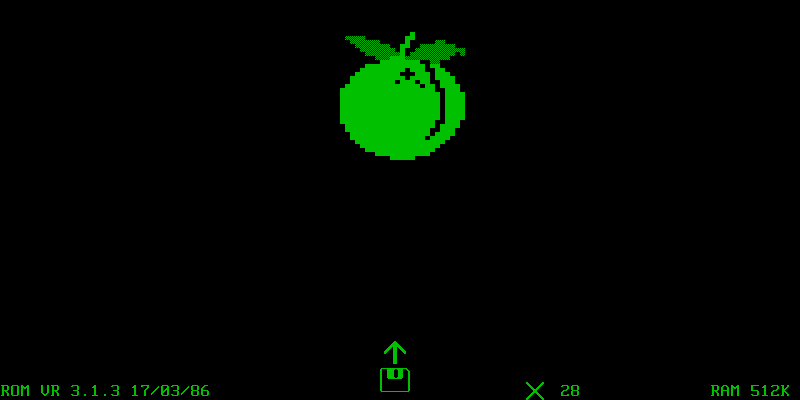

Apricot XEN png snap

Apricot XEN jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
apxen	2789	29/12/2025 11:31:16	800	400	96	96	0	Format24bppRgb	305:MAME 0.235 (Aug 27 2021)	8d81e3d7e9302b8543387dc008482c1ea89b2cce

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
apvideo:mono:screen	raster	0	800	400	72.000000	23040000	800	0	800	400	0	400	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
eeprom.nv	32	c26d455e	ff2d7af6ca21b2fba4c5a9e90926b5049a9fdc86	eeprom	0	good	no
hi-xen_313.ic37	32768	72ee2f09	da11043d40a694802f6d3d27a4359067dd19c8e6	bios	1	good	no
lo-xen_313.ic80	32768	c2a1fd6e	8dfc711dd910bc3d43c1120978ba199a13463068	bios	0	good	no
rodime_ro3055.bin	8192	61d1544a	2177a4c6409c0ee3d3e3e6c659085adf236f8726	hdd	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 80286	7500000
cpu	dma	NEC uPD71071 DMAC	8000000
audio	fdc:0:d32w:flopsndout	Speaker
audio	fdc:0:d32w:flopsnd	Floppy sound	44100
audio	fdc:1:d32w:flopsndout	Speaker
audio	fdc:1:d32w:flopsnd	Floppy sound	44100
audio	mono	Speaker
audio	sn	SN76489	2000000

softwarelist

tag	name	status	filter
flop_list	apxen_flop	original

device_ref

tag	name
:maincpu	i80286
:mem	address_map_bank
:io	address_map_bank
:dma	upd71071
:eeprom	93c06_16
:pic0	pic8259
:pic1	pic8259
:daisy	xen_daisy
:pit	pit8253
:pit:counter0	pit_counter
:pit:counter1	pit_counter
:pit:counter2	pit_counter
:z80int	ipt_merge_any_hi
:cio	z8536
:sio	z80sio
:sio:cha	z80sio_channel
:sio:chb	z80sio_channel
:rtc	mm58274c
:fdc	wd2797
:fdc:0	floppy_connector
:fdc:0:d32w	sony_oa_d32w
:fdc:0:d32w:flopsndout	speaker
:fdc:0:d32w:flopsnd	flopsnd
:fdc:1	floppy_connector
:fdc:1:d32w	sony_oa_d32w
:fdc:1:d32w:flopsndout	speaker
:fdc:1:d32w:flopsnd	flopsnd
:flop_list	software_list
:apvideo	apricot_video
:apvideo:mono	apricot_mono_display
:apvideo:mono:screen	screen
:apvideo:mono:palette	palette
:apvideo:mono:crtc	hd6845s
:apvideo:mono:gfxdecode	gfxdecode
:mono	speaker
:sn	sn76489
:kbd	apricot_kbd
:kbd:hle	apricotkb_hle
:kbd:hle:rtc	msm5832
:kbd:hle:timer	timer

sound

channels
3

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	fdc:0:d32w	floppy_3_5			floppydisk1	flop1
floppydisk	fdc:1:d32w	floppy_3_5			floppydisk2	flop2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	fdc:0:d32w	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	fdc:1:d32w	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		2		no	0	255	50	5
keyboard		95		no

port, analog

port_tag	analog_masks
:kbd:hle:mouse_b
:kbd:hle:mouse_x	255
:kbd:hle:mouse_y	255
:kbd:hle:row_0
:kbd:hle:row_1
:kbd:hle:row_2
:kbd:hle:row_3
:kbd:hle:row_4
:kbd:hle:row_5
:kbd:hle:row_6
:kbd:hle:row_7
:kbd:hle:row_8
:kbd:hle:row_9
:kbd:hle:row_a
:kbd:hle:row_b
:kbd:hle:row_c

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	d32w	sony_oa_d32w	yes
fdc:1	d32w	sony_oa_d32w	yes
apvideo	mono	apricot_mono_display	yes
kbd	hle	apricotkb_hle	yes
