Arcade Classics (prototype) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
arcadecl	atari/arcadecl.cpp		no	no	no	yes	Arcade Classics (prototype)	1992	Atari Games

snap

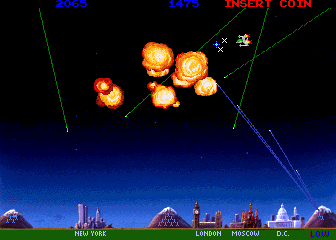

Arcade Classics (prototype) png snap

Arcade Classics (prototype) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
arcadecl	19270	29/12/2025 11:31:16	336	240	96	96	0	Format24bppRgb	305:MAME 0.139u1 (Aug 12 2010)	5adfd27a36c4bc07b2f0f794af78068e1ea5b56b

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	336	240	59.922743	7159090	456	12	348	262	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
pgm0	524288	b5b93623	a2e96c0c6eceb3d8f205e28d6b8197055aeb8cc4	maincpu	0	good	no
prog1	524288	e7efef85	05f2119d8ecc27f6efea85f5174ea7da404d7e9b	maincpu	1	good	no
atcl_mob	524288	0e9b3930	51a449b79235d6ca5189e671399acff72a2d3dc8	gfx1	0	good	no
adpcm	524288	03ca7f03	87ff53599b6f0cdfa5a1779773e09cc5cfe3c2a8	oki	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	14318181
audio	mono	Speaker
audio	oki	OKI MSM6295 ADPCM	1193181

device_ref

tag	name
:maincpu	m68000
:scantimer	timer
:eeprom	2804
:watchdog	watchdog
:palette	palette
:screen	screen
:mono	speaker
:oki	okim6295
:gfxdecode	gfxdecode
:mob	atarimo

sound

channels
1

input

players	coins	service	tilt
2	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
trackball	1	3		yes	0	65280	50	32
trackball	2	3		yes	0	255	50	32

port, analog

port_tag	analog_masks
:COIN
:PLAYER1
:PLAYER2
:STATUS
:TRACKX1	255
:TRACKX2	255
:TRACKY1	255
:TRACKY2	255

dipswitch

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	STATUS	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no
