Arrange Ball - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
arrball	handheld/hh_tms1k.cpp		no	no	no	yes	Arrange Ball	1980	A-One LSI

snap

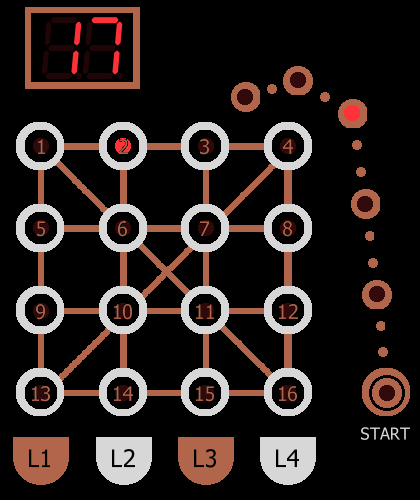

Arrange Ball png snap

Arrange Ball jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
arrball	15809	29/12/2025 11:31:16	420	500	96	96	0	Format24bppRgb	305:MAME 0.188 (Jul 26 2017)	c3862f1a117b74876afc1d669eb6d0235904421c

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mp0166	1024	a78694db	362aa6e356288e8df7da610246bd01fe72985d57	maincpu	0	good	no
tms1000_common2_micro.pla	867	d33da3cf	13c4ebbca227818db75e6db0d45b66ba5e207776	maincpu:mpla	0	good	no
tms1000_arrball_output.pla	365	ffc206fb	339be3f066fb2f075211c554e81260b49cd83d15	maincpu:opla	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Texas Instruments TMS1000	325000
audio	mono	Speaker
audio	speaker	Filtered DAC

device_ref

tag	name
:maincpu	tms1000
:maincpu:mpla	pla
:maincpu:opla	pla
:display	pwm_display
:mono	speaker
:speaker	speaker_sound_device

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		2		no

port, analog

port_tag	analog_masks
:IN.0

configuration

Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Speed	IN.0	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Slow	0	yes
Fast	8	no
