AS-1 Controller (set 1) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
as1	sega/segas32.cpp		no	no	no	yes	AS-1 Controller (set 1)	1993	Sega

snap

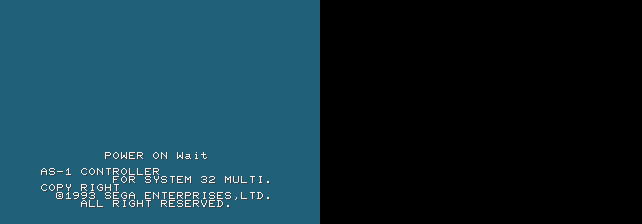

AS-1 Controller (set 1) png snap

AS-1 Controller (set 1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
as1	4200	29/12/2025 11:31:16	642	224	96	96	0	Format24bppRgb	305:MAME 0.208 (Mar 27 2019)	aed4031ebdfc9460f62b83d75cbdad8af33de8b1

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
mainpcb:screen	raster	0	416	224	60.000000	6539520	416	0	416	262	0	224	no
mainpcb:screen2	raster	0	416	224	60.000000	6539520	416	0	416	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr-15420.ic37	131072	1f9747b0	51d1fbccf6960967d4458ba26fad42ac51978c67	mainpcb:maincpu	0	good	no
epr-15421.ic40	131072	aa96422a	21cf327d102f5c7c4a4e41d889d9b4d10c44de35	mainpcb:maincpu	2	good	no
epr-15367.ic31	131072	0220f078	9fab79fc91764ecf678bfa4d38d1b4054e258b76	mainpcb:soundcpu	0	good	no
epr-15422.ic3	524288	6c61ba6d	b41237ced4a2e8741ae0339c333bea4221903690	mainpcb:gfx1	0	good	no
epr-15423.ic11	524288	5178912a	b637451c28877ddc93c9920bea356888b4c8eea3	mainpcb:gfx1	1	good	no

chip

type	tag	name	clock
cpu	mainpcb:maincpu	NEC V70	20000000
cpu	mainpcb:soundcpu	Zilog Z80	8000000
audio	mainpcb:sleft	Speaker
audio	mainpcb:sright	Speaker
audio	mainpcb:ymsnd	YM3438 OPN2C	8000000
audio	mainpcb:sega	Yamaha YMW-258-F	10000000

device_ref

tag	name
:mainpcb	segas32_pcb_multi
:mainpcb:maincpu	v70
:mainpcb:soundcpu	z80
:mainpcb:io_chip_0	315_5296
:mainpcb:io_chip_1	315_5296
:mainpcb:eeprom	93c46_16
:mainpcb:v60_irq0	timer
:mainpcb:v60_irq1	timer
:mainpcb:gfxdecode	gfxdecode
:mainpcb:palette	palette
:mainpcb:screen	screen
:mainpcb:screen2	screen
:mainpcb:sleft	speaker
:mainpcb:sright	speaker
:mainpcb:ymsnd	ym3438
:mainpcb:sega	ymw258f
:mainpcb:s32comm	s32comm

sound

channels
2

feature

type	status	overall
graphics	imperfect
sound	imperfect

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:mainpcb:P1_A
:mainpcb:P1_B
:mainpcb:P2_A
:mainpcb:P2_B
:mainpcb:PORTC_A
:mainpcb:PORTC_B
:mainpcb:SERVICE12_A
:mainpcb:SERVICE12_B
:mainpcb:SERVICE34_A
:mainpcb:SERVICE34_B

dipswitch

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	mainpcb:SERVICE34_A	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	mainpcb:SERVICE34_A	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	mainpcb:SERVICE34_A	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	mainpcb:SERVICE34_A	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

clones

name	description
as1a	AS-1 Controller (set 2)
as1b	AS-1 Controller (set 3)
as1c	AS-1 Controller (set 4)
