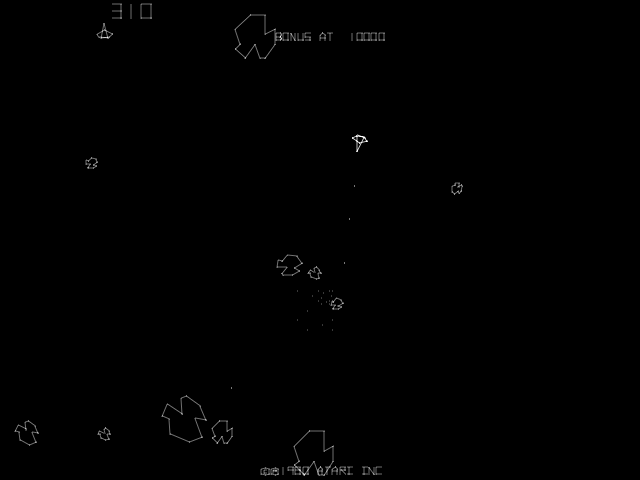

Asteroids Deluxe (rev 1) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
astdelux1	atari/asteroid.cpp		no	no	no	yes	Asteroids Deluxe (rev 1)	1980	Atari	astdelux	astdelux

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	vector	0			61.523438								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
036430-01.d1	2048	8f5dabc6	5d7543e19acab99ddb63c0ffd60f54d7a0f267f5	maincpu	6000	good	no
036431-01.ef1	2048	157a8516	9041d8c2369d004f198681e02b59a923fa8f70c9	maincpu	6800	good	no
036432-01.fh1	2048	fdea913c	ded0138a20d80317d67add5bb2a64e6274e0e409	maincpu	7000	good	no
036433-01.j1	2048	ef09bac7	6a4b37dbfe4e6badc4e81036b1430da2e9cb8ca4	maincpu	7800	good	no
036800-01.r2	2048	3b597407	344fea2e5d84acce365d76daed61e96b9b6b37cc	maincpu	4800	good	no
036799-01.np2	2048	7d511572	1956a12bccb5d3a84ce0c1cc10c6ad7f64e30b40	maincpu	5000	good	no	036799-01.np2
034602-01.c8	256	97953db8	8cbded64d1dd35b18c4d5cece00f77e7b2cab2ad	dvg:prom	0	good	no	034602-01.c8

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	1512000
cpu	pokey	Atari C012294 POKEY	1512000
audio	mono	Speaker
audio	discrete	Discrete Sound
audio	pokey	Atari C012294 POKEY	1512000

device_ref

name
m6502
watchdog
ttl153
vector_device
screen
dvg
er2055
speaker
discrete
ls259
pokey

sound

channels
1

input

players	coins	service	tilt
1	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons		5		no

port, analog

port_tag	analog_masks
:COCKTAIL
:DSW1
:DSW2
:IN0
:IN1

configuration

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	COCKTAIL	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	1	no

dipswitch

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DSW1	3

location

name	number	inverted
R5	1	no
R5	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	0	yes
German	1	no
French	2	no
Spanish	3	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW1	12

location

name	number	inverted
R5	3	no
R5	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2-4	0	yes
3-5	4	no
4-6	8	no
5-7	12	no

Minimum Plays

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Plays	DSW1	16

location

name	number	inverted
R5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
2	16	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW1	32

location

name	number	inverted
R5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Hard	32	no
Easy	0	yes

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW1	192

location

name	number	inverted
R5	7	no
R5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10000	0	yes
12000	64	no
15000	128	no
None	192	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW2	3

location

name	number	inverted
L8	1	no
L8	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	0	no
1 Coin/1 Credit	1	yes
1 Coin/2 Credits	2	no
Free Play	3	no

Right Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Right Coin	DSW2	12

location

name	number	inverted
L8	3	no
L8	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
X 6	0	no
X 5	4	no
X 4	8	no
X 1	12	yes

Center Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Center Coin	DSW2	16

location

name	number	inverted
L8	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
X 2	0	no
X 1	16	yes

Bonus Coins

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Coins	DSW2	224

location

name	number	inverted
L8	6	no
L8	7	no
L8	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin Each 5 Coins	96	no
2 Coins Each 4 Coins	128	no
1 Coin Each 4 Coins	160	no
1 Coin Each 2 Coins	192	no
None	224	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
