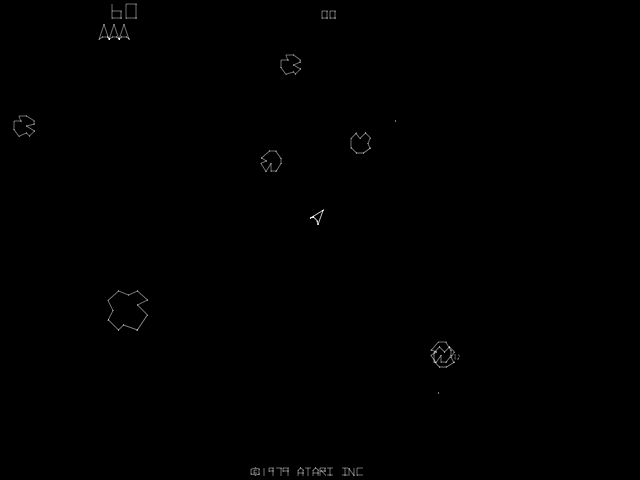

Asteroids (rev 2) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
asteroid2	atari/asteroid.cpp		no	no	no	yes	Asteroids (rev 2)	1979	Atari	asteroid	asteroid

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	vector	0			61.523438								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
035145-02.ef2	2048	0cc75459	2af85c9689b878155004da47fedbde5853a18723	maincpu	6800	good	no
035144-02.h2	2048	096ed35c	064d680ded7f30c543f93ae5ca85f90d550f73e5	maincpu	7000	good	no
035143-02.j2	2048	312caa02	1ce2eac1ab90b972e3f1fc3d250908f26328d6cb	maincpu	7800	good	no	035143-02.j2
035127-02.np3	2048	8b71fd9e	8cd5005e531eafa361d6b7e9eed159d164776c70	maincpu	5000	good	no	035127-02.np3
034602-01.c8	256	97953db8	8cbded64d1dd35b18c4d5cece00f77e7b2cab2ad	dvg:prom	0	good	no	034602-01.c8

chip

type	tag	name	clock
cpu	maincpu	MOS Technology 6502	1512000
audio	mono	Speaker
audio	discrete	Discrete Sound

device_ref

name
m6502
watchdog
ttl153
output_latch
vector_device
screen
dvg
speaker
discrete
ls259

sound

channels
1

input

players	coins	service	tilt
1	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons		5		no

port, analog

port_tag	analog_masks
:COCKTAIL
:DSW1
:IN0
:IN1

configuration

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	COCKTAIL	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	1	no

dipswitch

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DSW1	3

location

name	number	inverted
SW	1	no
SW	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
English	0	yes
German	1	no
French	2	no
Spanish	3	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW1	4

location

name	number	inverted
SW	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	4	yes
4	0	no

Center Mech

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Center Mech	DSW1	8

location

name	number	inverted
SW	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
X 1	0	yes
X 2	8	no

Right Mech

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Right Mech	DSW1	48

location

name	number	inverted
SW	5	no
SW	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
X 1	0	yes
X 4	16	no
X 5	32	no
X 6	48	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	192

location

name	number	inverted
SW	7	no
SW	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	192	no
1 Coin/1 Credit	128	yes
1 Coin/2 Credits	64	no
Free Play	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
