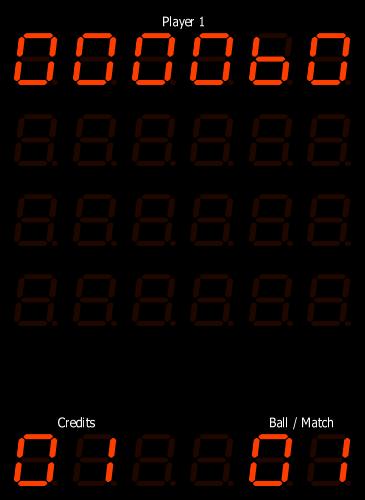

The Atarians - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
atarians	pinball/atari_s1.cpp	genpin	no	no	yes	yes	The Atarians	1976	Atari

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
atarian.e00	2048	6066bd63	e993497d0ca9f056e18838494089def8bdc265c9	maincpu	0	good	no
atarian.e0	2048	45cb0427	e286930ca36bdd0f79acefd142d2a5431fa8005b	maincpu	800	good	no
07028-01.bin	512	e8034b5b	6959912c530efcc4a0c690800867fb0d1f33627f	proms	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6800	1000000
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	dac	4-Bit R-2R DAC

device_ref

name
m6800
watchdog
speaker
samples
speaker
dac_4bit_r2r
timer
timer

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		38		no

port, analog

port_tag	analog_masks
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:X9

dipswitch

Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match	X0	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	X0	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	0	no
3	8	yes

Special

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Special	X0	48

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball	0	no
Free Game	32	yes
20000 points	16	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	X0	195

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	2	no
1 Coin/3 Credits	1	no
1 Coin/4 Credits	3	no
2 Coins/1 Credit	128	no
2 Coins/3 Credits	130	no
2 Coins/5 Credits	129	no

Replay score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Replay score	X1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	1	no
Low	0	yes

Last Ball double bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Last Ball double bonus	X1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

Spelling Award

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Spelling Award	X1	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball	0	yes
20,000 points	4	no

Exceed replay score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Exceed replay score	X1	48

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Nothing	0	no
Extra Ball	32	no
Replay	16	yes

Max Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Credits	X1	192

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	yes
12	128	no
15	64	no
20	192	no

High score (bit 0)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High score (bit 0)	X9	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	16	no
Low	0	yes

High score (bit 1)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High score (bit 1)	X9	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	32	yes
Low	0	no

High score (bit 2)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High score (bit 2)	X9	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	64	yes
Low	0	no

High score (bit 3)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High score (bit 3)	X9	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High	128	no
Low	0	yes
