Aurail (set 3, US) (unprotected) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
aurail	sega/segas16b.cpp		no	no	no	yes	Aurail (set 3, US) (unprotected)	1990	Sega / Westone

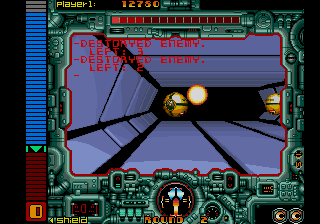

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
aurail	12267	29/12/2025 11:31:16	320	224	96	96	0	Format24bppRgb	305:MAME 0.139u3 (Sep 20 2010)	f74b25a6e19daac12b39971f38c91a33cfff5b87

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
epr-13577.a7	131072	6701b686	ce1e99a516b34241bfe2fbe42d105970ad6e6ddb	maincpu	0	good	no
epr-13576.a5	131072	1e428d94	53c0c2d946822157974c8505fd301f8001fc3401	maincpu	1	good	no
epr-13447.a8	131072	70a52167	51512d4ee1e63902375b197cf04170744b099d88	maincpu	40000	good	no
epr-13445.a6	131072	28dfc3dd	b1d6d3e31a48062a91cc9b7b6ff68bfde0a3ea1c	maincpu	40001	good	no
mpr-13450.a14	131072	0fc4a7a8	b46b22a6b0ead19551e67abfb3304c52b02b8d29	tiles	0	good	no
mpr-13465.b14	131072	e08135e0	cd748f4a8f67f562174fa9c6edb966c77b488e75	tiles	20000	good	no
mpr-13451.a15	131072	1c49852f	d08d6991c203400f685fada2445a22a7eceeee04	tiles	40000	good	no
mpr-13466.b15	131072	e14c6684	f9b0d45e01a6df2b3875b493db9fa41bf37d79f0	tiles	60000	good	no
mpr-13452.a16	131072	047bde5e	e759baedcbb637a6c14af461b8a492554cadc9e4	tiles	80000	good	no
mpr-13467.b16	131072	6309fec4	f90c9679bade3cfbaa7949e412410c29d5bfa4d3	tiles	a0000	good	no
mpr-13453.b1	131072	5fa0a9f8	d9d67cc006a608d48e37aa89359f1a9403172b00	sprites	1	good	no
mpr-13457.b5	131072	0d1b54da	c7a6393f9e13adabe93b7a86aa7845c5f4d188f1	sprites	0	good	no
mpr-13454.b2	131072	5f6b33b1	5d397bdaa2c7a9ce82cc9134bfeb78418dc613b0	sprites	40001	good	no
mpr-13458.b6	131072	bad340c3	e04ef028e44054d34831d3617c5a6348823cfebd	sprites	40000	good	no
mpr-13455.b3	131072	4e80520b	8147793ee0023ac18f633d756ecc53aef1980e95	sprites	80001	good	no
mpr-13459.b7	131072	7e9165ac	32114095f96fb0ae385c9bf31dd97a99ef182aaa	sprites	80000	good	no
mpr-13456.b4	131072	5733c428	865203ebee9d98e67324c46915d8835d0289ee0c	sprites	c0001	good	no
mpr-13460.b8	131072	66b8f9b3	4bf003a9bed40673d88df51a314eb6bd10f0d039	sprites	c0000	good	no
mpr-13440.a1	131072	4f370b2b	66beb4264d569520d80f8915e1c1fddbf61efb21	sprites	100001	good	no
mpr-13461.b10	131072	f76014bf	b44f0b6fb9dee927d81c62282aa946d8c35766ca	sprites	100000	good	no
mpr-13441.a2	131072	37cf9cb4	f51cee874ad8a824462d2475a23e7016ef64c6b4	sprites	140001	good	no
mpr-13462.b11	131072	1061e7da	bad3560f1ed6a5a79f4ecf85d3843b24ecf22d19	sprites	140000	good	no
mpr-13442.a3	131072	049698ef	dca1a78f0156cfac9acbfb6e47eb3897b579d2ec	sprites	180001	good	no
mpr-13463.b12	131072	7dbcfbf1	0b7be1de57f83b1213805489c6ebfc0f1e5fb4b0	sprites	180000	good	no
mpr-13443.a4	131072	77a8989e	0ad0877a9814fb7c2fb79062a50b1f9ce9420768	sprites	1c0001	good	no
mpr-13464.b13	131072	551df422	cf4cd2b66335853c7c6cce949e79c05e93a39666	sprites	1c0000	good	no
epr-13448.a10	32768	b5183fb9	c8372b57fa486256d49dc5851d6b17c92de593fb	soundcpu	0	good	no
mpr-13449.a11	131072	d3d9aaf9	0fb3a8cb11033accceb3a43a691fb424cf8b9619	soundcpu	10000	good	no
315-5298.b9	235	39b47212	432b47aee5ecbf08a8a6dc2f8379c816feb86328	plds	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

tag	name
:maincpu	m68000
:soundcpu	z80
:nvram	nvram
:mapper	sega_315_5195
:gfxdecode	gfxdecode
:palette	palette
:screen	screen
:sprites	sega_sys16b_sprite
:segaic16vid	segaic16_video
:mono	speaker
:ym2151	ym2151
:upd	upd7759
:netlist	netlist_sound
:netlist:cin0	nl_stream_in
:netlist:cin1	nl_stream_in
:netlist:cin2	nl_stream_in
:netlist:cout0	nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
3 Coins/4 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
3 Coins/4 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	1	yes
Cocktail	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default
2	0	no
3	12	yes
4	8	no
5	4	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80K/200K/500K/1000K	16	yes
100K/300K/700K/1000K	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	32	yes
Hard	0	no

Controller

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Controller	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Player Side	64	yes
2 Players Side	0	no

Special Function Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Special Function Mode	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

clones

name	description
aurailjd	Aurail (set 1, Japan) (bootleg of FD1089A 317-0167 set)
aurailj	Aurail (set 1, Japan) (FD1089A 317-0167)
aurail1d	Aurail (set 2, World) (bootleg of FD1089B 317-0168 set)
aurail1	Aurail (set 2, World) (FD1089B 317-0168)
