name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bbeltzacg	pinball/zac_2.cpp	genpin	no	no	yes	yes	Black Belt (Zaccaria, German speech)	1986	Zaccaria	bbeltzac	bbeltzac

snap

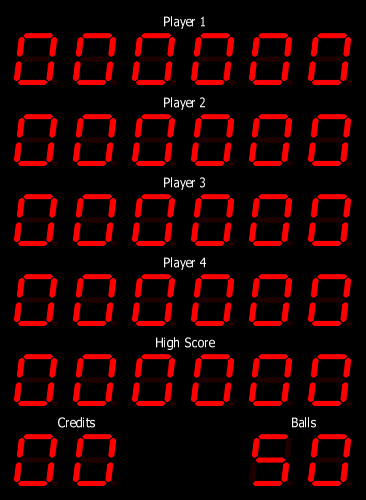

Black Belt (Zaccaria, German speech) png snap

Black Belt (Zaccaria, German speech) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
bbeltzacg	13781	29/12/2025 11:31:16	366	500	96	96	0	Format24bppRgb	305:MAME 0.209 (Apr 24 2019)	00b132a79f1c88c0f4be540e938000da6274b7f5

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
bbz-1.fil	8192	2e7e1575	1b9e6e4ff461962f4c7249bd2a748444cb658c30	maincpu	0	good	no	bbz-1.fil
bbz-2.fil	8192	dbec92ae	7a1c6e5ac81d3cfcbb135a1c8b69e55296fffcc5	maincpu	800	good	no	bbz-2.fil
bbelt_de.1e	8192	f343103d	d0ee91c873a10049f9aae6e762637d0384ff052a	cpu2	a000	good	no
bbz-f.snd	16384	9f58f369	32472d93284c0f1fc2875714b40428406dcf6325	cpu2	c000	good	no	bbz-f.snd

chip

type	tag	name	clock
cpu	maincpu	Signetics 2650	3000000
audio	mechvol	Speaker
audio	samples	Samples

device_ref

tag	name
:maincpu	s2650
:ram	nvram
:zac_2_inttimer	timer
:zac_2_outtimer	timer
:mechvol	speaker
:samples	samples

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		54		no

port, analog

port_tag	analog_masks
:DSW
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

dipswitch

Switch A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch A	DSW	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Switch B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch B	DSW	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Switch C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch C	DSW	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Switch D

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Switch D	DSW	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no
