Bell Ringer - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bellring	pinball/gts3.cpp	genpin	no	no	yes	yes	Bell Ringer	1990	Gottlieb

snap

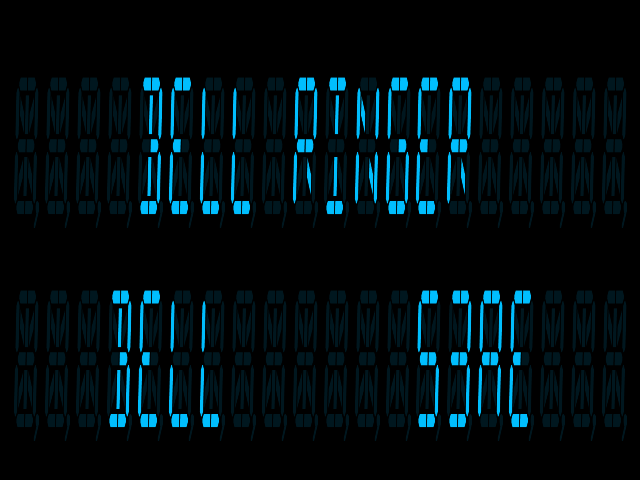

Bell Ringer png snap

Bell Ringer jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
bellring	18436	19/03/2026 20:48:13	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	cd1d5e794c3ea24610a191c4e7439caf6bf32d21

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
br_gprom.bin	65536	a9a59b36	ca6d0e54a5c85ef72485975c632660831a3b8c82	maincpu	0	good	no
br_drom1.bin	32768	99f38229	f63d743e63e88728e8d53320b21b2fda1b6385f8	p5sound:audiocpu	8000	good	no
br_yrom1.bin	32768	d5aab379	b3995f8aa2e54f91f2a0fd010c807fbfbf9ae847	p5sound:speechcpu	8000	good	no

chip

type	tag	name	clock
cpu	maincpu	WDC W65C02	2000000
cpu	p5sound:audiocpu	MOS Technology 6502	2000000
cpu	p5sound:speechcpu	MOS Technology 6502	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	p5sound	Gottlieb Sound pin. 5
audio	p5sound:dac	AD7528 DAC
audio	p5sound:dacvol	AD7528 DAC
audio	p5sound:ay1	AY-3-8913 PSG	2000000
audio	p5sound:ay2	AY-3-8913 PSG	2000000
audio	p5sound:ym2151	YM2151 OPM	4000000

device_ref

tag	name
:maincpu	w65c02
:nvram	nvram
:u4	r65c22
:u5	r65c22
:irq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:mono	speaker
:p5sound	gotsndp5
:p5sound:audiocpu	m6502
:p5sound:speechcpu	m6502
:p5sound:dac	ad7528
:p5sound:dacvol	ad7528
:p5sound:ay1	ay8913
:p5sound:ay2	ay8913
:p5sound:ym2151	ym2151

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		63		no

port, analog

port_tag	analog_masks
:TTS
:X0
:X1
:X10
:X11
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:X9
