BitGraph rev A - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bitgrpha	skeleton/bitgraph.cpp		no	no	no	yes	BitGraph rev A	1981	BBN

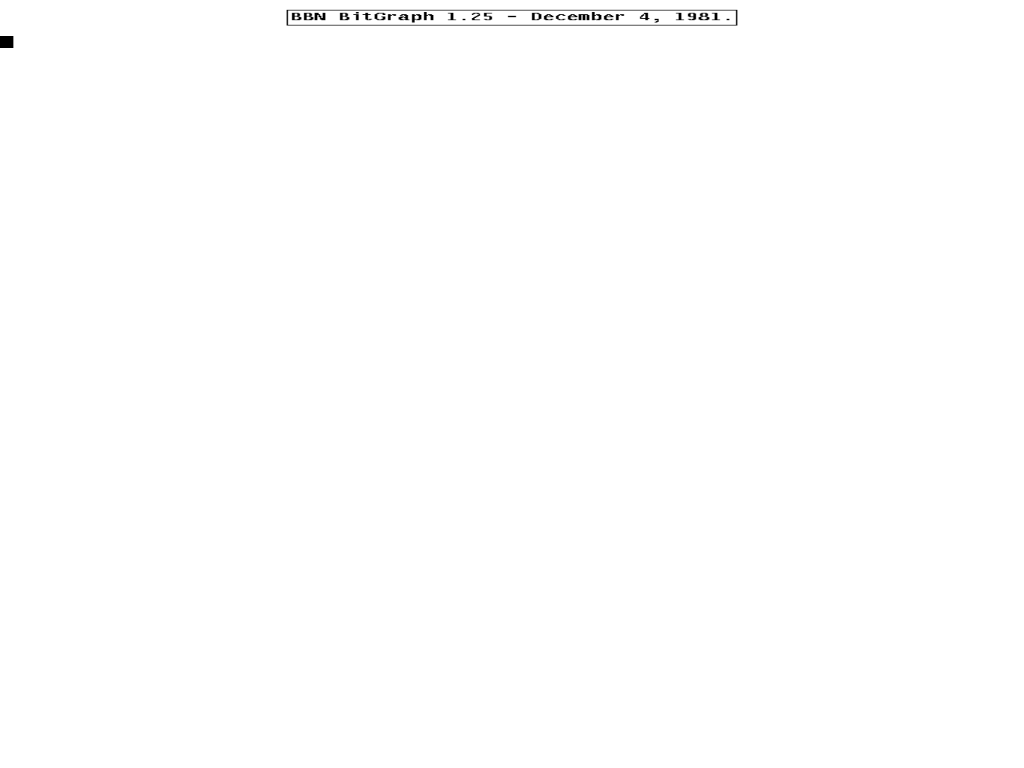

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
bitgrpha	5665	29/12/2025 11:31:17	1024	768	96	96	0	Format24bppRgb	305:MAME 0.198 (May 30 2018)	643a9257c1bec43f8d618664760fd066a604514b

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	90	1024	768	40.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
bg125.rom	32768	b86c974e	5367db80a856444c2a55de22b69a13f97a62f602	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	6900000
cpu	keyboard:l2207:mcu	Intel 8035	3579545
audio	keyboard:l2207:mono	Speaker
audio	keyboard:l2207:beeper	Filtered DAC
audio	mono	Speaker
audio	psg	AY-3-8912A PSG	1294400
