Black Knight (L-4, French speech) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bk_f4	pinball/s7.cpp	genpin	no	no	yes	yes	Black Knight (L-4, French speech)	1980	Williams	bk_l4	bk_l4

snap

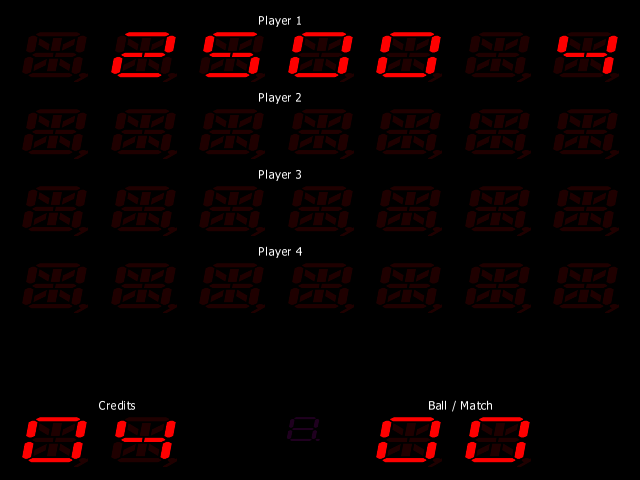

Black Knight (L-4, French speech) png snap

Black Knight (L-4, French speech) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
bk_f4	15935	19/03/2026 21:00:32	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	9eae25b2ac76e84c58314a6ffdc58f319adc6ef2

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
ic26.716	2048	104b78da	c3af2563b3b380fe0e154b737799f6beacf8998c	maincpu	800	good	no	ic26.716
ic14.716	2048	fcbe3d44	92ec4d41beea205ba29530624b68dd1139053535	maincpu	1000	good	no	ic14.716
ic20.716	2048	dfb4b75a	bcf017b01236f755cee419e398bbd8955ae3576a	maincpu	1800	good	no	ic20.716
ic17.532	4096	bb571a17	fb0b7f247673dae0744d4188e1a03749a2237165	maincpu	2000	good	no	ic17.532
speech7f.532	4096	01debff6	dc02199b63ae3309fdac819985f7a40010831634	s6sound:audiocpu	0	good	no
speech5f.532	4096	2d310dce	ad2ad3844659787ee9be4db50b17b8af6f5d0d42	s6sound:audiocpu	1000	good	no
speech6f.532	4096	96bb719b	d602129ce1af1902e46ca26645a9a51324a788d0	s6sound:audiocpu	2000	good	no
speech4f.532	4096	8ee8fc3c	ba7c00f16bdbd7413cec025c28f8b7e7bbcb12bb	s6sound:audiocpu	3000	good	no
sound12.716	2048	6d454c0e	21640b9ed3bdbae8bf27629891f355304e467c64	s6sound:audiocpu	4800	good	no	sound12.716

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	3580000
cpu	s6sound:cpu	Motorola MC6802	3580000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	s6sound	Williams System 6 Sound Board
audio	s6sound:dac	MC1408 DAC
audio	s6sound:hc	HC-55516

device_ref

tag	name
:maincpu	m6808
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia22	pia6821
:pia24	pia6821
:pia28	pia6821
:pia30	pia6821
:nvram	nvram
:mono	speaker
:s6sound	wmss6
:s6sound:cpu	m6802
:s6sound:dac	mc1408
:s6sound:hc	hc55516
:s6sound:pia	pia6821

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
2	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad	1	43		no
keypad	2	1		no

port, analog

port_tag	analog_masks
:DIAGS
:DS1
:DS2
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:s6sound:S6

dipswitch

Speech

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Speech	s6sound:S6	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sounds	s6sound:S6	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Tones	0	no
Synth	64	yes
