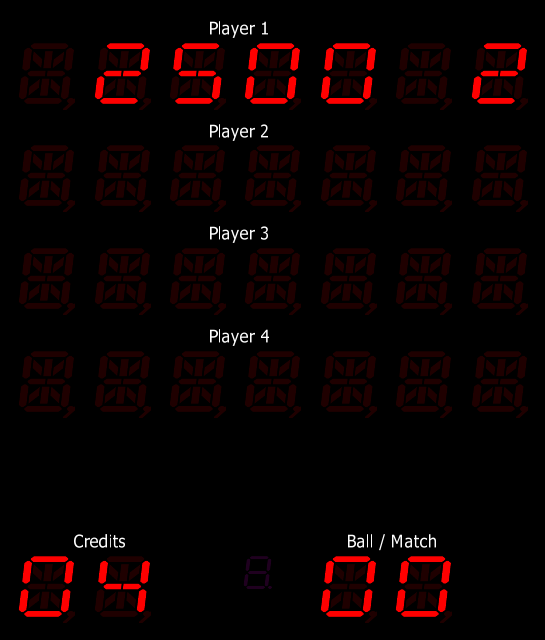

Black Knight (L-2) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bk_l2	pinball/s7.cpp	genpin	no	no	yes	yes	Black Knight (L-2)	1980	Williams	bk_l4	bk_l4

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
bk_rev2.ic26	2048	703b61e1	32013d72d70ed0bfca5eb10769471966c07dba09	maincpu	800	good	no
bk_rev2.ic14	2048	30d87653	2b1b927dfbd7c9ddcea2732e0d4e82c236499338	maincpu	1000	good	no
ic20.716	2048	dfb4b75a	bcf017b01236f755cee419e398bbd8955ae3576a	maincpu	1800	good	no	ic20.716
ic17.532	4096	bb571a17	fb0b7f247673dae0744d4188e1a03749a2237165	maincpu	2000	good	no	ic17.532
speech7.532	4096	c7e229bf	3b2ab41031f507963af828639f1690dc350737af	s6sound:audiocpu	0	good	no	speech7.532
speech5.532	4096	411bc92f	6c8d26fd13ed5eeba5cc40886d39c65a64beb377	s6sound:audiocpu	1000	good	no	speech5.532
speech6.532	4096	fc985005	9df4ad12cf98a5a92b8f933e6b6788a292c8776b	s6sound:audiocpu	2000	good	no	speech6.532
speech4.532	4096	f36f12e5	24fb192ad029cd35c08f4899b76d527776a4895b	s6sound:audiocpu	3000	good	no	speech4.532
sound12.716	2048	6d454c0e	21640b9ed3bdbae8bf27629891f355304e467c64	s6sound:audiocpu	4800	good	no	sound12.716

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	3580000
cpu	s6sound:cpu	Motorola MC6802	3580000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	s6sound	Williams System 6 Sound Board
audio	s6sound:dac	MC1408 DAC
audio	s6sound:hc	HC-55516

device_ref

name
m6808
speaker
samples
pia6821
pia6821
pia6821
pia6821
pia6821
nvram
speaker
wmss6
m6802
mc1408
hc55516
pia6821

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
2	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad	1	43		no
keypad	2	1		no

port, analog

port_tag	analog_masks
:DIAGS
:DS1
:DS2
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:s6sound:S6

dipswitch

Speech

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Speech	s6sound:S6	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sounds	s6sound:S6	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Tones	0	no
Synth	64	yes
