Black Belt - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
blackblt	pinball/by6803.cpp	genpin	no	no	yes	yes	Black Belt	1986	Bally

snap

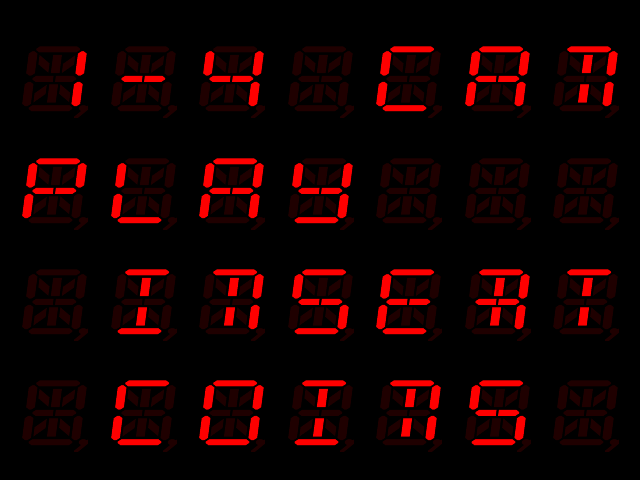

Black Belt png snap

Black Belt jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
blackblt	17754	19/03/2026 20:56:33	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	641f2b970a58483a4deb651d34830a6e36a7db1a

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
u2.cpu	16384	7c771910	1df8ae478c3626a5200215bfca557ca42e064d2b	maincpu	8000	good	no
u3.cpu	16384	bad0f4c3	5e5240fda9f7f7f15f1953f12b132ba1c4fc886e	maincpu	c000	good	no
blck_u7.snd	32768	db8bce07	6327cfbb2761f4d190e2852f3321cdd0cc1e46a8	cpu2	8000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6803	3579545
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker

device_ref

tag	name
:maincpu	m6803
:nvram	nvram
:mechvol	speaker
:samples	samples
:pia0	pia6821
:timer_z	timer
:pia1	pia6821
:mono	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		46		no

port, analog

port_tag	analog_masks
:TEST
:X0
:X1
:X2
:X3
:X4
:X5

clones

name	description
blackblt2	Black Belt (Squawk and Talk)
