Bloxeed (Japan, earlier) (FD1094 317-0139)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bloxeeda	sega/segas18.cpp		no	no	no	yes	Bloxeed (Japan, earlier) (FD1094 317-0139)	1989	Sega	bloxeed	bloxeed

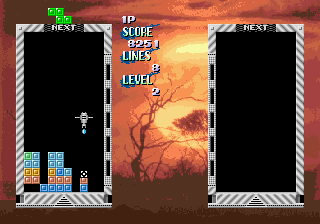

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
bloxeeda	12265	29/12/2025 11:31:17	320	224	96	96	0	Format24bppRgb	305:MAME 0.249.0 (Nov 23 2022)	0c0c7ff6359869230787408509b2d6743dd01c85

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	57.230000	5128036	342	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
epr-12890.a6	131072	b0b85294	8d9142f593eb48a5b22a1b4b1ef7f6805e88f9bb	maincpu	0	good	no
epr-12889.a5	131072	96c67e36	a9370307ca779a892b1e98ba7f2e3415b7188f91	maincpu	1	good	no
317-0139.key	8192	9aae84cb	806515d61ecacb260b2b5e5fe023b494d35ce315	maincpu:key	0	good	no	317-0139.key
opr-12884.b1	65536	e024aa33	d734be240cd05031aaadf9735c0b1b00e8e6d4cb	tiles	0	good	no	opr-12884.b1
opr-12885.b2	65536	8041b814	29fa49ba9a73eed07865a86ea774e2c6a60aed5b	tiles	10000	good	no	opr-12885.b2
opr-12886.b3	65536	de32285e	8994dc128d6a23763e5fcfca1868b336d4aa0a21	tiles	20000	good	no	opr-12886.b3
opr-12891.a11	65536	90d31a8c	1747652a5109ce65add197cf06535f2463a99fdc	sprites	0	good	no	opr-12891.a11
opr-12887.b11	65536	f0c0f49d	7ecd591265165f3149241e2ceb5059faab88360f	sprites	1	good	no	opr-12887.b11
epr-12888.a4	131072	6f2fc63c	3cce22c8f80013f05b5a2d36c42a61a81e4d6cbd	soundcpu	0	good	no	epr-12888.a4

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1094 Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	8000000
audio	gen_vdp	Sega 315-5313 Megadrive VDP	15000000
audio	gen_vdp:snsnd	Sega VDP PSG	1000000
audio	mono	Speaker
audio	ym1	YM3438 OPN2C	8000000
audio	ym2	YM3438 OPN2C	8000000
audio	rfsnd	Ricoh RF5C68	10000000

device_ref

tag	name
:maincpu	fd1094
:soundcpu	z80
:nvram	nvram
:mapper	sega_315_5195
:io	315_5296
:gen_vdp	sega315_5313
:gen_vdp:palette_lut	palette
:gen_vdp:snsnd	segapsg
:gen_vdp:gfx_palette	palette
:gen_vdp:gfx_palette_shadow	palette
:gen_vdp:gfx_palette_hilight	palette
:scantimer	timer
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:sprites	sega_sys16b_sprite
:segaic16vid	segaic16_video
:mono	speaker
:ym1	ym3438
:ym2	ym3438
:rfsnd	rf5c68

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:COINAGE
:DSW
:P1
:P2
:P3
:SERVICE

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	COINAGE	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
3 Coins/4 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	COINAGE	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
3 Coins/4 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Allow VS Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow VS Mode	DSW	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	1	yes
No	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lines Per Level

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lines Per Level	DSW	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default
2	4	no
2	0	no
3	12	yes
4	8	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default
Easy	32	no
Normal	48	yes
Hard	16	no
Hardest	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

High Speed Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Speed Mode	DSW	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
