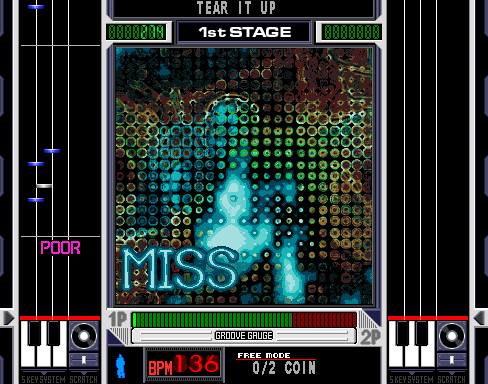

beatmania 6th MIX (ver JA-A) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bm6thmix	konami/djmain.cpp		no	no	no	yes	beatmania 6th MIX (ver JA-A)	2001	Konami

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	488	384	57.996230	16000000	660	12	500	418	0	384	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
a21jaa01.6a	524288	6d7ccbe3	633c69c14dfd70866664b94095fa5f21087428d8	maincpu	0	good	no
a21jaa02.8a	524288	f10076fa	ab9f3e75a36fdaccec411afd77f588f040db139d	maincpu	1	good	no
a21jaa03.19a	524288	ca806266	6b5f9d5089a992347745ab6af4dadaac4e3b0742	gfx1	0	good	no
a21jaa04.20a	524288	71124e79	d9fd8f662ac9c29daf25acd310fd0f27051dea0b	gfx1	1	good	no
a21jaa05.22a	524288	818e34e6	8a9093b92392a065d0cf94d56195a6f3ca611044	gfx1	100000	good	no
a21jaa06.24a	524288	36f2043b	d2846cc10173662029da7c5d686cf89299be2be5	gfx1	100001	good	no
a21jaa07.22d	524288	841d83e1	c85962abcc955e8f11138e03002b16afd3791f0a	k056832	0	good	no
a21jaa08.23d	524288	4e561919	4b91560d9ba367c848d784db760f042d5d76e003	k056832	1	good	no
a21jaa09.25d	524288	181e6f70	82c7ca3068ace9a66b614ead4b90ea6fe4017d51	k056832	100000	good	no
a21jaa10.27d	524288	1ac33595	3173bb8dc420487c4d427e779444a98aad37d51e	k056832	100001	good	no

disk

name	merge	sha1	region	index	writable	status	optional
a21jaa11		ed0a07212a360e75934fc22c56265842cf0829b6	ata:0:hdd	0	yes	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68EC020	16000000
audio	speaker	Speaker
audio	k054539_1	Konami 054539 ADPCM	18432000
audio	k054539_2	Konami 054539 ADPCM	18432000

device_ref

name
m68ec020
ata_interface
ata_slot
idehd
harddisk_image
ata_slot
screen
palette
gfxdecode
k056832
k055555
speaker
k054539
k054539

sound

channels
1

feature

type	status	overall
sound		imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
harddisk	ata:0:hdd:image	ide_hdd,hdd			harddisk	hard

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
harddisk	ata:0:hdd:image	ide_hdd,hdd			chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
2	1	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
dial	1	5		no	0	255	30	15
dial	2	5		no	0	255	30	15

port, analog

port_tag	analog_masks
:BTN1
:BTN2
:BTN3
:DSW1
:DSW2
:DSW3
:TT1	255
:TT2	255
:UNK1
:UNK2

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	31

location

name	number	inverted
SW1	8	no
SW1	7	no
SW1	6	no
SW1	5	no
SW1	4	no

value

name	value	default
1P 8C / 2P 16C / Continue 8C	0	no
1P 8C / 2P 16C / Continue 7C	1	no
1P 8C / 2P 16C / Continue 6C	2	no
1P 7C / 2P 14C / Continue 7C	3	no
1P 7C / 2P 14C / Continue 6C	4	no
1P 7C / 2P 14C / Continue 5C	5	no
1P 6C / 2P 12C / Continue 6C	6	no
1P 6C / 2P 12C / Continue 5C	7	no
1P 6C / 2P 12C / Continue 4C	8	no
1P 5C / 2P 10C / Continue 5C	9	no
1P 5C / 2P 10C / Continue 3C	11	no
1P 5C / 2P 10C / Continue 4C	10	no
1P 4C / 2P 8C / Continue 4C	12	no
1P 4C / 2P 8C / Continue 3C	13	no
1P 4C / 2P 8C / Continue 2C	14	no
1P 3C / 2P 6C / Continue 3C	15	no
1P 3C / 2P 6C / Continue 2C	16	no
1P 3C / 2P 6C / Continue 1C	17	no
1P 3C / 2P 4C / Continue 3C	18	no
1P 3C / 2P 4C / Continue 2C	19	no
1P 3C / 2P 4C / Continue 1C	20	no
1P 3C / 2P 3C / Continue 3C	21	no
1P 3C / 2P 3C / Continue 2C	22	no
1P 3C / 2P 3C / Continue 1C	23	no
1P 2C / 2P 3C / Continue 2C	26	no
1P 2C / 2P 3C / Continue 1C	27	no
1P 2C / 2P 4C / Continue 2C	24	no
1P 2C / 2P 4C / Continue 1C	31	yes
1P 2C / 2P 2C / Continue 2C	28	no
1P 2C / 2P 2C / Continue 1C	29	no
1P 1C / 2P 2C / Continue 1C	30	no
1P 1C / 2P 1C / Continue 1C	25	no

Free Play (Ignore Coinage)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play (Ignore Coinage)	DSW1	32

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	64

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	128

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Expert Mode Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Expert Mode Difficulty	DSW2	3

location

name	number	inverted
SW2	8	no
SW2	7	no

value

name	value	default
Level 0	2	no
Level 1	3	yes
Level 2	1	no
Level 3	0	no

Normal / Free Mode Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Normal / Free Mode Difficulty	DSW2	12

location

name	number	inverted
SW2	6	no
SW2	5	no

value

name	value	default
Level 0	8	no
Level 1	12	yes
Level 2	4	no
Level 3	0	no

Level Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Level Display	DSW2	16

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	96

location

name	number	inverted
SW2	3	no
SW2	2	no

value

name	value	default
Loud	96	yes
Medium	32	no
Low	64	no
Silent	0	no

Score Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Score Display	DSW2	128

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	1

location

name	number	inverted
SW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	2

location

name	number	inverted
SW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Event Mode Stages

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Event Mode Stages	DSW3	28	DSW3	32	ne	32

location

name	number	inverted
SW3	4	no
SW3	3	no
SW3	2	no

value

name	value	default
1 Stage	12	no
2 Stages	20	no
3 Stages	16	no
4 Stages	28	yes
4 Stages	4	no
4 Stages	24	no
4 Stages	0	no
5 Stages	8	no

Normal / Free Mode Stages

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Normal / Free Mode Stages	DSW3	28	DSW3	32	eq	32

location

name	number	inverted
SW3	4	no
SW3	3	no
SW3	2	no

value

name	value	default
3 / 2 Stages	16	no
4 / 3 Stages	28	yes
4 / 3 Stages	12	no
4 / 3 Stages	20	no
4 / 3 Stages	4	no
4 / 3 Stages	24	no
4 / 3 Stages	0	no
5 / 3 Stages	8	no

Event Mode (Ignore Coinage)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Event Mode (Ignore Coinage)	DSW3	32

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no
