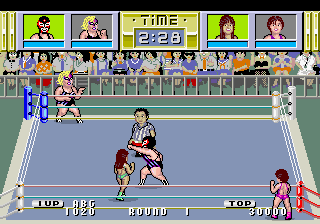

Body Slam (8751 317-0015) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bodyslam	sega/segas16a.cpp		no	no	no	yes	Body Slam (8751 317-0015)	1986	Sega

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000	5376240	342	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
epr-10066.b9	32768	6cd53290	68ef83ad99a26a507d9bc4cd715462169f4ac41f	maincpu	0	good	no
epr-10063.b6	32768	dd849a16	b8cb9f2685a739698a3ed18f76617fd4ac9cb424	maincpu	1	good	no
epr-10067.b10	32768	db22a5ce	95c37d4913fa31d5edf02661681bc83deec731d9	maincpu	10000	good	no
epr-10064.b7	32768	53d6b7e0	00bfa1487479629f60e1cc1b98ced47e4cb07964	maincpu	10001	good	no
epr-10068.b11	32768	15ccc665	b088a9bcb1499854794b2dbf4c689f3ae3ce2808	maincpu	20000	good	no
epr-10065.b8	32768	0e5fa314	44e36fde102ba6aef2c3b4374ddc21690f2fe527	maincpu	20001	good	no
epr-10321.c9	32768	cd3e7cba	4d3cfc7346c6e63e2221193601f949162d0e4f90	gfx1	0	good	no
epr-10322.c10	32768	b53d3217	baebf20925e9f8ab6660f041a24721716d5b7d92	gfx1	8000	good	no
epr-10323.c11	32768	915a3e61	6504a8b26b7b4880971cd69ac2c8aae30dcfa18c	gfx1	10000	good	no
epr-10012.c5	32768	990824e8	bd45f75d07cb4e17583c2d76050e5f819f4b7efe	sprites	1	good	no
epr-10016.b2	32768	af5dc72f	97bbb76940c702e642d8222dda71447b8f60b616	sprites	0	good	no
epr-10013.c6	32768	9a0919c5	e39e60c1e834b3b46bf2ef1c5952841bebe66ade	sprites	10001	good	no
epr-10017.b3	32768	62aafd95	e1e3a95fd11cabf81f44ac2dd3f951d3094725e6	sprites	10000	good	no
epr-10027.c7	32768	3f1c57c7	1336da8dc167a323f09534a2f62ae6f9c62290e4	sprites	20001	good	no
epr-10028.b4	32768	80d4946d	d4c96a18ef6c2ac6bd9d153d8862a3af894642e8	sprites	20000	good	no
epr-10015.c8	32768	582d3b6a	4f1d0060682e3fc1147082286e00e6a296a95da2	sprites	30001	good	no
epr-10019.b5	32768	e020c38b	d13d38a64f2afa7df3cbccef2fe505a4421b73ad	sprites	30000	good	no
epr-10026.b1	32768	123b69b8	c0614a8c822991e257f7218908247df278056de8	soundcpu	0	good	no
7751.bin	1024	6a9534fc	67ad94674db5c2aab75785668f610f6f4eccd158	upd7751	0	good	no
epr-10029.c1	32768	7e4aca83	703486b96d493941ee87267e8363220a851f008e	upd7751data	0	good	no
epr-10030.c2	32768	dcc1df0b	a82a557fa48f4b3e1ab38f61b84d749cd417e80f	upd7751data	8000	good	no
epr-10031.c3	32768	ea3c4472	ad8eac2d3d14fd6aba713f4d624861c17aabf757	upd7751data	10000	good	no
epr-10032.c4	32768	0aabebce	fab12df8f4eab270be491c6c025d832c338e1e83	upd7751data	18000	good	no
317-0015.bin	4096	833869e2	2675fda669351e958be28ca28de276abb2bbc99a	mcu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	4000000
cpu	upd7751	NEC uPD7751	6000000
cpu	mcu	Intel 8751	8000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000
audio	dac	8-Bit R-2R DAC

device_ref

name
m68000
z80
upd7751
i8243
nvram
watchdog
i8255
screen
sega_sys16a_sprite
segaic16_video
gfxdecode
palette
speaker
generic_latch_8
ym2151
dac_8bit_r2r
i8751

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Timer Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Timer Speed	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default
Slowest	12	yes
Slow	8	no
Fast	4	no
Fastest	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default
Easy	128	no
Normal	192	yes
Hard	64	no
Hardest	0	no
