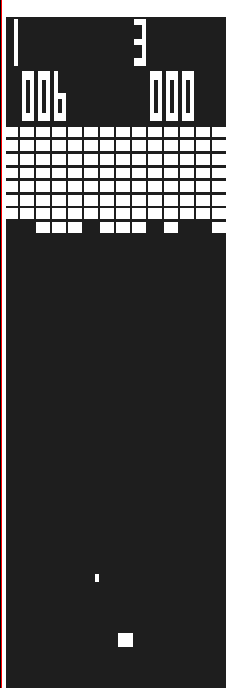

Breakout - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
breakout	atari/pong.cpp		no	no	no	yes	Breakout	1976	Atari

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	90	896	252	63.450645	14326648	896	0	896	252	0	252	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

chip

type	tag	name	clock
cpu	maincpu	Netlist CPU Device	1000000000
audio	speaker	Speaker
audio	dac	16-Bit R-2R Twos Complement DAC

device_ref

name
netlist_cpu
nl_analog_in
nl_analog_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_logic_in
nl_analog_out
nl_analog_out
nl_analog_out
nl_analog_out
nl_analog_out
nl_analog_out
screen
fixfreq
speaker
dac_16bit_r2r_tc

adjuster

name	default
Monitor - Signal Gain	266
Monitor - H Back porch width	80
Monitor - H Front porch width	32
Monitor - H Sync width	64
Monitor - H Visible	720
Monitor - Scanline Height	100
Monitor - Sync threshold mV	1000
Monitor - V Back porch width	20
Monitor - V Front porch width	0
Monitor - V Sync width	4
Monitor - V Sync threshold mV	600
Monitor - V Visible	228

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
paddle	1	1		no	0	255	1	200
paddle	2			no	0	255	1	200

port, analog

port_tag	analog_masks
:DIPS
:IN0
:PADDLE0	255
:PADDLE1	255
:fixfreq:ENABLE
:fixfreq:GAIN
:fixfreq:HBACKPORCH
:fixfreq:HFRONTPORCH
:fixfreq:HSYNC
:fixfreq:HVISIBLE
:fixfreq:SCANLINE_HEIGHT
:fixfreq:SYNCTHRESHOLD
:fixfreq:VBACKPORCH
:fixfreq:VECTOR
:fixfreq:VFRONTPORCH
:fixfreq:VSYNC
:fixfreq:VSYNCTHRESHOLD
:fixfreq:VVISIBLE

configuration

Display Monitor sliders

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Monitor sliders	fixfreq:ENABLE	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Visual Timing Debug

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Visual Timing Debug	fixfreq:ENABLE	2

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Display gray test pattern

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display gray test pattern	fixfreq:ENABLE	4	VECTOR	1	eq	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Interlace mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Interlace mode	fixfreq:ENABLE	8	VECTOR	1	eq	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Interlaced	0	yes
Progressive	8	no

Use vector rendering

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Use vector rendering	fixfreq:VECTOR	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

dipswitch

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	DIPS	1

location

name	number	inverted
SW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	yes
5	1	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DIPS	2

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	2	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DIPS	4

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Cocktail	0	yes
Upright	4	no

Free Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play	DIPS	240

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
No Free Play	0	yes
100	16	no
200	32	no
300	48	no
400	64	no
500	80	no
600	96	no
700	112	no
800	128	no
