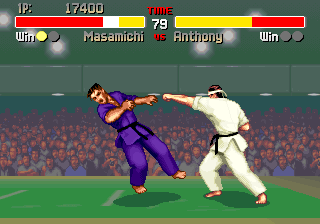

Battle K-Road (Korea) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
btlkroadk	psikyo/psikyo.cpp		no	no	no	yes	Battle K-Road (Korea)	1994	Psikyo	btlkroad	btlkroad

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	59.922743	7159090	456	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
4,dot.u46	262144	e724d429	8b5f80366fd22d6f7e7d8a9623de4fe231303267	maincpu	0	good	no
5,dot.u39	262144	c0d65765	a6a26e6b9693a2ef245e9aaa4c9daa888aebb360	maincpu	2	good	no
3,k.u71	131072	e0f0c597	cc337633f1f579baf0f8ba1dd65c5d51122a7e97	audiocpu	0	good	no
u14.bin	2097152	282d89c3	3b4b17f4a37efa2f7e232488aaba7c77d10c84d2	gfx1	0	good	no	u14.bin
u24.bin	2097152	bbe9d3d1	9da0b0b993e8271a8119e9c2f602e52325983f79	gfx1	200000	good	no	u24.bin
u15.bin	2097152	d4d1b07c	232109db8f6e137fbc8826f38a96057067cb19dc	gfx1	400000	good	no	u15.bin
u33.bin	2097152	4c8577f1	d27043514632954a06667ac63f4a4e4a31870511	gfx2	0	good	no	u33.bin
u56.bin	1048576	51d73682	562038d08e9a4389ffa39f3a659b2a29b94dc156	ymsnd:adpcma	0	good	no	u56.bin
u64.bin	524288	0f33049f	ca4fd5f3906685ace1af40b75f5678231d7324e8	ymsnd:adpcmb	0	good	no	u64.bin
u3.bin	262144	30d541ed	6f7fb5f5ecbce7c086185392de164ebb6887e780	spritelut	0	good	no	u3.bin
tibpal16l8.u69	260			plds	0	nodump	no
tibpal16l8.u19	260			plds	200	nodump	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68EC020	16000000
cpu	audiocpu	Sharp LZ8420M	8000000
audio	mono	Speaker
audio	ymsnd	YM2610 OPNB	8000000

device_ref

name
m68ec020
lz8420m
screen
gfxdecode
palette
buffered_spriteram32
speaker
ym2610
generic_latch_8

sound

channels
1

input

players	coins	service	tilt
2	2	yes	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	6	8	no
joy	2	6	8	no

port, analog

port_tag	analog_masks
:DSW
:P1_P2

configuration

Region

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Region	DSW	15

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Japan	15	no
USA & Canada (Jaleco license)	14	no
Korea	12	yes
Hong Kong	10	no
Taiwan	6	no
World	0	no

dipswitch

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	256

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	512

location

name	number	inverted
SW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	1024

location

name	number	inverted
SW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	2048

location

name	number	inverted
SW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	4096

location

name	number	inverted
SW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	8192

location

name	number	inverted
SW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16384

location

name	number	inverted
SW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	32768

location

name	number	inverted
SW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	65536

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	65536	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	131072

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	131072	no
On	0	yes

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	786432

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	524288	no
Normal	786432	yes
Hard	262144	no
Hardest	0	no

Blood Effects

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Blood Effects	DSW	1048576

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1048576	yes

Handicap Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Handicap Mode	DSW	2097152

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2097152	yes
On	0	no

Use DSW 3 (Debug)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Use DSW 3 (Debug)	DSW	4194304

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4194304	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	8388608

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8388608	yes
On	0	no

Coin Slot

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot	DSW	16777216

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Shared	16777216	yes
Individual [Free Play]	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	234881024

location

name	number	inverted
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3 Coins/1 Credit	167772160	no
2 Coins/1 Credit	201326592	no
1 Coin/1 Credit	234881024	yes
1 Coin/2 Credits	134217728	no
1 Coin/3 Credits	100663296	no
1 Coin/4 Credits	67108864	no
1 Coin/5 Credits	33554432	no
1C 6C [Free Play]	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	1879048192

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3 Coins/1 Credit	1342177280	no
2 Coins/1 Credit	1610612736	no
1 Coin/1 Credit	1879048192	yes
1 Coin/2 Credits	1073741824	no
1 Coin/3 Credits	805306368	no
1 Coin/4 Credits	536870912	no
1 Coin/5 Credits	268435456	no
1C 6C [Free Play]	0	no

2C Start, 1C Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
2C Start, 1C Continue	DSW	2147483648

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2147483648	yes
On [Free Play]	0	no
