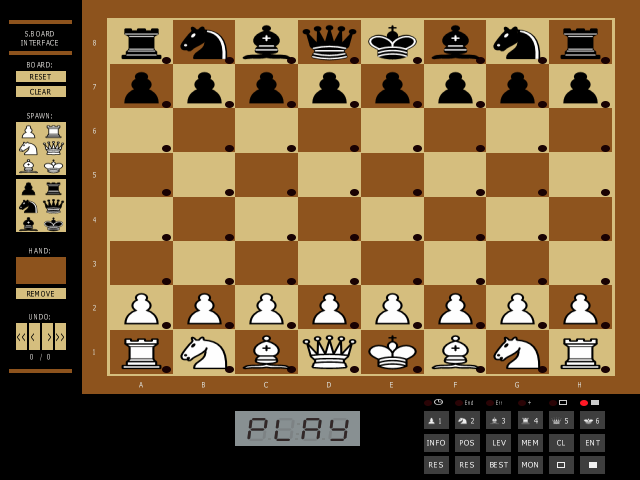

Mephisto Blitz- und Problemlösungs-Modul (set 3) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bupb	hegenerglaser/mm2.cpp		no	no	no	yes	Mephisto Blitz- und Problemlösungs-Modul (set 3)	1985	Hegener + Glaser	bup	bup

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
a1	16384	99c6293d	10f6fa425afeff65146cede02a3a454c6f170af9	maincpu	8000	good	no
b1	16384	b446c9be	8523d7f35a65c77b42bf43f5fb6036740331fd4a	maincpu	c000	good	no

chip

type	tag	name	clock
cpu	maincpu	Rockwell R65C02	3686400
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	r65c02
:outlatch	hc259
:board	msboard
:board:board	sensorboard
:board:led_pwm	pwm_display
:display	mdisplay1
:display:lcd_pwm	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		18		no

port, analog

port_tag	analog_masks
:KEY.0
:KEY.1
:RESET
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.11
:board:board:RANK.12
:board:board:RANK.13
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
