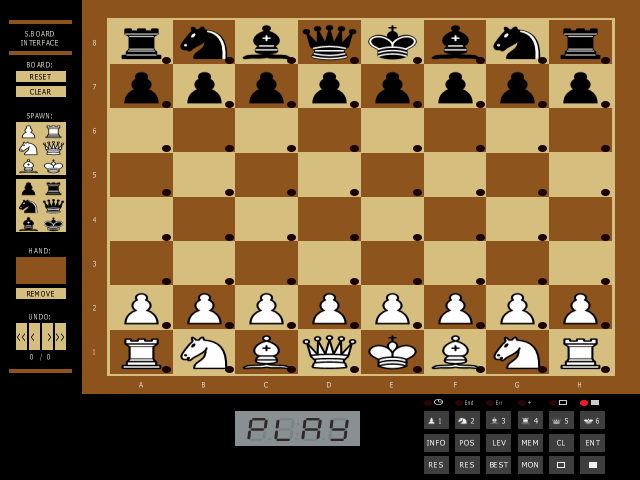

Mephisto Blitz- und Problemlösungs-Modul (prototype) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
bupp	hegenerglaser/mm2.cpp		no	no	no	yes	Mephisto Blitz- und Problemlösungs-Modul (prototype)	1985	Hegener + Glaser	bup	bup

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
8-b_18.1.85	16384	e1e9625a	8a757e28b7afca2a092f8ff419087e06b07b743e	maincpu	8000	good	no	bup_1.bin
c-f_18.1.85	16384	8f59ba3f	a8302f302919183d25a0ef1bbb79c5edd298349e	maincpu	c000	good	no

chip

type	tag	name	clock
cpu	maincpu	Rockwell R65C02	2097152
audio	speaker	Speaker
audio	beeper	Beep	4096

device_ref

tag	name
:maincpu	r65c02
:outlatch	hc259
:board	msboard
:board:board	sensorboard
:board:led_pwm	pwm_display
:display	mdisplay1
:display:lcd_pwm	pwm_display
:speaker	speaker
:beeper	beep

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		18		no

port, analog

port_tag	analog_masks
:KEY.0
:KEY.1
:RESET
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.11
:board:board:RANK.12
:board:board:RANK.13
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
