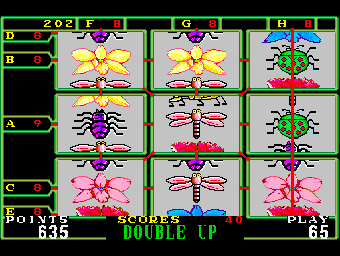

Butterfly Video Game (version U863M) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
butrflya	bordun/skylncr.cpp		no	no	no	yes	Butterfly Video Game (version U863M)	2006	Bordun International	butrfly	butrfly

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	256	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
u15.u15	32768	31f7dca8	c433b3a4f5c7f504dfc89f499fa244e59235bc89	maincpu	0	good	no
u48	16384	39c391c5	326f4d72d546bc902542e628a6e87dc941ef0ef4	maincpu	c000	good	no
101.u26	131072	2ff775ea	2219c75cbac2969485607446ab116587bdee7278	gfx1	0	good	no	u29
102.u25	131072	029d2214	cf8256157db0b297ed457b3da6b6517907128843	gfx1	1	good	no	u31
103.u24	131072	37bad677	c077f0c07b097b376a01e5637446e4c4f82d9e28	gfx1	40000	good	no	u33
104.u23	131072	d14c7713	c229ef64f3b0a04ff8e27bc56cff6a55ca34b80c	gfx1	40001	good	no	u35
105.u22	131072	15051537	086c38c05c605f297a7bc470eb51763a7648e72c	gfx2	0	good	no	u52
106.u21	131072	8e34d029	ae316f2f34768938a07d62db110ce59d2751abaa	gfx2	1	good	no	u54
107.u20	131072	226cb483	89efa0e11700bcab0024a6058a5f1ee6b4a09953	gfx2	40000	good	no	u56
108.u19	131072	a69b5994	f7f849c752740089a49dc6693822466d73010ea0	gfx2	40001	good	no	u58

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

name
z80
nvram
i8255
i8255
ticket_dispenser
screen
gfxdecode
palette
ramdac
ramdac
speaker
ay8910

sound

channels
1

input

players	coins	service	tilt
1	3	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		12		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:IN1
:IN2
:IN3
:IN4

dipswitch

Main Game Percentage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Percentage	DSW1	14

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
75%	14	yes
78%	12	no
81%	10	no
84%	8	no
87%	6	no
90%	4	no
93%	2	no
96%	0	no

D-UP Percentage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
D-UP Percentage	DSW1	17

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
60%	17	yes
70%	1	no
80%	16	no
90%	0	no

Reels Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reels Speed	DSW1	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Slow	32	yes
Fast	0	no

Bonus Score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Score	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
32	64	yes
24	0	no

Key Out

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key Out	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
x1	0	yes
x100	128	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Double-Up

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double-Up	DSW2	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	4	yes

Payout Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Limit	DSW2	24

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	0	no
1000	24	no
2000	16	no
5000	8	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Clown Percentage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clown Percentage	DSW2	192

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
60%	192	yes
70%	128	no
80%	64	no
90%	0	no

Coinage A, B & C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage A, B & C	DSW3	7

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin / 1 Credit	0	no
1 Coin / 5 Credits	1	no
1 Coin / 10 Credits	2	no
1 Coin / 20 Credits	3	no
1 Coin / 30 Credits	4	no
1 Coin / 40 Credits	5	no
1 Coin / 50 Credits	6	no
1 Coin / 100 Credit	7	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Max Win Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Win Bonus	DSW3	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10000	32	yes
20000	0	no

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW3	192

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	192	yes
8	128	no
16	64	no
32	0	no

Remote Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remote Credits	DSW4	7

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Pulse / 100 Credits	0	no
1 Pulse / 110 Credits	1	no
1 Pulse / 120 Credits	2	no
1 Pulse / 130 Credits	3	no
1 Pulse / 200 Credits	4	no
1 Pulse / 400 Credits	5	no
1 Pulse / 500 Credits	6	no
1 Pulse / 1000 Credits	7	yes

Max Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Bet	DSW4	24

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
32	24	no
64	16	no
72	8	no
80	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
