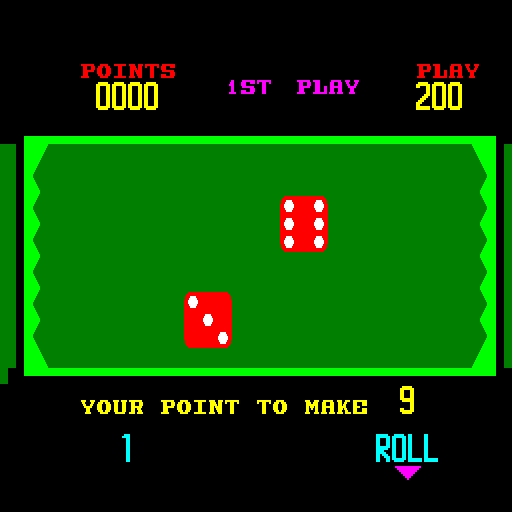

Casino Five (3315-02, U5-2B) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
casino5	merit/merit.cpp		no	no	no	yes	Casino Five (3315-02, U5-2B)	1989	Merit

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	256	76.293945	10000000	512	0	512	256	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
3315-02_u5-2b.u5	8192	31640f41	22d22ea1b1ae1ff189629ffd4963fabcc300fca8	maincpu	0	good	no
3315-02_u6-2b.u6	16384	03851536	904bf76567f965e70c0baf545e2f77d07f1c286b	maincpu	2000	good	no
3315-02_u7-2b.u7	16384	76acb03f	87bfd82015dd704a732f4a03dd470980af1dee72	maincpu	6000	good	no
chr7_u39.u39	8192	6662f607	6b423f8de011d196700839af0be37effbf87383f	gfx1	0	good	no
chr7_u38.u38	8192	a014b44f	906d426b1de75f26030c19dcd599b6570909f510	gfx1	2000	good	no
chr7_u37.u37	8192	cb12e139	06fe91281faae5d0c0ae4b3cd8ad103bd3995c38	gfx1	4000	good	no
chr8_u40a.u40	8192	b13a3fb1	25760aa27c88b8be248a87df724bf8797d179e7a	gfx2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	2500000
audio	mono	Speaker
audio	aysnd	AY-3-8912A PSG	1250000

device_ref

name
z80
i8255
i8255
screen
mc6845
speaker
ay8912
nvram

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		7		no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:IN2

dipswitch

Enable Draw Poker

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Draw Poker	DSW	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Enable Black Jack

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Black Jack	DSW	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

Enable Dice Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Dice Game	DSW	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Enable Foto Finish

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Foto Finish	DSW	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Enable Acey Deucey

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Acey Deucey	DSW	16

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	32

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	64

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Percentage Out

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Out	IN1	192

location

name	number	inverted
Special	1	no
Special	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
75%	0	no
80%	128	no
85%	192	yes
90%	64	no
