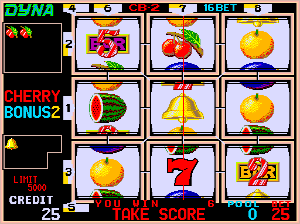

Cherry Bonus II (V2.00 06/01) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cb2	igs/goldstar.cpp		no	no	no	yes	Cherry Bonus II (V2.00 06/01)	1989	Dyna

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
dyna_cb2_280.ic3	32768	ad930734	e47f827dbecc7679aa403d838922d69763736356	maincpu	0	good	no
5.7h	32768	28e7b2c4	b457d1da74da562f4151e188786551692435367b	gfx1	0	good	no
6.8h	32768	0625782b	0bcc92f91b7b13ae6e87938379228108a47a8920	gfx1	8000	good	no
7.9h	32768	31144af6	bc7ada0b0b255de14b2ffed46256213880d2e586	gfx1	10000	good	no
1.1h	8192	d902512a	7e67e6942415d3580255f587060f69a50b75f445	gfx2	0	good	no
2.2h	8192	4baf17f8	748630bcadbc40aaa64c0e3b82aca8cd28972cf8	gfx2	2000	good	no
3.4h	8192	5fe4deb5	a10206d1f0040b448da38444556364db6b21b940	gfx2	4000	good	no
4.5h	8192	e3bc9e64	a0ba18c0138233be8cb0b36f123cef16136df99b	gfx2	6000	good	no
u4.bin	256	23e81049	78071dae70fad870e972d944642fb3a2374be5e4	proms	0	good	no
u5.bin	256	526cf9d3	eb779d70f2507d0f26d225ac8f5de8f2243599ca	proms	100	good	no
u2.bin	32	c6b41352	d7c3b5aa32e4e456c9432a13bede1db6d62eb270	proms2	0	good	no
u3.bin	256	1d668d4a	459117f78323ea264d3a29f1da2889bbabe9e4be	unkprom	0	good	no
u1.bin	32	6df3f972	0096a7f7452b70cac6c0752cb62e24b643015b5c	unkprom2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	snsnd	SN76489	3000000
audio	aysnd	YM2149 SSG	1500000

device_ref

name
z80
i8255
i8255
i8255
screen
gfxdecode
palette
nvram
speaker
sn76489
ym2149
ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		16		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:IN0
:IN1
:IN2
:IN3
:IN4

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Hopper Coin Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Coin Switch	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Active Low	2	yes
Active High	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Payout Switch	4	yes
Automatic	0	no

'7' In Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
'7' In Double Up Game	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Lose	8	no
Even	0	yes

Double Up Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Pay Rate	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80%	16	yes
90%	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Special Odds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Special Odds	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
None	192	no
Limited to X 300 (X 1000)	128	no
Limited to X 500 (X 5000)	64	no
Limited to X 1000 (X 10000)	0	yes

Main Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Pay Rate	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80%	7	yes
83%	6	no
86%	5	no
89%	4	no
92%	3	no
95%	2	no
98%	1	no
101%	0	no

Hopper Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Limit	DSW2	24

location

name	number	inverted
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	24	no
500	16	no
1000	8	no
Unlimited	0	yes

Over 100 Bet Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Over 100 Bet Sound	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Paytable Settings

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Paytable Settings	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low Pay	64	yes
High Pay	0	no

Double Up Game Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Type	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Reels (automatic)	128	yes
Cards (Big/Small)	0	no

Coin D Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Rate	DSW3	15

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10 Coins/1 Credit	15	no
5 Coins/1 Credit	1	no
5 Coins/2 Credits	2	no
4 Coins/1 Credit	3	no
3 Coins/1 Credit	4	no
2 Coins/1 Credit	5	no
2 Coins/3 Credits	6	no
1 Coin/1 Credit	7	yes
1 Coin/2 Credits	8	no
1 Coin/3 Credits	9	no
1 Coin/5 Credits	10	no
1 Coin/10 Credits	11	no

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW3	112

location

name	number	inverted
DSW4	5	no
DSW4	6	no
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10 Coins/1 Credit	112	no
9 Coins/1 Credit	16	no
6 Coins/1 Credit	32	no
5 Coins/1 Credit	48	no
3 Coins/1 Credit	64	no
2 Coins/1 Credit	80	no
1 Coin/1 Credit	96	yes

4th Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
4th Coin	DSW3	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
As Coin A	128	yes
As Hopper Line	0	no

Key In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Rate	DSW4	7

location

name	number	inverted
DSW3	1	no
DSW3	2	no
DSW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/5 Credits	0	no
1 Coin/10 Credits	1	no
1 Coin/20 Credits	2	no
1 Coin/25 Credits	3	no
1 Coin/40 Credits	4	no
1 Coin/50 Credits	5	no
1 Coin/60 Credits	6	no
1 Coin/100 Credits	7	yes

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW4	56

location

name	number	inverted
DSW3	4	no
DSW3	5	no
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	56	yes
1 Coin/2 Credits	8	no
1 Coin/4 Credits	16	no
1 Coin/5 Credits	24	no
1 Coin/6 Credits	32	no
1 Coin/10 Credits	40	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	64

location

name	number	inverted
DSW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	128

location

name	number	inverted
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
