mame (0289) • machine cbonus • Cherry Bonus (Dyna v1.01 20fev)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cbonus	igs/goldstar.cpp		no	no	no	yes	Cherry Bonus (Dyna v1.01 20fev)	1988	Dyna

snap

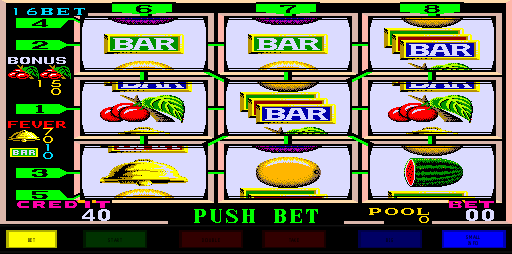

Cherry Bonus (Dyna v1.01 20fev) png snap

Cherry Bonus (Dyna v1.01 20fev) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
cbonus	11403	20/01/2026 16:28:20	512	254	96	96	0	Format24bppRgb	305:MAME 0.284 (mame0284)	14b3b7698bc5c0699c110ccd55853baf0914ba61

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
1.bin	8192	dc2e3af5	d6b775601444274acaf8645e8df53c78219ac7e7	gfx2	0	good	no
2.bin	8192	14f36329	09ceb73e4cc5c83740ce2bfc65468b39e3b87cbe	gfx2	2000	good	no
3.bin	8192	d8189823	26731dab01237c8d1b53861db0840cf66282d8e1	gfx2	4000	good	no
4.bin	8192	cee3d9fd	987875fa4417940641b5a18636165d05db8c89ad	gfx2	6000	good	no
5.bin	32768	a9b236cd	956a85b52b55bd0a1b7464af1c96d4943bb3eba5	gfx1	0	good	no
6.bin	32768	a7c953a1	a4a6b19b57c41f9f004b7891e5bbc07340febac0	gfx1	8000	good	no
7.bin	32768	242f11ef	4ea502ff0eafeb4c825ef9cfec64519d6878953b	gfx1	10000	good	no
8.bin	65536	4f2d0626	e3707716c696f68e9151afc4ca737d959ddd6de2	maincpu	0	good	no
u1.bin	32	267004c8	2c790e71b1c21961c5ced7b0ce8fbbb9fa5d806b	unkprom2	0	good	no
u2.bin	32	c6b41352	d7c3b5aa32e4e456c9432a13bede1db6d62eb270	proms2	0	good	no
u3.bin	256	1d668d4a	459117f78323ea264d3a29f1da2889bbabe9e4be	unkprom	0	good	no
u4.bin	256	23e81049	78071dae70fad870e972d944642fb3a2374be5e4	proms	0	good	no
u5.bin	256	526cf9d3	eb779d70f2507d0f26d225ac8f5de8f2243599ca	proms	100	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	snsnd	SN76489	3000000
audio	aysnd	YM2149 SSG	1500000

device_ref

tag	name
:maincpu	z80
:ppi8255_0	i8255
:ppi8255_1	i8255
:ppi8255_2	i8255
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:nvram	nvram
:mono	speaker
:snsnd	sn76489
:aysnd	ym2149
:hopper	coin_hopper

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		9		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:IN0
:IN1
:IN2
:IN3
:IN4
:hopper:TEST

dipswitch

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	no
Cocktail	1	yes

Hopper Out Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Out Switch	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Active Low	2	yes
Active High	0	no

Pay Out Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Pay Out Mode	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Automatic	0	no
Pay Out Sw	4	yes

'7' in Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
'7' in Double Up Game	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Lose	8	yes
Even	0	no

Double Up Game Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Payout Rate	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80%	16	yes
90%	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	192	no
16	128	no
32	64	no
64	0	yes

Main Game Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Payout Rate	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
55%	0	no
60%	1	no
65%	2	yes
70%	3	no
75%	4	no
80%	5	no
85%	6	no
90%	7	no

Payout Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Limit	DSW2	24

location

name	number	inverted
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	24	no
500	16	no
1000	8	no
Unlimited	0	yes

100 Odds Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
100 Odds Sound	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW3	7

location

name	number	inverted
DSW3	1	no
DSW3	2	no
DSW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5,000	7	no
10,000	6	no
20,000	5	yes
30,000	4	no
40,000	3	no
50,000	2	no
100,000	1	no
Unlimited	0	no

Display Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Credit Limit	DSW3	8

location

name	number	inverted
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Bonus Chance

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Chance	DSW3	16

location

name	number	inverted
DSW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
12-7	0	yes
15-7	16	no

Minimum Bet for Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet for Bonus	DSW3	32

location

name	number	inverted
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	yes
16	32	no

Reel Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reel Speed	DSW3	64

location

name	number	inverted
DSW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	64	no
High	0	yes

Coin A Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Mode	DSW3	128

location

name	number	inverted
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unexchange	128	yes
Exchange	0	no

Key-In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Rate	DSW4	3

location

name	number	inverted
DSW4	1	no
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100	3	yes
120	2	no
130	1	no
140	0	no

Coin A Rate & Hopper Out

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate & Hopper Out	DSW4	12

location

name	number	inverted
DSW4	3	no
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	4	no
1 Coin/5 Credits	12	no
1 Coin/10 Credits	8	yes

Coin D Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Rate	DSW4	48

location

name	number	inverted
DSW4	5	no
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/5 Credits	16	no
1 Coin/10 Credits	0	no
1 Coin/25 Credits	32	no
1 Coin/50 Credits	48	yes

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW4	192

location

name	number	inverted
DSW4	7	no
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10 Coins/1 Credit	192	no
10 Coins/1 Credit	128	no
2 Coins/1 Credit	64	no
1 Coin/1 Credit	0	yes

clones

name	description
cbaai	Cherry Bonus (A.A.I. bootleg)
