CDTV (PAL) - mame (0284) machine

MAME: 0284 - Released: 2025-12-30T16:33:58 - Machines: 49538 - rom: 367487 - disk: 1392

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cdtv	amiga/amiga.cpp		no	no	no	yes	CDTV (PAL)	1990	Commodore

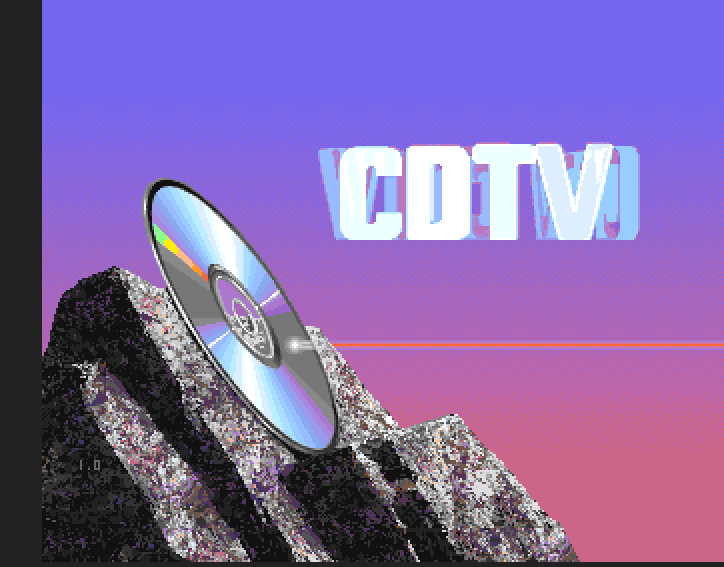

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
cdtv	33929	22/01/2026 15:10:38	724	567	96	96	0	Format24bppRgb	305:MAME 0.284 (mame0284)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	724	567	50.000282	28375160	908	184	908	625	58	625	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
391008-01.u34	131072	791cb14b	277a1778924496353ffe56be68063d2a334360e4	cdrom	0	good	no
391009-01.u35	131072	accbbc2e	41b06d1679c6e6933c3378b7626025f7641ebc5c	cdrom	1	good	no
315093-02.u13	262144	c4f0f55f	891e9a547772fe0c6c19b610baf8bc4ea7fcb785	kickstart	0	good	no
252609-02.u75	2048			rcmcu	0	nodump	no
v1.3-1990-10-01	4096	3c7cb7bb	958e799897ac044fcc0f0c74c3cb5d83f3edd0c7	rcmcu	0	good	no
252608-01.u62	8192			lcd	0	nodump	no
v1.20-1990-09-26	8192	9d69c439	74354818ffc4d897801be705ae223717f522f8d4	lcd	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	7093790
cpu	cia_0	MOS 8520 CIA	709379
cpu	cia_1	MOS 8520 CIA	709379
cpu	kbd:a2000_us:mcu	MOS Technology 6500/1	3000000
cpu	u75	MOS Technology 6502	3000000
audio	speaker	Speaker
audio	paula	MOS 8364 "Paula"	3546895
audio	fdc:0:35dd:flopsndout	Speaker
audio	fdc:0:35dd:floppysound	Floppy sound	44100
audio	cdrom	CR-511-B CD-ROM drive
audio	cdrom:cdda	CD/DA	44100

softwarelist

tag	name	status
wb_list	amiga_workbench	original
hardware_list	amiga_hardware	original
apps_list	amiga_apps	original
flop_list	amiga_flop	original
ocs_list	amigaocs_flop	original
demos_list	amiga_demos	original
amigacd_list	amiga_cd	original
photocd_list	photo_cd	compatible
cd_list	cdtv	original

device_ref

tag	name
:maincpu	m68000
:screen	screen
:palette	palette
:cia_0	mos8520
:cia_1	mos8520
:speaker	speaker
:paula	paula_8364
:fdc	paula_fdc
:fdc:0	floppy_connector
:fdc:0:35dd	floppy_35_dd
:fdc:0:35dd:flopsndout	speaker
:fdc:0:35dd:floppysound	flopsnd
:fdc:1	floppy_connector
:fdc:2	floppy_connector
:fdc:3	floppy_connector
:copper	agnus_copper
:rs232	rs232
:centronics	centronics
:centronics:printer	centronics_printer
:centronics:printer:printer	printer_image
:cent_data_in	input_buffer
:cent_data_out	output_latch
:wb_list	software_list
:hardware_list	software_list
:apps_list	software_list
:flop_list	software_list
:ocs_list	software_list
:demos_list	software_list
:amigacd_list	software_list
:photocd_list	software_list
:kbd	amiga_kbd
:kbd:a2000_us	a2000kbd_us
:kbd:a2000_us:mcu	m6500_1
:kbrst	a1000kbrst
:u75	m6502
:overlay	address_map_bank
:chipset	address_map_bank
:sram	nvram
:memcard	nvram
:u61	msm6242
:u36	amiga_dmac_rev2
:u32	tpi6525
:cdrom	cr511b
:cdrom:cdda	cdda
:cd_list	software_list

sound

channels
2

feature

type	status	overall
graphics	imperfect

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:35dd	floppy_3_5	floppydisk	flop
printout	centronics:printer:printer		printout	prin
cdrom	cdrom	cdrom	cdrom	cdrm

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:35dd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, adf, ipf
printout	centronics:printer:printer		prn
cdrom	cdrom	cdrom	chd, cue, toc, nrg, gdi, iso, cdr

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta
joy	1	3	8	no
mouse	1			no	0	255	100	5
keyboard	1	94		no
joy	2	3	8	no
mouse	2			no	0	255	100	5

port, analog

port_tag	analog_masks
:cia_0_port_a
:input
:joy_0_dat
:joy_1_dat
:kbd:a2000_us:COLS
:kbd:a2000_us:META
:kbd:a2000_us:ROW0
:kbd:a2000_us:ROW1
:kbd:a2000_us:ROW10
:kbd:a2000_us:ROW11
:kbd:a2000_us:ROW12
:kbd:a2000_us:ROW13
:kbd:a2000_us:ROW14
:kbd:a2000_us:ROW2
:kbd:a2000_us:ROW3
:kbd:a2000_us:ROW4
:kbd:a2000_us:ROW5
:kbd:a2000_us:ROW6
:kbd:a2000_us:ROW7
:kbd:a2000_us:ROW8
:kbd:a2000_us:ROW9
:p1_joy
:p1_mouse_x	255
:p1_mouse_y	255
:p2_joy
:p2_mouse_x	255
:p2_mouse_y	255
:potgo

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	35dd	floppy_35_dd	yes
fdc:1	35dd	floppy_35_dd	no
fdc:2	35dd	floppy_35_dd	no
fdc:3	35dd	floppy_35_dd	no
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	mz1p16	mz1p16	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
kbd	a2000_no	a2000kbd_no	no
kbd	a2000_se	a2000kbd_se	no
kbd	a2000_de	a2000kbd_de	no
kbd	a2000_us	a2000kbd_us	yes
kbd	a1000_us	a1000kbd_us	no
kbd	a2000_gb	a2000kbd_gb	no
kbd	a2000_g80_de	a2000kbd_g80_de	no
kbd	a1000_de	a1000kbd_de	no
kbd	a1000_dk	a1000kbd_dk	no
kbd	a1000_gb	a1000kbd_gb	no
kbd	a1000_fr	a1000kbd_fr	no
kbd	a2000_dk	a2000kbd_dk	no
kbd	a1000_it	a1000kbd_it	no
kbd	a2000_ch	a2000kbd_ch	no
kbd	a1000_se	a1000kbd_se	no
kbd	a2000_fr	a2000kbd_fr	no
kbd	a1200_us	a1200kbd_rb	no
kbd	a2000_g80_se	a2000kbd_g80_se	no
kbd	a2000_es	a2000kbd_es	no
kbd	a2000_g80_dk	a2000kbd_g80_dk	no
kbd	a2000_it	a2000kbd_it	no
kbd	a2000_g80_us	a2000kbd_g80_us	no
kbd	a2000_g80_gb	a2000kbd_g80_gb	no

configuration

Game Port 0 Device

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Port 0 Device	input	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mouse	0	yes
Joystick	16	no

Game Port 1 Device

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Port 1 Device	input	32

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mouse	0	no
Joystick	32	yes
