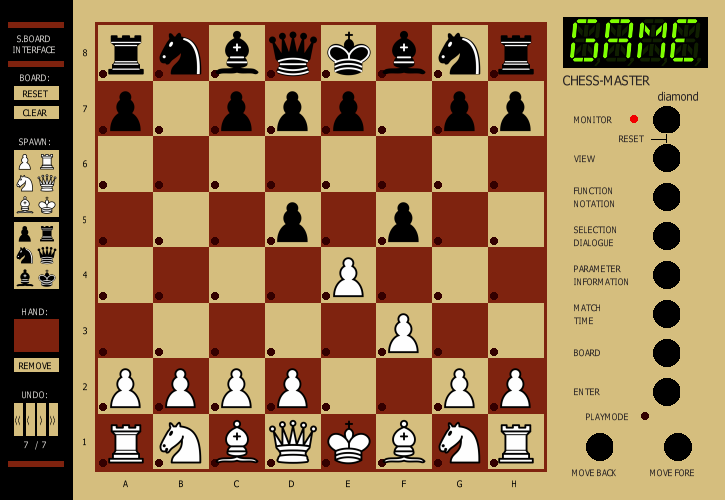

Chess-Master Diamond - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
chessmstdm	ddr/chessmstdm.cpp		no	no	no	yes	Chess-Master Diamond	1987	VEB Mikroelektronik "Karl Marx" Erfurt

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
002.d224	8192	bed56fef	dad0f8ddbd9b10013a5bdcc09ee6db39cfb26b78	maincpu	0	good	no
201.d225	8192	c9dc7f29	a3e1b66d0e15ffe83a9165d15c4a83013852c2fe	maincpu	2000	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	beeper	Beep	1000

softwarelist

tag	name	status	filter
cart_list	chessmstdm	original

device_ref

name
z80
clock
z80pio
z80pio
sensorboard
pwm_display
pwm_display
speaker
beep
generic_cartslot
software_list

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cartridge	cartslot	chessmstdm_cart			cartridge	cart

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cartridge	cartslot	chessmstdm_cart			bin

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		10		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
cartslot

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
