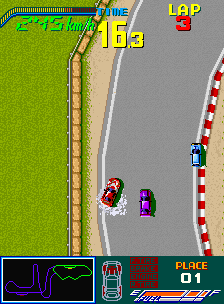

Chequered Flag - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
chqflag	konami/chqflag.cpp		no	no	no	yes	Chequered Flag	1988	Konami

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	90	304	224	59.185606	6000000	384	0	304	264	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
717e10	262144	72fc56f6	433ea9a33f0230e046c731c70060f6a38db14ac7	maincpu	0	good	no
717h02	65536	f5bd4e78	7bab02152d055a6c3a322c88e7ee0b85a39d8ef2	maincpu	40000	good	no
717e01	32768	966b8ba8	ab7448cb61fa5922b1d8ae5f0d0f42d734ed4f93	audiocpu	0	good	no
717e04	524288	1a50a1cc	bc16fab84c637ed124e37b115ddc0149560b727d	k051960	0	good	no
717e05	524288	46ccb506	3ed1f54744fc5cdc0f48e42f250c366267a8199a	k051960	2	good	no
717e06.n16	131072	1ec26c7a	05b5b522c5ebf5d0a71a7fc39ec9382008ef33c8	k051316_1	0	good	no
717e07.l20	262144	b9a565a8	a11782f7336e5ad58a4c6ea81f2eeac35d5e7d0a	k051316_2	0	good	no
717e08.l22	262144	b68a212e	b2bd121a43552c3ade528ac763a0df40c3e648e0	k051316_2	40000	good	no
717e11.n20	262144	ebb171ec	d65d4a6b169ce03e4427b2a397484634f938236b	k051316_2	80000	good	no
717e12.n22	262144	9269335d	af298c8cff50d707d6abc806065f8e931f975dc0	k051316_2	c0000	good	no
717e03	524288	ebe73c22	fad3334e5e91bf8d11b74ffdbbfd57567e6f6f8c	k007232_1	0	good	no
717e09	524288	d74e857d	00c851c857650d67fc4caccea4461d99be4acb3c	k007232_2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	KONAMI CPU	12000000
cpu	audiocpu	Zilog Z80	3579545
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	k007232_1	Konami 007232 PCM Controller	3579545
audio	k007232_2	Konami 007232 PCM Controller	3579545

device_ref

name
konami_cpu
z80
watchdog
adc0804
screen
palette
k051960
k051316
k051316
k051733
speaker
generic_latch_8
generic_latch_8
ym2151
k007232
k007232

sound

channels
1

feature

type	status	overall
palette	imperfect
sound	imperfect

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
paddle		2		no	96	160	100	3
pedal				no	56	160	100	9

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:IN0
:IN1
:IN2
:IN3	255
:IN4	255

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	2	no
3 Coins/1 Credit	5	no
2 Coins/1 Credit	8	no
3 Coins/2 Credits	4	no
4 Coins/3 Credits	1	no
1 Coin/1 Credit	15	yes
3 Coins/4 Credits	3	no
2 Coins/3 Credits	7	no
1 Coin/2 Credits	14	no
2 Coins/5 Credits	6	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
1 Coin/7 Credits	9	no
Free Play	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	32	no
3 Coins/1 Credit	80	no
2 Coins/1 Credit	128	no
3 Coins/2 Credits	64	no
4 Coins/3 Credits	16	no
1 Coin/1 Credit	240	yes
3 Coins/4 Credits	48	no
2 Coins/3 Credits	112	no
1 Coin/2 Credits	224	no
2 Coins/5 Credits	96	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
1 Coin/7 Credits	144	no
Invalid	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	96

location

name	number	inverted
SW2	6	no
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	96	no
Normal	64	yes
Difficult	32	no
Very Difficult	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	IN0	128

location

name	number	inverted
SW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	IN1	32

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Title

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Title	IN1	64

location

name	number	inverted
SW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Chequered Flag	64	yes
Checkered Flag	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	IN1	128

location

name	number	inverted
SW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
