name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
clas1812	pinball/gts3.cpp	genpin	no	no	yes	yes	Class of 1812	1991	Gottlieb

snap

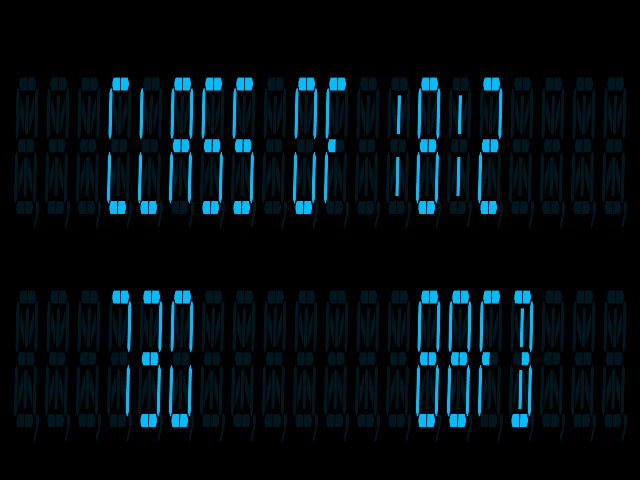

Class of 1812 png snap

Class of 1812 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
clas1812	17152	19/03/2026 21:45:16	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	33845b4ffab6fa6e838e2e3c4b1259b14cd1e21f

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
gprom.bin	65536	564349bf	458eb2ece924a20d309dce7117c94e75b4a21fd7	maincpu	0	good	no
drom1.bin	32768	3863a9df	1759abbfcb127a6909f70845f41daf3ac8e80cef	p7sound:audiocpu	8000	good	no
arom1.bin	131072	357b0069	870b0b84c6b3754f89b4e4e0b4594613ef589204	p7sound:oki	0	good	no
arom2.bin	131072	5be02ff7	51af73a26bbed0915ec57cde8f9cac552978b2dc	p7sound:oki	20000	good	no
yrom1.bin	32768	4ecf6ecb	92469ccdedcc8e61edcddaedd688ef990a9ad5ad	p7sound:speechcpu	8000	good	no

chip

type	tag	name	clock
cpu	maincpu	WDC W65C02	2000000
cpu	p7sound:audiocpu	MOS Technology 6502	2000000
cpu	p7sound:speechcpu	MOS Technology 6502	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	p7sound	Gottlieb Sound pin. 7
audio	p7sound:dac	AD7528 DAC
audio	p7sound:dacvol	AD7528 DAC
audio	p7sound:ay1	AY-3-8913 PSG	2000000
audio	p7sound:ay2	AY-3-8913 PSG	2000000
audio	p7sound:ym2151	YM2151 OPM	4000000
audio	p7sound:oki	OKI MSM6295 ADPCM	1000000

device_ref

tag	name
:maincpu	w65c02
:nvram	nvram
:u4	r65c22
:u5	r65c22
:irq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:mono	speaker
:p7sound	gotsndp7
:p7sound:audiocpu	m6502
:p7sound:speechcpu	m6502
:p7sound:dac	ad7528
:p7sound:dacvol	ad7528
:p7sound:ay1	ay8913
:p7sound:ay2	ay8913
:p7sound:ym2151	ym2151
:p7sound:oki	okim6295

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		63		no

port, analog

port_tag	analog_masks
:TTS
:X0
:X1
:X10
:X11
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:X9
