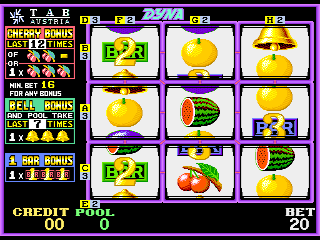

Cuty Line Limited (ver.1.30) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cll	igs/goldstar.cpp		no	no	no	yes	Cuty Line Limited (ver.1.30)	1991	Dyna / TAB Austria

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	240	60.000000	7864320	512	0	512	256	8	248	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
cll_80_t.bin	65536	62d386db	9a061e80d78ed13a6dae59e447c138b0f5e5d892	maincpu	0	good	no
cm_73.bin	32768	6bc1d96a	9eeae92f171e99bedadd5a681250d3dcaa77d5ee	gfx1	0	good	no
cm_63.bin	32768	5e03fe51	74aefdab3d2008555a740e73d7b8a0a60d2902c3	gfx1	8000	good	no
cm_53.bin	32768	36131408	5e1dee61c9e4bd75e63a441eedc49604707296a1	gfx1	10000	good	no
cm_4.bin	32768	0dbabaa2	44235b19dac1c996e2166672b03f6e3888ecbefa	gfx2	0	good	no
cm_3.bin	32768	dc77d04a	d8656130cde54d4bb96307899f6d607867e49e6c	gfx2	8000	good	no
cm_1.bin	32768	71bdab69	d2c594ed88d6368df15b623c48eecc1c219b839e	gfx2	10000	good	no
cm_2.bin	32768	201d1e90	c3c5224646b777f98ee35d146136788029b1782d	gfx2	18000	good	no
9.bin	262144	92342276	f9436752f2ec67cf873fd01c729c7c113dc18be0	user1	0	baddump	no
p1.bin	256	ac529f04	5bc92e50c85bb23e609172cc15c430ddea7fdcb5	proms	0	baddump	no
p2.bin	256	3febce95	c7c0fec0fb024ebf7d7365a09d28ba3d0037b0b4	proms	100	baddump	no
p3.bin	256	99dbdf19	3680335406f63289f8d9a81b4cd163e4aa0c14d4	proms	200	baddump	no
p4.bin	256	72212427	e87a91f28284313c706ebb8175a3586780636e31	proms2	0	baddump	no
pld1.bin	260			plds	0	nodump	no
pld2.bin	260			plds	200	nodump	no
pld3.bin	260			plds	400	nodump	no
pld4.bin	260			plds	600	nodump	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

name
z80
i8255
screen
gfxdecode
palette
nvram
speaker
ay8910

sound

channels
1

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
gambling		9		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Hopper Out Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Out Switch	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Active Low	2	yes
Active High	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Payout Switch	4	no
Automatic	0	yes

'7' In Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
'7' In Double Up Game	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Even	8	no
Loss	0	yes

Double Up Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Pay Rate	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80%	0	yes
90%	16	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Bet Max

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bet Max	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	64	no
32	128	no
64	192	yes

Main Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Pay Rate	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
45%	7	no
50%	6	no
55%	5	no
60%	4	no
65%	3	no
70%	2	no
75%	1	no
80%	0	yes

Hopper Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Limit	DSW2	24

location

name	number	inverted
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	24	yes
500	16	no
1000	8	no
Unlimited	0	no

100+ Odds Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
100+ Odds Sound	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Key In Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Type	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A-Type	64	yes
B-Type	0	no

Center Super 7 Bet Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Center Super 7 Bet Limit	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unlimited	128	no
Limited	0	yes

Key In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key In Rate	DSW3	3

location

name	number	inverted
DSW3	1	no
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/10 Credits	0	no	DSW2	64	eq	64
1 Coin/20 Credits	1	no	DSW2	64	eq	64
1 Coin/50 Credits	2	no	DSW2	64	eq	64
1 Coin/100 Credits	3	yes	DSW2	64	eq	64
1 Coin/5 Credits	0	no	DSW2	64	eq	0
1 Coin/10 Credits	1	no	DSW2	64	eq	0
1 Coin/25 Credits	2	no	DSW2	64	eq	0
1 Coin/50 Credits	3	yes	DSW2	64	eq	0

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW3	12

location

name	number	inverted
DSW3	3	no
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	4	no
1 Coin/5 Credits	8	no
1 Coin/10 Credits	12	yes

Coin D Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Rate	DSW3	48

location

name	number	inverted
DSW3	5	no
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5 Coins/1 Credit	48	yes	DSW4	16	eq	16
2 Coins/1 Credit	32	no	DSW4	16	eq	16
1 Coin/1 Credit	16	no	DSW4	16	eq	16
1 Coin/2 Credits	0	no	DSW4	16	eq	16
1 Coin/5 Credits	0	no	DSW4	16	eq	0
1 Coin/10 Credits	16	no	DSW4	16	eq	0
1 Coin/25 Credits	32	no	DSW4	16	eq	0
1 Coin/50 Credits	48	yes	DSW4	16	eq	0

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW3	192

location

name	number	inverted
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	64	no
1 Coin/5 Credits	128	no
1 Coin/10 Credits	192	yes

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW4	7

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5,000	7	yes
10,000	6	no
20,000	5	no
30,000	4	no
40,000	3	no
50,000	2	no
100,000	1	no
Unlimited	0	no

Display Of Payout Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Of Payout Limit	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Type Of Coin D

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Type Of Coin D	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
C-Type	16	yes
D-Type	0	no

Min. Bet For Bonus Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min. Bet For Bonus Play	DSW4	32

location

name	number	inverted
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	32	yes

Reel Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reel Speed	DSW4	64

location

name	number	inverted
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	64	yes
High	0	no

Hopper Out By Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Out By Coin A	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Display Of Doll On Demo

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Of Doll On Demo	DSW5	1

location

name	number	inverted
DSW5	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Coin In Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin In Limit	DSW5	6

location

name	number	inverted
DSW5	2	no
DSW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1,000	6	yes
5,000	4	no
10,000	2	no
20,000	0	no

Condition For 3 Kind Of Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Condition For 3 Kind Of Bonus	DSW5	24

location

name	number	inverted
DSW5	4	no
DSW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
12-7-1	24	yes
9-5-1	16	no
6-3-1	8	no
3-2-1	0	no

Display Of Doll At All Fr. Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Of Doll At All Fr. Bonus	DSW5	32

location

name	number	inverted
DSW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	32	yes
High	0	no

Skill Stop

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Skill Stop	DSW5	64

location

name	number	inverted
DSW5	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	128

location

name	number	inverted
DSW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
