Clutch Hitter (US) (FD1094 317-0176)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cltchitr	sega/segas18.cpp		no	no	no	yes	Clutch Hitter (US) (FD1094 317-0176)	1991	Sega

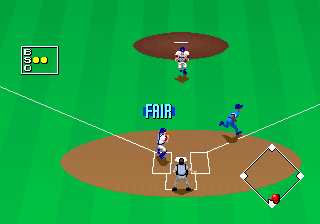

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
cltchitr	10769	29/12/2025 11:31:18	320	224	96	96	0	Format24bppRgb	305:MAME 0.129 (Jan 4 2009)	c9eaa46b3264f250b60210daf7b1b557c5101d53

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	57.230000	5128036	342	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
epr-13794.a4	262144	c8d80233	69cdbb989f580abbb006820347becf8d233fa773	maincpu	0	good	no
epr-13795.a6	262144	b0b60b67	ee3325ddb7461008f556c1696157a766225b9ef5	maincpu	1	good	no
epr-13784.a5	262144	80c8180d	80e72ab7d97714009fd31b3d50176af84b0dcdb7	maincpu	80000	good	no
epr-13786.a7	262144	3095dac0	20edce74b6f2a82a3865613e601a0e212615d0e4	maincpu	80001	good	no
317-0176.key	8192	9b072430	3bc1c7a6d71b4351a42d85e68e70715a7659c096	maincpu:key	0	good	no
mpr-13773.c1	524288	3fc600e5	8bec4ecf6a4e4b38d13133960036a5a4800a668e	tiles	0	good	no
mpr-13774.c2	524288	2411a824	0e383ccc4e0830ffb395d5102e2950610c147007	tiles	80000	good	no
mpr-13775.c3	524288	cf527bf6	1f9cf1f0e92709f0465dc97ebbdaa715a419f7a7	tiles	100000	good	no
mpr-13779.c10	524288	c707f416	e6a9d89849f7f1c303a3ca29a629f81397945a2d	sprites	1	good	no
mpr-13787.a10	524288	f05c68c6	b6a0535b6c734a0c89fdb6506c32ffe6ab3aa8cd	sprites	0	good	no
mpr-13780.c11	524288	a4c341e0	15a0b5a42b56465a7b7df98968cc2ed177ce6f59	sprites	200001	good	no
mpr-13788.a11	524288	0106fea6	e16e2a469ecbbc704021dee6264db30aa0898368	sprites	200000	good	no
mpr-13781.c12	524288	f33b13af	d3eb64dcf12d532454bf3cd6c86528c0f11ee316	sprites	400001	good	no
mpr-13789.a12	524288	09ba8835	72e83dd1793a7f4b2b881e71f262493e3d4992b3	sprites	400000	good	no
epr-13793.c7	524288	a3d31944	44d17aa0598eacfac4b12c8955fd1067ca09abbd	soundcpu	0	good	no
epr-13792.c6	524288	808f9695	d50677d20083ad56dbf0864db05f76f93a4e9eba	soundcpu	80000	good	no
epr-13791.c5	524288	35c16d80	7ed04600748c5efb63e25f066daa163e9c0d8038	soundcpu	100000	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1094 Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	8000000
audio	gen_vdp	Sega 315-5313 Megadrive VDP	15000000
audio	gen_vdp:snsnd	Sega VDP PSG	1000000
audio	mono	Speaker
audio	ym1	YM3438 OPN2C	8000000
audio	ym2	YM3438 OPN2C	8000000
audio	rfsnd	Ricoh RF5C68	10000000

device_ref

tag	name
:maincpu	fd1094
:soundcpu	z80
:nvram	nvram
:mapper	sega_315_5195
:io	315_5296
:gen_vdp	sega315_5313
:gen_vdp:palette_lut	palette
:gen_vdp:snsnd	segapsg
:gen_vdp:gfx_palette	palette
:gen_vdp:gfx_palette_shadow	palette
:gen_vdp:gfx_palette_hilight	palette
:scantimer	timer
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:sprites	sega_sys16b_sprite
:segaic16vid	segaic16_video
:mono	speaker
:ym1	ym3438
:ym2	ym3438
:rfsnd	rf5c68

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:COINAGE
:DSW
:P1
:P2
:P3
:SERVICE

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	COINAGE	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
3 Coins/4 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	COINAGE	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
3 Coins/4 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

2 Credits to Start

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
2 Credits to Start	DSW	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Game Time P1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Time P1	DSW	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default
2 Credits 18 Outcounts 14 Min.	4	no
1 Credit 6 Outcounts 7 Min.	0	no
1 Credit 12 Outcounts 12 Min.	8	no
1Credit 6 Outcounts 8M./2Credits 18 Outcounts 14M.	12	yes

Game Time P2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Time P2	DSW	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default
4 Credits 18 Outcounts 16 Min.	16	no
2 Credits 6 Outcounts 8 Min.	0	no
2 Credits 12 Outcounts 14 Min.	32	no
2Credits 6 Outcounts 8M./4Credits 18 Outcounts 16M.	48	yes

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default
Easiest	64	no
Easy	128	no
Normal	192	yes
Hard	0	no

clones

name	description
cltchitrbl	Clutch Hitter (bootleg)
cltchitrjd	Clutch Hitter (Japan) (bootleg of FD1094 317-0175 set)
cltchitrj	Clutch Hitter (Japan) (FD1094 317-0175)
cltchitrd	Clutch Hitter (US) (bootleg of FD1094 317-0176 set)
