Cherry Master '97 (V1.7, set 1) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cmast97	igs/goldstar.cpp		no	no	no	yes	Cherry Master '97 (V1.7, set 1)	1996	Dyna

snap

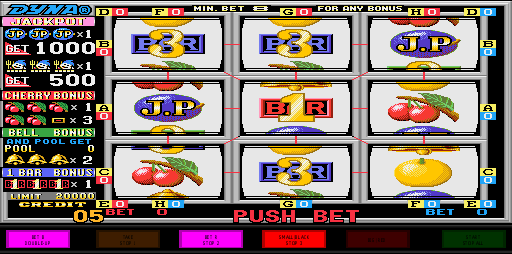

Cherry Master '97 (V1.7, set 1) png snap

Cherry Master '97 (V1.7, set 1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
cmast97	15841	20/01/2026 16:28:35	512	254	96	96	0	Format24bppRgb	305:MAME 0.284 (mame0284)	7be7d17e8ce564d0b8e577dd0e80485718902759

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
c97.f10	65536	1416439f	a1e44e5dc67dfb74c5651a5f9da822a9e6c7df6f	maincpu	0	good	no
c97.d9	524288	c2c14738	dd378cb77a7214ffe5fd9ba1dcbc54f6802b0e41	gfx	0	good	no
82s135.c8	256	4b715969	9429dc8698f4ff9195e5e975e62546b7b7e2f856	proms	0	good	no
82s135.c9	256	85883486	adcee60f6fc1e8a75c529951df9e5e1ee277e131	proms	100	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

tag	name
:maincpu	z80
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:nvram	nvram
:mono	speaker
:aysnd	ay8910
:hopper	ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		9		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2
:hopper:TEST

dipswitch

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	1

location

name	number	inverted
DSW1	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Double Up Game Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Type	DSW1	2

location

name	number	inverted
DSW1	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Red / Black	2	no
Big / Small	0	yes

Double Up <7> Value

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up <7> Value	DSW1	4

location

name	number	inverted
DSW1	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Even	4	yes
Loss	0	no

Double Up Girl Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Girl Display	DSW1	8

location

name	number	inverted
DSW1	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Payout Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Speed	DSW1	16

location

name	number	inverted
DSW1	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Payout SW	16	yes
Automatic	0	no

Spinning Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Spinning Speed	DSW1	32

location

name	number	inverted
DSW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	0	no
High	32	yes

Hopper Polarity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Polarity	DSW1	64

location

name	number	inverted
DSW1	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Active High (NO)	64	yes
Active Low (NC)	0	no

Sound Over 100 Odds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sound Over 100 Odds	DSW1	128

location

name	number	inverted
DSW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Payout Ratio

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Ratio	DSW2	7

location

name	number	inverted
DSW2	1	yes
DSW2	2	yes
DSW2	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
55%	7	no
60%	6	no
65%	5	no
70%	4	yes
75%	3	no
80%	2	no
85%	1	no
90%	0	no

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW2	24

location

name	number	inverted
DSW2	4	yes
DSW2	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	24	no
16	16	no
32	8	no
64	0	yes

Bet Limit For Any Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bet Limit For Any Bonus	DSW2	32

location

name	number	inverted
DSW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	32	yes
16	0	no

Key-In Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Type	DSW2	64

location

name	number	inverted
DSW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A	64	yes
B	0	no

Coin D Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Type	DSW2	128

location

name	number	inverted
DSW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A	128	yes
B	0	no

Key-In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Rate	DSW3	3

location

name	number	inverted
DSW3	1	yes
DSW3	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/10 Credits	3	no	DSW2	64	eq	64
1 Coin/20 Credits	2	no	DSW2	64	eq	64
1 Coin/50 Credits	1	no	DSW2	64	eq	64
1 Coin/100 Credits	0	yes	DSW2	64	eq	64
1 Coin/5 Credits	3	no	DSW2	64	eq	0
1 Coin/10 Credits	2	no	DSW2	64	eq	0
1 Coin/25 Credits	1	no	DSW2	64	eq	0
1 Coin/50 Credits	0	yes	DSW2	64	eq	0

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW3	12

location

name	number	inverted
DSW3	3	yes
DSW3	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	12	yes
1 Coin/2 Credits	8	no
1 Coin/5 Credits	4	no
1 Coin/10 Credits	0	no

Coin D Rate & Hopper Out

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Rate & Hopper Out	DSW3	48

location

name	number	inverted
DSW3	5	yes
DSW3	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/5 Credits	48	yes	DSW2	128	eq	128
1 Coin/10 Credits	32	no	DSW2	128	eq	128
1 Coin/25 Credits	16	no	DSW2	128	eq	128
1 Coin/50 Credits	0	no	DSW2	128	eq	128
5 Coins/1 Credit	0	no	DSW2	128	eq	0
2 Coins/1 Credit	16	no	DSW2	128	eq	0
1 Coin/1 Credit	32	no	DSW2	128	eq	0
1 Coin/2 Credits	48	yes	DSW2	128	eq	0

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW3	192

location

name	number	inverted
DSW3	7	yes
DSW3	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	192	no
1 Coin/2 Credits	128	no
1 Coin/5 Credits	64	yes
1 Coin/10 Credits	0	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW4	7

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5,000	7	no
10,000	6	no
20,000	5	yes
30,000	4	no
40,000	3	no
50,000	2	no
100,000	1	no
Unlimited	0	no

Coin/Key-In Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin/Key-In Limit	DSW4	24

location

name	number	inverted
DSW4	4	no
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1,000	24	no
5,000	16	yes
10,000	8	no
20,000	0	no

Limit For Hopper Pay Out

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Limit For Hopper Pay Out	DSW4	96

location

name	number	inverted
DSW4	6	no
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	96	no
500	64	no
1,000	32	no
Unlimited	0	yes

Coin A For Exchange

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A For Exchange	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Not Exchange	128	yes
Exchange	0	no

Control Panel Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Control Panel Type	DSW5	3

location

name	number	inverted
DSW5	1	no
DSW5	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Type D	3	no
Type C	2	no
Type B	1	no
Type A	0	yes

Skill Stop

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Skill Stop	DSW5	4

location

name	number	inverted
DSW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	no
On	0	yes

Use Start for Stop All

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Use Start for Stop All	DSW5	8

location

name	number	inverted
DSW5	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Bonus Games Entry Condition

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Games Entry Condition	DSW5	16

location

name	number	inverted
DSW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
6-3-1	16	no
6-2-1	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	32

location

name	number	inverted
DSW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Jackpot Initial Base / Max

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot Initial Base / Max	DSW5	64

location

name	number	inverted
DSW5	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1000 / 3000	64	no
1000 / 2000	0	yes

Joker Initial Base / Max

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Joker Initial Base / Max	DSW5	128

location

name	number	inverted
DSW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1000 / 2000	128	no
500 / 2000	0	yes

clones

name	description
cmast97i	Cheri Mondo '97 (V1.4I)
cmast97bl16	Cherry Master '97 (v1.6, bootleg)
cmast97a	Cherry Master '97 (V1.7, set 2, no girls)
cmast97b	Cherry Master '97 (V1.7, set 3, no girls)
cmast97bl18	Cherry Master '97 (v1.8, bootleg)
